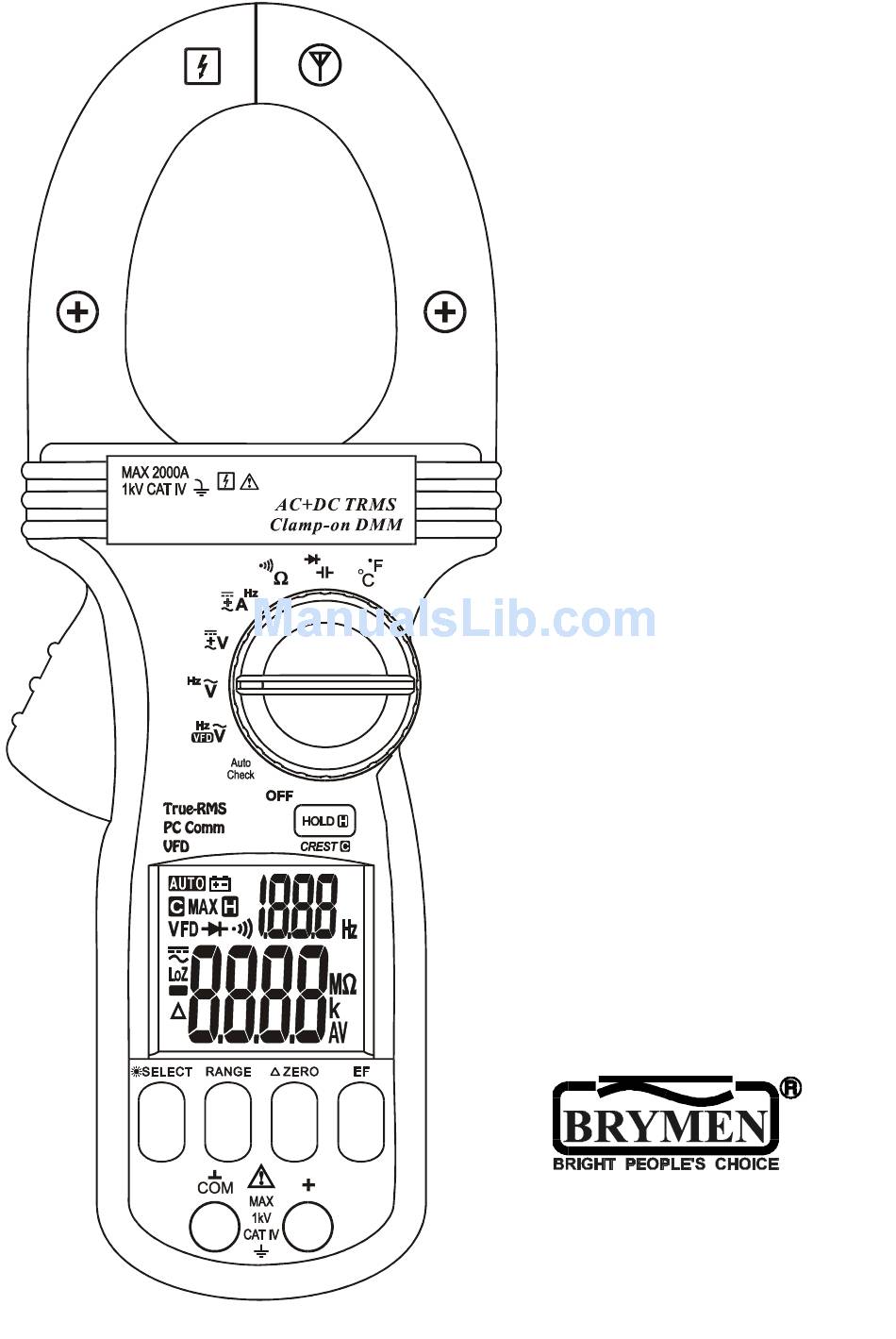

- Page 1 USER'S MANUAL BM195 BM197 Versatile Clamp-on Multimeter Series...
-
Page 2: Terms In This Manual
1) SAFETY This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. If the instrument is used in a manner not specified by the manufacturer, the protection provided by the instrument may be impaired. -
Page 3: International Electrical Symbols
WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential shock hazard to the user. -
Page 4: Product Description
3) PRODUCT DESCRIPTION This user's manual uses only representative model(s) for illustrations. Please refer specification details for function availability to each model. 1) Antenna for Non-Contact EF- Detection Hand/Finger Barrier indicate the limits of safe access of the meter during measurement 3) Rotary-switch Selector to turn the power ON/OFF and... -
Page 5: Operation
4) OPERATION CAUTION: Before and after hazardous voltage measurements, test the voltage function on a known source such as line voltage to determine proper meter functioning. AutoCheck mode This innovative AutoCheck feature automatically selects measurement function of , DCV, or Resistance (Ω Ω Ω Ω ) based on the input via test leads. ●With no input, the meter displays “Auto”... - Page 6 to step through the ranges or functions. *As Hazardous-Alert: When making resistance measurements in AutoCheck mode, an unexpected display of voltage readings alerts you that the object under test is being energized. *Ghost-voltage Buster: Ghost-voltages are unwanted stray signals coupled from adjacent hard signals, which confuse common multimeter voltage measurements.
- Page 7 , DCA & DC+ACA (Model 197 only) functions Input is made through the clamp jaws for non-invasive current measurements. Defaults at ACA Function. Press SELECT button momentarily and release to select the subject functions in sequence.
- Page 8 CAUTION (Application and removal of the Clamp-on meter) For non-invasive current measurements, press the jaw trigger and clamp the jaws around conductor(s) of only one single pole of a circuit for load current measurement. Make sure the jaws are completely closed, or else it will introduce measurement errors. Enclosing conductor(s) of more than one pole of a circuit may result in differential current (like identifying leakage current) measurement.
- Page 10 Temperature function (Model 197 only) Defaults at C (Celsius) readings. Press SELECT button momentarily and release to select F (Fahrenheit) readings. Inputs are made through the test leads terminals. Be sure to insert the banana plug type-K temperature bead probe Bkp60 with correct polarities.
- Page 11 Electric Field EF-Detection In Voltage or Current function, press the EF button momentarily and release to toggle to EF-Detection feature. The meter displays “E.F.” when it is ready. Signal strength is indicated as a series of bar-graph segments on the display together with variable beep tones.
- Page 12 the meter to the PC computer RS232 or USB ports. Press and hold the HOLD button while turning the meter on to enable meter PC-COMM output. Hold The hold feature freezes the display for later view. Press the HOLD button momentarily and release to toggle the hold feature.
-
Page 13: Maintenance Warning
when the meter is not in use Disabling Auto-Power-Off Press and hold the SELECT button while turning the meter on to temporarily disable the Auto-Power-Off (APO) feature. Turn the rotary switch OFF and then back on to resume. 5) MAINTENANCE WARNING To avoid electrical shock, disconnect the meter from any circuit, remove the test leads from the input jacks and turn OFF the meter before opening the case. - Page 14 Loosen the 2 captive screws from the battery cover case. Lift the battery cover case. Replace the batteries. Replace battery cover case. Re-fasten the screws.
- Page 15 GENERAL SPECIFICATIONS Display: 3-5/6 digits 6000 counts. & 3-1/2 digits 1,999 counts for Hz Polarity: Automatic Update Rate: 5 per second nominal; Operating Temperature: 0°C to 40°C Relative Humidity: Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% relative humidity at 40°C Pollution degree: 2 Storage Temperature: -20°C to 60°C, <...
- Page 16 Display Hold; EF-Detection (NCV); Optional Interface capabilities with PC computers Electrical Specifications Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23°C ± 5°C & less than 75% relative humidity. True RMS model 197 voltage accuracies are specified from 5 % to 100 % of range or otherwise specified.
- Page 17 VFD_ACV (with Low Pass Filter ) Capacitance RANGE Accuracy RANGE Accuracy 10Hz ~ 20Hz 2.0%+5d 60.00nF, 600.0nF, 6.000µF 6.000V, 60.00V, 4%+80d 3.5%+5d 60.00µF,600.0uF 600.0V & 1000V 4.0%+5d 2000µF 20Hz ~ 200Hz Accuracies with film capacitor or better 6.000V, 60.00V, 2%+60d Temperature Coefficient: 0.25 x (specified 600.0V &...
- Page 18 ACA Current (Clamp on) Hz Line Level Frequency Sensitivity RANGE Accuracy Function Range (Sine RMS) 50Hz ~ 60Hz 40Hz ~ 1999Hz 200.0A 2.0%+5d 40Hz ~ 1999Hz 0~500A 2.5%+5d 600V 100V 40Hz ~ 1999Hz 500~2000A 3.0%+5d 1000V 600V 40Hz ~ 1999Hz 40Hz ~ 50Hz &...
- Page 19 - NOTE -...
-
Page 20: Limited Warranty
BRYMEN's warranty does not apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling.
