5.5 additional electric connections
Make sure that the mains supply to the unit is disconnected before performing any installation, service, maintenance or
The installation and service of the unit and complete ventilation system must be performed by an authorized installer and in
the units must be earthed.
The units are wired internally from factory.
To connect the the CTRL-DSP to the motherboard use a 4 poles twisted-pair cable: 30m max length.

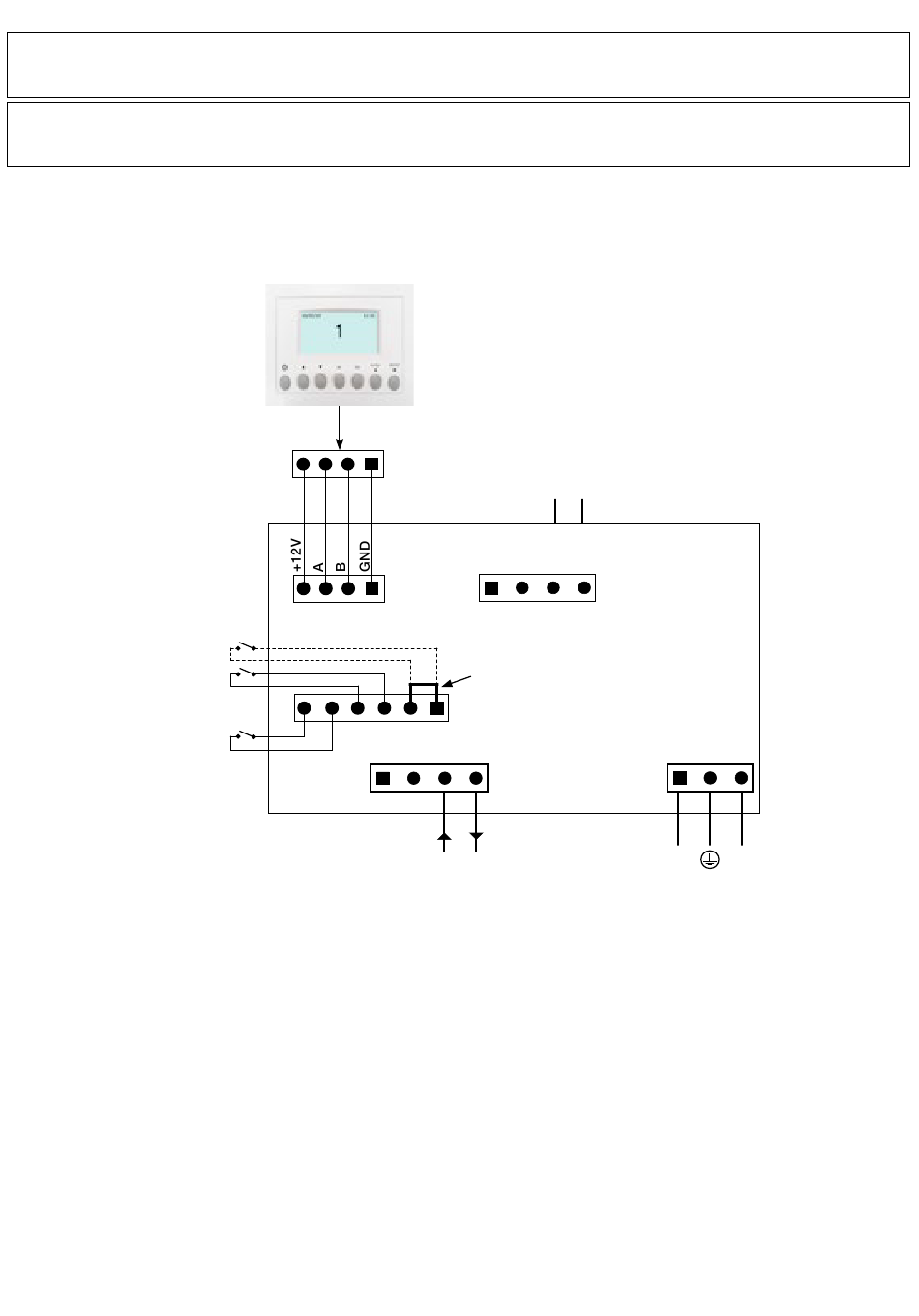

Figures below show the wiring diagram.
(Air Quality e.g. SEN-HY)
Boost momentary
fig. 5.q Electrical connections on the motherboard fitted in the terminal box.
inputs/commands
N°1 AC supply connector.
N°3 on/off inputs (volt-free contacts), N°1 for ambient sensors (named IAQ), N°1 for boost momentary switch (named BST) and
N°1 for remote ON/OFF enable (named HY/S1).
N°1 1-10V analog input (named SLAVE).
N°1 4-pole connector for CTRL-DSP (RS485 plus 12Vdc supply).
outputs
N°1 on/off output for pre-heating/post-heating (relay contact – 250Vac 5A).
accordance with local rules and regulations.
CTRL-DSP
HY/S1 Input
(for remote
ON/OFF enable)
IAQ Input
BST
switch (BST)
WaRninG
electrical work!
WaRninG
S4
- +
DO NOT REMOVE
(see § 7.3 Remote enable)
IAQ HY/S1
HEAT/CD
Heat output
(MAX 250Vac 5A)
09
1-10V
SLAVE input
SLA
- + 1-10V
N
AC power supply
L
