0 8 / 0 0

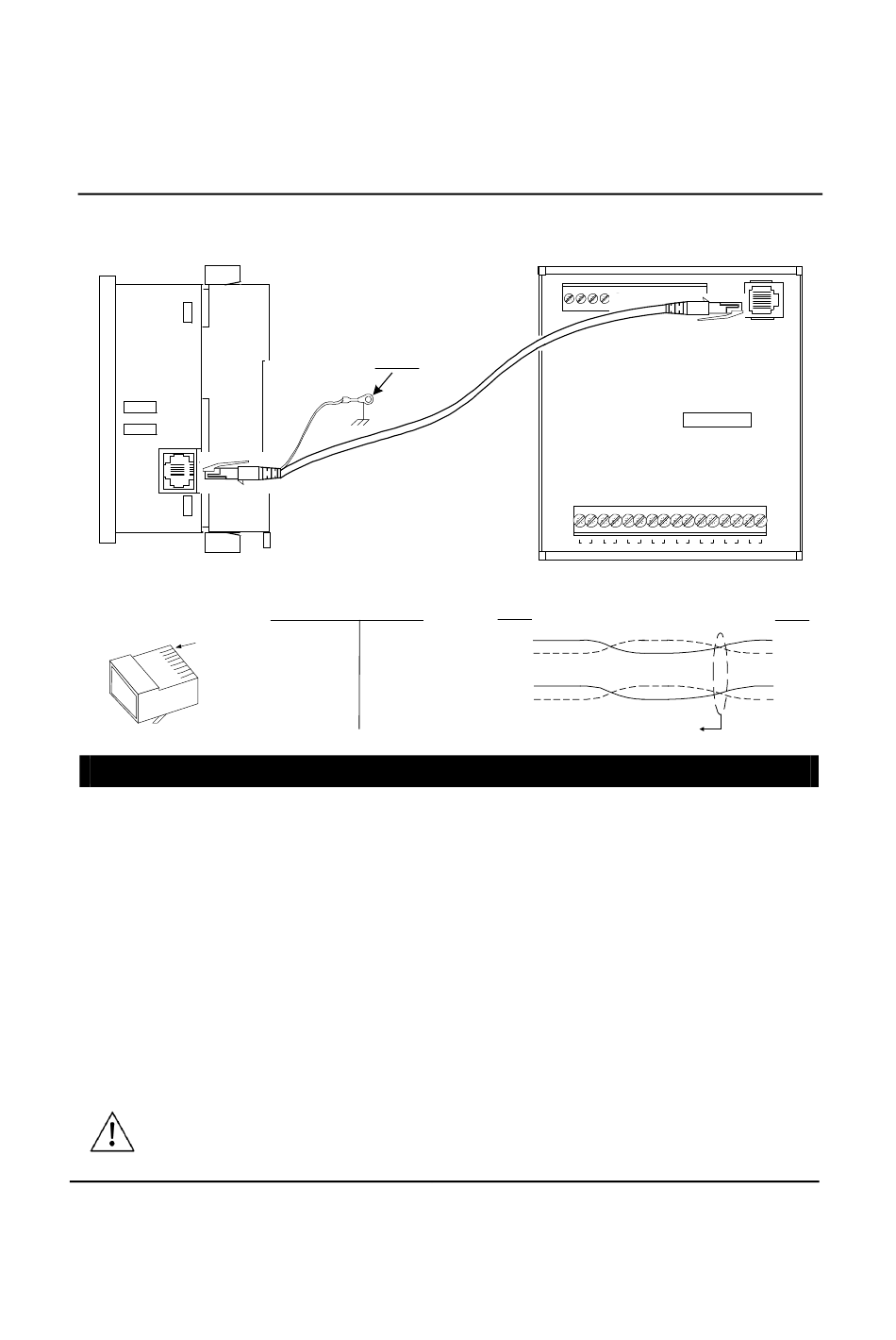

M90
I/O
expansion
port
Shielded RJ45 connector pin-out
Pin #1
Wiring
Wire Size
Use 26-12 AWG wire (0.13 mm

Wiring Considerations

•
Do not use tin, solder or any other substance on the stripped wire that might cause the wire strand to break.
• We recommend that you use crimp terminals for wiring.
• Install at maximum distance from high-voltage cables and power equipment.

General Wiring Procedures

1 Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).
2 Unscrew the terminal to its widest position before inserting a wire.
3 Insert the wire completely into the terminal to ensure that a proper connection
can be made.
4 Tighten enough to keep the wire from pulling free.
To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m (5 kgf·m).
•
Do not touch live wires.
• Double-check all the wiring before turning on the power supply.
Unitronics Industrial Automation Systems
Earth
RJ-45 pin # signal
1 D -
8 D +
2 CK-
4 CK+
3 0V
6 0V
2 2
–3.31 mm ) for all wiring purposes.
EX90-DI 8-RO 8
I / O E x p a n s i o n M o d u l e
EX90-DI8-RO8
24V 0V I0
00 01
Cable description
RJ-45
1
8
2
4
Connect to earth near the M90
I1 I2 I3 I4 I5 I6 I7
EX90-DI8-RO8
02 03 04 05 06 07
RJ-45
1
8
2
4
3
