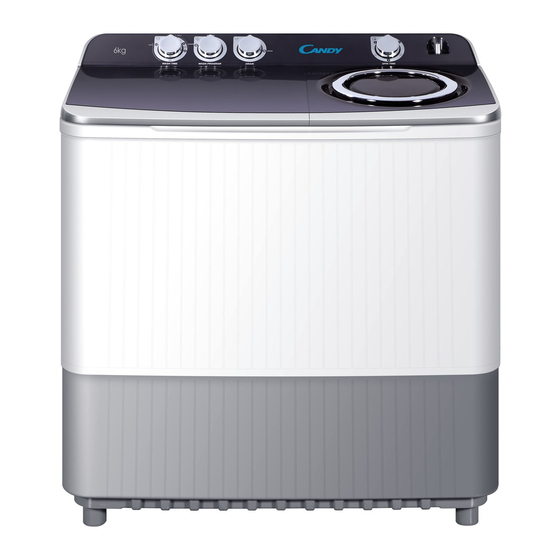

Candy RTT 261WSU-19 User Manual

Twin-tub
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RTT 261WSU-19
RTT 2101WSU-19
RTT 271WS-19
RTT 2111WS-19
0030516070
RTT 261WSU-19/RTT 2101WSU-19/RTT 271WS-19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTT 261WSU-19 and is the answer not in the manual?

Questions and answers

Related Manuals for Candy RTT 261WSU-19

Summary of Contents for Candy RTT 261WSU-19

  • Page 1 RTT 261WSU-19 RTT 2101WSU-19 RTT 271WS-19 RTT 2111WS-19 0030516070 RTT 261WSU-19/RTT 2101WSU-19/RTT 271WS-19...

  • Page 2: Table Of Contents

    Contents  Safety precautions..............2 Packing list ................4   Machine components ............. 4  Installation and adjustment ............. 5  Pre-wash preparation............. 7  Washing sequence ..............9  Disposal after washing ............12  Troubleshooting..............14  Specifications Back cover .................

  • Page 3: Safety Precautions

    Safety precautions Meaning and description of the symbols Contents marked with this symbol relate to product and user safety. Please operate the machine in strict WARNING conformity to the contents of this manual to minimize the risk of personal injury and/or damage to the machine.
  • Page 4 Do not stretch hands into the working machine. It is Do not share the outlet with other electric dangerous even if the rotation is slow. Take special appliances. If the power plug is damaged, care o f the children.This appliance is not intended or feels loose when plugged into the for use by persons (including children) with educe physical , sensor y or mental capabilities...

  • Page 5: Packing List

    Packing list Twin-tub washing Water intake Lint filter Gland machine （only on models hose RTT 261WSU-19, RTT 271WS-19 ） Machine Components Wash time Spin time Wash selector If you wish to set it Intensity can be If to set to less than...

  • Page 6: Installation And Adjustment

    Install the lint filter in the overflow filter located inside lint filter the washing tub.See the illustration. (on models RTT 261WSU-19,RTT 271WS-19) Drain hose usage Drain hose drainage should be smooth and unobstructed. 1.The height of the drain hose shall be...
  • Page 7 Change the direction of the drain hoses Figure 1 shows the factory installation position of the drain hose. Extend the drain hose from the spin tub side: 1.Remove the drain hose from the hanging hole on the cabinet. Pull the drain hose fixing hook outwards gently to take out the drain hose from the two fixing hooks.(See Figure 2.) 2.Turn 90°...

  • Page 8: Pre-Wash Preparation

    Pre-wash Preparation Basic know-how  The maximum capacity during washing and spinning cycles refers to the max weight of standard dry laundry that can be washed or spun at one time. The laundry quantity during one washing cycle should be lower than the rated capacity. Thickness, size, and the type of cloth will influence actual ...
  • Page 9 Detergent use How to add detergent: Method 1 - directly dissolving in the machine:  1.Add a small quantity of water to the machine. 2.Add the detergent powder. Run washing machine for 30 seconds to dissolve powder completely. 3.Place laundry into the washing machine and select a suitable water level. ...

  • Page 10: Washing Sequence

    Washing sequence Washing 1.Inlet selector Set the selector to “WASH”.(Figure1) Figure 1 2.Add water Machine begins to dispense detergent uniformly.(Figure2) Figure 2 3.Put in the wash load. Add more water as necessary.(Figure3) Figure 3 4 Select intensity. Select “SOFT ” or “STANDARD” water flow intensity according to the wash load.(Figure4) Figure 4 5.Select wash time.
  • Page 11 Mid-wash spin cycle 1. Put the laundries into the spin tub evenly and smoothly. 2.Spin： (1) Distribute the laundry into the spin tub smoothly and evenly. Note: the gland must be inserted properly even if the laundry quantity is small. Gland Push Push...
  • Page 12 The rinse cycle Rinse with water-filling 1.Place laundry into the washing machine. Place laundry into the washing machine. Select the appropriate current according to the laundries. 2.Add water. Add the appropriate amount of water. 3.Rinse Adjust the wash timer to 5-7 minutes for the rinse cycle. Rinsing with stored water (Repeat the mid-wash spin cycle and rinse cycle with stored water 2-3 times) 1.Place laundry into the washing machine.

  • Page 13: Disposal After Washing

    Remove lint completely by rinsing with clear water. 3.Re-install the lint filter. On models RTT 261WSU-19，RTT 271WS-19. 1.Remove the lint filter.Place your hand in the shown position. Push down to remove the filter.
  • Page 14 3) Hang the hook on the left upper side. 4) Push in the upper part. On models RTT 261WSU-19,RTT 271WS-19. 1.Take off the overflow filteras shown in the figure. Nip the elastic fixing claw and pull it in the direction of the arrow to take it off.

  • Page 15: Troubleshooting

    Troubleshooting When the remaining water is frozen Prevent the freezing Pour hot water below (be sure to drain the water Below 50 50°C into the wash cycle completely after each use) 2~3L compartment to soak it After completely draining, set completely, then using the “DRAIN SELECTOR”...

  • Page 16: Specifications

    Specifications Model RTT 261WSU-19 RTT 2101WSU-19 Rated Voltage 220V~240V Rated Frequency 50Hz Injection pressure 0.02~0.2MPa Washing Capacity/Spining Capacity 6kg/4.5kg 10kg/6kg Water level/Water quantity 5(Max)/52L,4/47L,3/42L, MAX/89L,MED/76L,MIN/65L 2/37L,1/32L (approximately) Net Weight 21kg 25kg Dimensions (755X440X910)mm (865X500X995)mm Model RTT 271WS-19 RTT 2111WS-19 Rated Voltage...
  • Page 17 ‫ﺍﻟﻣﻭﺍﺻﻔﺎﺕ‬ RTT 2101WSU-19 RTT 261WSU-19 :‫ﺍﻟﻣﻭﺩﻳﻝ‬ ‫022 ﻓﻭﻟﻁ ~ 042 ﻓﻭﻟﻁ‬ :‫ﻣﻌﺩﻝ ﺍﻟﻔﻭﻟﻁﻳﺔ‬ :‫ﻣﻌﺩﻝ ﺍﻟﺗﺭﺩﺩ‬ ‫05 ﻫﺭﺗﺯ‬ ‫20.0~2.0 ﻣﻳﺟﺎﺑﺎﺳﻛﺎﻝ‬ ‫ﺿﻐﻁ ﺍﻟﺣﻘﻥ‬ ‫01 ﻛﺟﻡ/6 ﻛﺟﻡ‬ ‫6 ﻛﺟﻡ/5.4 ﻛﺟﻡ‬ ‫ﺳﻌﺔ ﺍﻟﻐﺳﻳﻝ / ﻗﺩﺭﺓ ﺍﻟﺩﻭﺭﺍﻥ‬ 32/1 ‫ﺍﻷﺩﻧﻰ/56 ﻟﺗﺭ‬ 42/3 ‫ﻟﺗﺭ 2/73 ﻟﺗﺭ‬ ‫ﺍﻟﻣﺗﻭﺳﻁ /67 ﻟﺗﺭ‬...
  • Page 18 ‫ﺍﺳﺗﻛﺷﺎﻑ ﺍﻟﻣﺷﻛﻼﺕ ﻭﺣﻠﻬﺎ‬ ‫ﻣﻧﻊ ﺍﻟﺗﺟﻣﺩ‬ ‫ﻓﻲ ﺣﺎﻟﺔ ﺗﺟﻣﺩ ﺍﻟﻣﻳﺎﻩ ﺍﻟﻣﺗﺑﻘﻳﺔ‬ ‫)ﺗﺄﻛﺩ ﻣﻥ ﺗﺻﺭﻳﻑ ﺍﻟﻣﻳﺎﻩ ﺑﻻﻛﺎﻣﻝ ﺑﻌﺩ ﻛﻝ‬ ‫ﺍﺳﻛﺏ ﻣﻳﺎ ﻫ ًﺎ ﺳﺎﺧﻧﺔ ﺗﻘﻝ ﺩﺭﺟﺔ‬ ‫ﺃﻗﻝ ﻣﻥ 05 ﺩﺭﺟﺔ‬ ‫ﻣﺭﺓ ﻳﺗﻡ ﻓﻳﻬﺎ ﺍﺳﺗﺧﺩﺍﻡ ﺍﻟﻐﺳﻻﺔ( ﺑﻌﺩ ﺍﻟﺗﺻﺭﻳﻑ‬ ‫ﺣﺭﺍﺭﺗﻬﺎ ﻋﻥ 05 ﺩﺭﺟﺔ ﻣﺋﻭﻳﺔ ﻓﻲ‬ ‫ﻣﺋﻭﻳﺔ‬...
  • Page 19 .‫1( ﻗﻡ ﺑﺗﺭﻛﻳﺏ ﺃﻧﺑﻭﺏ ﺍﻟﺗﻣﻭﺝ‬ ‫2( ﺃﺩﺧﻝ ﻟﻭﺣﺔ ﺍﻟﺗﺭﻛﻳﺏ ﺑﻻﺟﺯء ﺍﻟﺳﻔﻠﻲ ﻣﻥ ﺍﻟﻣﺭﺷﺢ‬ .‫ﻋﻠﻰ ﻏﻁﺎء ﺍﻟﺻﻣﺎﻡ‬ .‫3( ﻗﻡ ﺑﺗﻌﻠﻳﻕ ﺍﻟﺧﻁﺎﻑ ﻋﻠﻰ ﺍﻟﺟﺎﻧﺏ ﺍﻷﻳﺳﺭ ﺍﻟﻌﻠﻭﻱ‬ .‫4( ﺍﺩﻓﻊ ﺍﻟﺟﺯء ﺍﻟﻌﻠﻭﻱ ﻟﻠﺩﺍﺧﻝ‬ .RTT 261WSU-19 ،RTT 271WS-19 ‫ﻋﻠﻰ ﺍﻟﻣﻭﺩﻳﻝ‬ ‫ﻝ ﻛ‬ ‫ﺷ ﻟ ﺍ‬ ‫ﻲ ﻓ‬ ‫ﺢ‬...
  • Page 20 ‫3. ﺇﻋﺎﺩﺓ ﺗﺭﻛﻳﺏ ﻣﺭﺷﺢ ﺍﻟﻧﺳﻻﺔ‬ ‫ﺍﻟﻐﻁﺎء ﺍﻷﻣﺎﻣﻲ ﻟﻣﺭﺷﺢ ﺍﻟﻧﺳﻻﺔ‬ .RTT 261WSU-19،RTT 271WS-19 ‫ﻋﻠﻰ ﺍﻟﻣﻭﺩﻳﻝ‬ .‫1 . ﺃﺯﻝ ﻓﻠﺗﺭ ﺍﻟﻭﺑﺭ. ﺿﻊ ﻳﺩﻙ ﻓﻲ ﺍﻟﻣﻭﺿﻊ ﺍﻟﻣﻭﺿﺢ. ﺍﺩﻓﻊ ﻷﺳﻔﻝ ﻹﺯﺍﻟﺔ ﺍﻟﻔﻠﺗﺭ‬ .‫2 . . ﺃﺯﻝ ﺍﻟﻭﺑﺭ ﺍﻟﺗﻲ ﺗﻡ ﺟﻣﻌﻬﺎ. ﺿﻊ ﺍﻟﻔﻠﺗﺭ ﻓﻲ ﺍﻟﻣﺎء ﻭﻗﻡ ﺑﺈﺯﺍﻟﺔ ﺍﻟﻭﺑﺭ ﻋﻧﺩﻣﺎ ﻳﻛﻭﻥ ﻣﺑﺗﻼ‬...
  • Page 21 ‫ﺩﻭﺭﺓ ﺍﻟﺷﻁﻑ‬ ‫ﺍﻟﺷﻁﻑ ﻣﻊ ﺗﻌﺑﺋﺔ ﺍﻟﻣﻳﺎﻩ‬ .‫1. ﺿﻊ ﺍﻟﻐﺳﻳﻝ ﻓﻲ ﺍﻟﻐﺳﻻﺔ‬ .‫ﺿﻊ ﺍﻟﻐﺳﻳﻝ ﻓﻲ ﺍﻟﻐﺳﻻﺔ. ﺣﺩﺩ ﺍﻟﺗﻳﺎﺭ ﺍﻟﻣﻧﺎﺳﺏ ﺣﺳﺏ ﻁﺑﻳﻌﺔ ﺍﻟﻐﺳﻳﻝ‬ ‫2. ﺿﺑﻁ ﻣﺳﺗﻭﻯ ﺍﻟﻣﻳﺎﻩ‬ .‫ﺍﺿﺑﻁ ﻣﺳﺗﻭﻯ ﺍﻟﻣﻳﺎﻩ ﺑﺎﺳﺗﺧﺩﺍﻡ ﺫﺭﺍﻉ ﺍﻟﺿﺑﻁ ﺣﺳﺏ ﻛﻣﻳﺔ ﺍﻟﻐﺳﻳﻝ، ﺛﻡ ﺃﺿﻑ ﺍﻟﻛﻣﻳﺔ ﺍﻟﻣﻼﺋﻣﺔ ﻣﻥ ﺍﻟﻣﻳﺎﻩ‬ ‫3.
  • Page 22 ‫ﺩﻭﺭﺓ ﺗﺟﻔﻳﻑ ﻣﺗﻭﺳﻁﺔ‬ .‫1. ﺿﻊ ﺍﻟﻐﺳﻳﻝ ﺩﺍﺧﻝ ﺣﻭﺽ ﺍﻟﺗﺟﻔﻳﻑ ﻋﻠﻰ ﻧﺣﻭ ﻣﺗﺳﺎﻭ ٍ ﻭﻣﺗﻧﺎﺳﻕ‬ .‫2. ﻗﻡ ﺑﺈﺟﺭﺍء ﺍﻟﺗﺟﻔﻳﻑ: )1( ﺿﻊ ﺍﻟﻐﺳﻳﻝ ﺩﺍﺧﻝ ﺣﻭﺽ ﺍﻟﺗﺟﻔﻳﻑ ﻋﻠﻰ ﻧﺣﻭ ﻣﺗﺳﺎﻭ ٍ ﻭﻣﺗﻧﺎﺳﻕ‬ .‫ﻣﻼﺣﻅﺔ: ﻳﺟﺏ ﻭﺿﻊ ﺍﻟﺳﺩﺍﺩﺓ ﻓﻲ ﻭﺿﻊ ﻣﺳﺗﻭ ٍ ﺑﻻﻘﺩﺭ ﺍﻟﻣﻼﺋﻡ ﺇﺫﺍ ﻛﺎﻧﺕ ﻛﻣﻳﺔ ﺍﻟﻐﺳﻳﻝ ﺻﻐﻳﺭﺓ‬ ‫ﺍﺩﻓﻊ‬...
  • Page 23 ‫ﺗﺳﻠﺳﻝ ﺍﻟﻐﺳﻳﻝ‬ ‫ﺍﻟﻐﺳﻳﻝ‬ ‫1. ﻣﺣﺩﺩ ﺍﻟﻌﻣﻠﻳﺔ‬ 1 ‫" )ﻏﺳﻳﻝ(. ﺍﻟﺷﻛﻝ‬WASH" ‫ﺍﺿﺑﻁ ﺍﻟﻣﺣﺩﺩ ﻋﻠﻰ ﺍﻟﻭﺿﻊ‬ 1 ‫ﺍﻟﺷﻛﻝ‬ ‫ﻏﺳﻳﻝ‬ ‫ﺗﺟﻔﻳﻑ‬ ‫2. ﺃﺿﻑ ﺍﻟﻣﻳﺎﻩ ﻭﻣﺳﺣﻭﻕ ﺍﻟﺗﻧﻅﻳﻑ ﺍﻟﻣﺫﺍﺏ ﺣﺗﻰ ﺗﺻﻝ ﺍﻟﻣﻳﺎﻩ ﺇﻟﻰ‬ .‫ﺍﻟﻣﺳﺗﻭﻯ ﺍﻟﻣﻼﺋﻡ‬ 2 ‫ﺍﻟﺷﻛﻝ‬ (2 ‫. )ﺍﻟﺷﻛﻝ‬ .‫ﺗﺑﺩﺃ ﺍﻟﻐﺳﻻﺔ ﻓﻲ ﺩﻓﻕ ﺍﻟﻣﻧﻅﻑ ﻋﻠﻰ ﻧﺣﻭ ﻣﺗﻧﺎﺳﻕ‬ 3 ‫ﺍﻟﺷﻛﻝ‬...
  • Page 24 ‫ﺍﺳﺗﺧﺩﺍﻡ ﺍﻟﻣﻧﻅﻑ‬ :‫ﻛﻳﻔﻳﺔ ﺇﺿﺎﻓﺔ ﺍﻟﻣﻧﻅﻑ‬ :‫ﺍﻟﻁﺭﻳﻘﺔ 1 - ﺇﺫﺍﺑﺔ ﺍﻟﻣﺳﺣﻭﻕ ﻣﺑﺎﺷﺭ ﺓ ً ﻓﻲ ﺍﻟﻐﺳﻻﺔ‬ .‫1. ﺃﺿﻑ ﻛﻣﻳﺔ ﻗﻠﻳﻠﺔ ﻣﻥ ﺍﻟﻣﻳﺎﻩ ﻓﻲ ﺍﻟﻐﺳﻻﺔ‬ .‫2. ﺃﺿﻑ ﻣﺳﺣﻭﻕ ﺍﻟﺗﻧﻅﻳﻑ. ﻗﻡ ﺑﺗﺷﻐﻳﻝ ﺍﻟﻐﺳﻻﺔ ﻟﻣﺩﺓ 03 ﺛﺎﻧﻳﺔ ﻹﺫﺍﺑﺔ ﺍﻟﻣﺳﺣﻭﻕ ﺗﻣﺎ ﻣ ًﺎ‬ .‫3. ﺿﻊ ﺍﻟﻐﺳﻳﻝ ﻓﻲ ﺍﻟﻐﺳﻻﺔ، ﺛﻡ ﺣﺩﺩ ﻣﺳﺗﻭﻯ ﻣﻼﺋ ﻣ ًﺎ ﻟﻠﻣﻳﺎﻩ‬ :‫ﺍﻟﻁﺭﻳﻘﺔ...
  • Page 25 ‫ﺍﻟﺗﺣﺿﻳﺭ ﻟﻠﻐﺳﻳﻝ ﺍﻟﺗﻣﻬﻳﺩﻱ‬ ‫ﺍﻹﺭﺷﺎﺩﺍﺕ ﺍﻷﺳﺎﺳﻳﺔ‬ /‫ﺗ ُ ﺷﻳﺭ ﺍﻟﺳﻌﺔ ﺍﻟﻘﺻﻭﻯ ﺃﺛﻧﺎء ﺩﻭﺭﺍﺕ ﺍﻟﻐﺳﻳﻝ ﻭﺍﻟﺗﺟﻔﻳﻑ ﺇﻟﻰ ﺃﻗﺻﻰ ﻭﺯﻥ ﻟﻠﻣﻼﺑﺱ ﺍﻟﻣﻐﺳﻭﻟﺔ‬ ‫ﺍﻟﻣﺟﻔﻔﺔ ﺍﻟﻌﺎﺩﻳﺔ ﺍﻟﺗﻲ ﻳﻣﻛﻥ ﻏﺳﻠﻬﺎ ﺃﻭ ﺗﺟﻔﻳﻔﻬﺎ ﻓﻲ ﻣﺭﺓ ﻭﺍﺣﺩﺓ. ﻭﻳﺟﺏ ﺃﻥ ﺗﻛﻭﻥ ﻛﻣﻳﺔ ﺍﻟﻐﺳﻳﻝ‬ .‫ﻓﻲ ﺩﻭﺭﺓ ﺍﻟﻐﺳﻳﻝ ﺍﻟﻭﺍﺣﺩﺓ ﺃﻗﻝ ﻣﻥ ﺍﻟﺳﻌﺔ ﺍﻟ ﻣ ُﻘ ﺩ ﱠ ﺭﺓ ﻟﻠﻐﺳﻻﺔ‬ ‫ﺳﺗﺅﺛﺭ...
  • Page 26 ‫ﺗﻐﻳﻳﺭ ﺍﺗﺟﺎﻩ ﺧﺭﺍﻁﻳﻡ ﺍﻟﺗﺻﺭﻳﻑ‬ .‫ﻳﻭﺿﺢ ﺍﻟﺷﻛﻝ 1 ﻣﻭﻗﻊ ﺗﺭﻛﻳﺏ ﺍﻟﻣﺻﻧﻊ ﻟﺧﺭﻁﻭﻡ ﺍﻟﺻﺭﻑ‬ ‫ﺧﺭﻁﻭﻡ ﺍﻟﺻﺭﻑ‬ 1 ‫ﺍﻟﺷﻛﻝ‬ ‫ﺍﺻﻼﺡ ﺍﻟﺧﻁﺎﻑ‬ ‫ﻋﺭﺽ ﺍﻟﻘﺳﻡ ﺍﻟﺟﺎﻧﺑﻲ‬ :‫ﺗﻣﺩﻳﺩ ﺧﺭﻁﻭﻡ ﺍﻟﺗﺻﺭﻳﻑ ﻣﻥ ﺍﻟﺟﺎﻧﺏ ﺣﻭﺽ ﺍﻟﺩﻭﺭﺍﻥ‬ ‫. ﺔ‬ ‫ﻧ ﺍ ﺯ‬ ‫ﺧ ﻟ ﺍ‬ ‫ﻰ‬ ‫ﻠ ﻋ‬ ‫ﺔ‬ ‫ﻘ...
  • Page 27 ‫ﺍﻟﻣﻳﺎﻩ ﺍﻟﻔﺎﺋﺿﺔ‬ .‫ﺍﻟﻐﺳﻳﻝ. ﺍﻧﻅﺭ ﺍﻟﺭﺳﻡ ﺍﻟﺗﻭﺿﻳﺣﻲ‬ ، ‫ﻣﺭﺷﺢ ﺍﻟﻧﺳﻻﺔ‬ RTT 261WSU-19 ‫)ﻋﻠﻰ ﺍﻟﻣﻭﺩﻳﻝ‬ （RTT 271WS-19 ‫ﺍﺳﺗﺧﺩﺍﻡ ﺧﺭﻁﻭﻡ ﺍﻟﺗﺻﺭﻳﻑ‬ .‫ﻳﺟﺏ ﺃﻥ ﻳﻛﻭﻥ ﻣﺳﺎﺭ ﺧﺭﻁﻭﻡ ﺍﻟﺗﺻﺭﻳﻑ ﻣﻼﺋ ﻣ ًﺎ ﻭﺧﻻ ﻳ ًﺎ ﻣﻥ ﺃﻱ ﻣﻭﺍﺩ ﺗﻌﻳﻕ ﺍﻟﺗﺻﺭﻳﻑ‬ ‫1. ﻳﺟﺏ ﺃﻥ ﻳﻛﻭﻥ ﺍﺭﺗﻔﺎﻉ ﺧﺭﻁﻭﻡ ﺍﻟﺗﺻﺭﻳﻑ ﺃﻗﻝ ﻣﻥ 01 ﺳﻡ، ﻭﺇﻻ‬...
  • Page 28 ‫ﻗﺎﺋﻣﺔ ﺍﻟﺗﻌﺑﺋﺔ‬ ‫ﻏﺳﺎﻟﺔ ﺫﺍﺕ ﺧﺭﻁﻭﻡ ﺍﻟﻣﻳﺎﻩ‬ ‫ﻣﺭﺷﺢ ﺍﻟﻧﺳﻻﺔ‬ ‫ﺇﺩﺧﺎﻝ ﺳﺩﺍﺩﺓ‬ ‫ﺩﻟﻳﻝ ﺍﻟﻣﺎﻟﻙ‬ ‫ﺍﻟﺩﻟﻳﻝ‬ ‫）ﻓﻘﻁ ﻋﻠﻰ ﺍﻟﻣﻭﺩﻳﻝ‬ RTT 261WSU-19 （RTT 271WS-19 ‫ﺍﻟﺩﻟﻳﻝ‬ ‫ﻣﻛﻭﻧﺎﺕ ﺍﻟﻐﺳﺎﻟﺔ‬ ‫ﻣﺅ ﻗ ﱢ ﺕ ﺍﻟﺗﺟﻔﻳﻑ‬ ‫ﻣﺅﻗﺕ ﺍﻟﻐﺳﻳﻝ‬ ‫ﻣﻔﺗﺎﺡ ﻗﻭﺓ ﺍﻟﻐﺳﻳﻝ‬ ‫ﺇﺫﺍ ﺭﻏﺑﺕ ﻓﻲ ﺍﻟﺿﺑﻁ ﻋﻠﻰ‬ ‫ﻳﻣﻛﻥ ﺿﺑﻁ ﻗﻭﺓ ﺍﻟﻐﺳﻳﻝ‬...
  • Page 29 ‫ﻻ ﺗ َ ﺳﺗﺧﺩﻡ ﻣﺄﺧﺫ ﻁﺎﻗﺔ ﻭﺍﺣ ﺩ ً ﺍ ﻟﺗﺷﻐﻳﻝ ﺃﺟﻬﺯﺓ ﻛﻬﺭﺑﺎﺋﻳﺔ‬ ‫ﻻ ﺗﻣﺩ ﻳﺩﻙ ﺩﺍﺧﻝ ﺍﻟﻐﺳﻻﺔ ﺃﺛﻧﺎء ﺗﺷﻐﻳﻠﻬﺎ. ﺣﻳﺙ ﻳﻧﻁﻭﻱ ﺫﻟﻙ ﻋﻠﻰ ﺧﻁﻭﺭﺓ‬ ‫ﺣﺗﻰ ﻓﻲ ﺣﻻﺔ ﺍﻟﺩﻭﺭﺍﻥ ﺑﺑﻁء. ﻛﻣﺎ ﻳﺭﺟﻰ ﺗﻭﺟﻳﻪ ﻋﻧﺎﻳﺔ ﺧﺎﺻﺔ ﻋﻧﺩ ﻭﺟﻭﺩ‬ ‫ﻣﺗﻌﺩﺩﺓ. ﻭﻓﻲ ﺣﻻﺔ ﺗﻠﻑ ﻣﻘﺑﺱ ﺍﻟﻁﺎﻗﺔ، ﺃﻭ ﻛﺎﻥ‬ ‫ﺃﻁﻔﺎﻝ.ﻫﺫﺍ...
  • Page 30 ‫ﺍﺣﺗﻳﺎﻁﺎﺕ ﺍﻟﺳﻼﻣﺔ‬ ‫ﻣﻌﺎﻧﻲ ﺍﻟﺭﻣﻭﺯ ﻭﻭﺻﻔﻬﺎ‬ ‫ﺗﺗﻌﻠﻕ ﺍﻟﻣﺣﺗﻭﻳﺎﺕ ﺍﻟﺗﻲ ﺗﺣﻣﻝ ﻫﺫﺍ ﺍﻟﺭﻣﺯ ﺑﺳﻼﻣﺔ ﺍﻟﻣﻧﺗﺞ ﻭﺍﻟﺳﻼﻣﺔ ﺍﻟﺷﺧﺻﻳﺔ ﻟﻠﻣﺳﺗﺧﺩﻣﻳﻥ. ﻟﺫﺍ‬ ‫ﺗﺣﺫﻳﺭ‬ ‫ﻳﺭﺟﻰ ﺍﻟﺗﺷﻐﻳﻝ ﻣﻊ ﺍﻻﻟﺗﺯﺍﻡ ﺍﻟﺣﺎﺯﻡ ﺑﺎﻟﻣﺣﺗﻭﻳﺎﺕ ﻓﻲ ﻫﺫﺍ ﺍﻟﺩﻟﻳﻝ ﻟﺗﻘﻠﻳﻝ ﺍﺣﺗﻣﺎﻟﻳﺔ ﺗﻌﺭ ﱡ ﺽ ﺍﻟﻣﺳﺗﺧﺩﻡ‬ .‫ﻹﺻﺎﺑﺎﺕ ﺟﺳﺩﻳﺔ ﻭ/ﺃﻭ ﺇﺗﻼﻑ ﺍﻟﻐﺳﺎﻟﺔ ﻷﺩﻧﻰ ﺣﺩ ﻣﻣﻛﻥ‬ ‫ﺗﻭﺿﺢ...
  • Page 31 ‫ﺍﻟﻣﺣﺗﻭﻳﺎﺕ‬ 2 ................‫• ﺍﺣﺗﻳﺎﻁﺎﺕ ﺍﻟﺳﻼﻣﺔ‬ 4 ..................‫• ﻗﺎﺋﻣﺔ ﺍﻟﺗﻌﺑﺋﺔ‬ 4 ..................‫• ﻣﻛﻭﻧﺎﺕ ﺍﻟﻐﺳﻻﺔ‬ 5 ................‫• ﺍﻟﺗﺭﻛﻳﺏ ﻭﺍﻟﺿﺑﻁ‬ 7 ..............‫• ﺍﻟﺗﺣﺿﻳﺭ ﻟﻠﻐﺳﻳﻝ ﺍﻟﺗﻣﻬﻳﺩﻱ‬ 9 ................... ‫• ﺗﺳﻠﺳﻝ ﺍﻟﻐﺳﻳﻝ‬ 12 ................‫• ﺍﻟﺗﺻﺭﻳﻑ ﺑﻌﺩ ﺍﻟﻐﺳﻳﻝ‬ ..............‫• ﺍﺳﺗﻛﺷﺎﻑ ﺍﻟﻣﺷﻛﻼﺕ ﻭﺣﻠﻬﺎ‬ ‫•...
  • Page 32 ‫ﺩﻟﻳﻝ ﺍﻟﻣﻻﻙ‬ ‫ﺍﻟﻐﺳﻻﺔ ﺫﺍﺕ ﺍﻟﺣﻭﺿﻳﻥ‬ RTT 261WSU-19 RTT 2101WSU-19 RTT 271WS-19 RTT 2111WS-19 .‫ﻳﺭﺟﻰ ﻗﺭﺍءﺓ ﻫﺫﺍ ﺍﻟﺩﻟﻳﻝ ﺑﻌﻧﺎﻳﺔ ﻗﺑﻝ ﺍﺳﺗﺧﺩﺍﻡ ﺍﻟﻐﺳﻻﺔ‬ .‫ﻭﺍﺣﺗﻔﻅ ﺑﻪ ﻟﻠﺭﺟﻭﻉ ﺇﻟﻳﻪ ﻓﻲ ﺍﻟﻣﺳﺗﻘﺑﻝ‬...

This manual is also suitable for:

Rtt 2101wsu-19Rtt 271ws-19Rtt 2111ws-19
