Summary of Contents for Candy RTL 871SZ-19
-
Page 3: Table Of Contents
CONTENTS Product overview Safety precautions Description of symbols Safety warning Installation & adjustment Install the bottom plate Balance washing machine Usage of the drain hose Inlet pipe connection Before washing Check the following before washing Operation Loading your laundry Usage of the detergent Explanation of buttons Button Operation and Descriptions Cleaning or Maintenance... -
Page 4: Product Overview

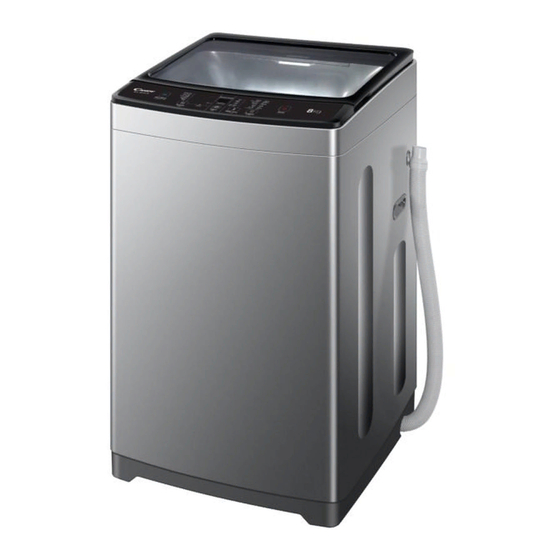

Product overview Liquid detergent dispenser Top lid component Balance ring Powder detergent dispenser Softener dispenser Control panel seat Inner tub Lint filter Pulsator Control panel film Cabinet Adjustable foot(2 pieces) Cold water inlet valve Hot water inlet valve Hook Cabinet handle Back cover Drain hose joint Base frame... -
Page 5: Safety Precautions
Safety precautions Description of symbols Warning sign Contents marked with this symbol are related to the safe use of the product and the personal safety of the user. Please operate in accordance to the contents of this manual,to avoid harm to the user or damage to the machine itself. Forbidden sign Contents marked with this symbol indicate operations or actions that should not be undertaken by the user. - Page 6 Safety precautions Forbidden Do not install this appliance in a Do not connect to hot damp or wet environment. Do not water higher above leave wet laundry on the control 50°C. panel or spray water directly onto The maximum inlet this appliance, as this may cause the water pressure refer to washer to malfunction or cause an...
- Page 7 Safety precautions Safety warning The washing machine whose lid can be opened during water extraction, that it takes 15s or more for complete stop of water-extracting chamber tub. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
-
Page 8: Installation & Adjustment
Installation & Adjustment Please install and adjust the machine according to the directions contained in this manual.It is very important to follow these directions for the safe operation of the machine and to ensure your machine operates correctly. Install the bottom plate The purpose of the bottom plate is to su ppress noise from the washing machine during operation. -
Page 9: Usage Of The Drain Hose
Installation & Adjustment Usage of the drain hose The drainage shall be smooth with the drain hose. 1.First connect the drain hose to the connection point on the lower right side of the cabinet, and fasten with drain hose clamp (provided). Bracket 2.Connect drain hose guide on to the outside of drain hose. -
Page 10: Inlet Pipe Connection
Installation & Adjustment Inlet pipe connection The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. 1.Connect the water inlet hose to the water tap. You may have to use pliers to tighten the coupling. Do not over tighten as this may cause damage to the valve or hose fittings. -
Page 11: Before Washing
Before washing Preparation before washing Check the following before washing When the machine is Clear the pockets Tie any long straps The weight of the and take out loose or strings,fasten laundry shall not running,buttons may cause noise. items such as coins, buttons and close exceed the rated sand,hairpins,etc. -
Page 12: Operation
Operation Loading your laundry The rated washing capacity refers to the largest dry weight of a load that can be washed. The thickness, size and type of clothes will influence the actual capacity. Do not select more than water level “4” for clothes less than 1.0kg, to avoid splashing of water. -
Page 13: Explanation Of Buttons
Operation Explanation of buttons Flashing Lighting Water Level Deep Clean Normal Wash Time Delicate Strong Warm Rinse Times Cold Wool Soak Spin time Tap Cold Air Dry Quick Delay Process Adjust Water Supply Program Indicator display On:Indicates the program is about to run and indicates the selected cycle and options Flashing:Indicates the program is running and indicates the selected cycle and options... - Page 14 Operation A"Power" button Press the " Power " button to switch on the power. Under power-on mode, press it to switch off the power. If the "Start/Pause" button is not pushed, the machine will switch off the power automatically in 10 minutes. F"Start/Pause"...
-
Page 17: Cleaning Or Maintenance
Cleaning or Maintenance Remove the power plug before carrying out any cleaning or maintenance. Clean the lint filter(s) and detergent box after each wash,otherwise it may influence you using the machine. The lint filter must be used during washing. Clean the pump filter It must be cleaned in time after each using. -
Page 18: Trouble-Shooting
Trouble-shooting If there is a fault or the machine does not operate correctly,remove the power plug before checking the machine.Using diagnostic list below,please check if the machine requires repair.If a repair is required,please contact our customer care team,do not try to fix it by yourself. -
Page 19: Packing List
Trouble-shooting Problem Possible causes What to do The water tap leaks. Is the water inlet hose loose? Fasten the inlet hose. Please contact Customer Over flow Error The display shows F2. Care. Common occurrences Situation Cause The spinning is intermittent after it starts. Redistribute the load evenly.Close the top lid. -
Page 20: Specification
Specification Type Fully Automatic Washing Machine Type Fully Automatic Washing Machine Model Model RTL 881SZ-19 RTL 871SZ-19 Rated voltage/frequency 230V/60Hz Rated voltage/frequency 230V/60Hz Rated washing power Rated washing power 520W 455W Rated spinning power Rated spinning power 385W 385W Net weight... - Page 21 37.5 42.5 0.03 0.03 285kWh 254kWh 25300L 22220L 51 6 45 5 39 4 33 3 27 2 21 1 48 6 42 5 36 4 30 3 24 2 18 1 68 9 63 8 57 7 65 9 60 8 54 7 70 10...
- Page 25 Program Program Process Adjust...
- Page 26 "...
- Page 27 " " " " B Program Process...
- Page 28 Flashing Lighting Normal Time Delicate Strong Warm Times Wool Soak Quick Process Program...
- Page 32 1.2-0.8...
