Application Example

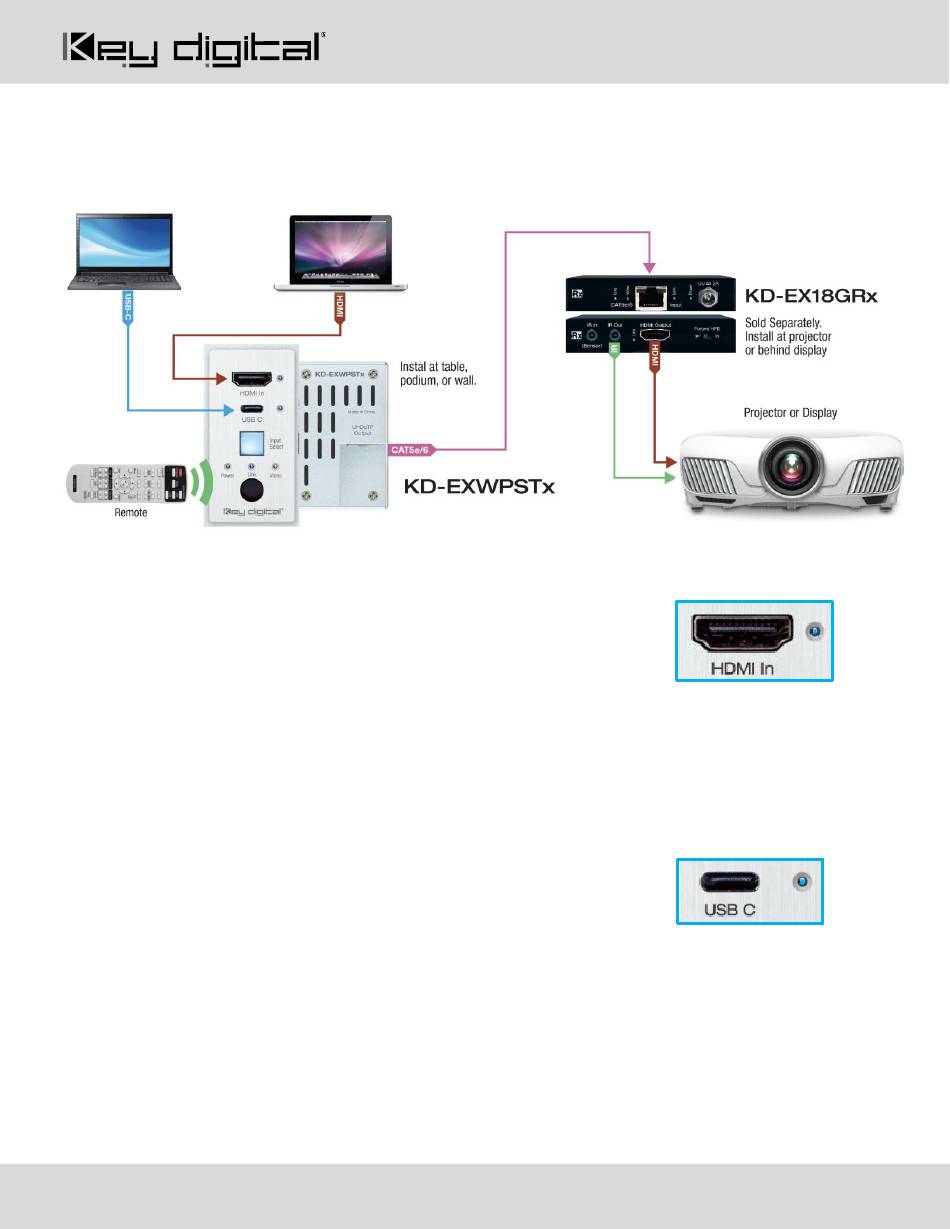

Presentation Switching and extension with IR control to projector / display.
Connections, Buttons, and LEDs
HDMI In: Using an HDMI cable, connect your HDMI source.
•
Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps
•
Supports HDR10
•
Compliant with HDCP 2.2 and previous
•
Supports surround audio formats including Dolby ®, DTS™ (formats up to 5.1 / 6.1)
•
Does not support CEC or ARC
•
Link light (blue) to the right of port illuminates when HDMI is selected and there is an active HDMI signal
passing through. LED will blink steadily when active incoming signal is not present
USB C: Using a USB-C cable, connect your source. For Display Port sources, use adapter cables
•
Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps
•
Supports HDR
•
Utilizes Display Port over USB-C alt mode
•
Supports Display Port version 1.3 and previous
•
Compliant with HDCP 2.2 and previous
•
Does not support CEC or ARC
•
Link light (blue) to the right of port illuminates when USB C is selected and there is an active HDMI
signal passing through. LED will blink steadily when active incoming signal is not present
