Quick Setup Guide

Begin with the KD-EXWPSTx and KD-EX18GRx, all source, display devices, audio system, and any
other connected peripherals powered off.

Connect

1. Connect video sources into the HDMI and USB-C input ports of KD-EXWPSTx
2. Connect video displays/projectors to the HDMI output port of KD-EX18GRx (sold separately)
3. If collecting IR control signals at the wall plate, connect an IR emitter to KD-EX18GRx's IR Out port
and apply the emitter head to the IR sensor of the device you wish to control.
4. Connect CAT5e/6 cabling from KD-EXWPSTx's UHDoTP output to KD-EX18GRx UHDoTP input.
Ensure that the cable meets the required minimum length of 17ft / 5m.
5. Connect power. Screw-in power supply to the KD-EX18GRx unit, and then connect power to outlet.

Configure

Configure KD-EXWPSTx with Key Digital Management Software™ Pro (KDMS™ Pro). Download
1. Connect to KD-EXWPSTx from your PC using the USB micro port on the face of the unit

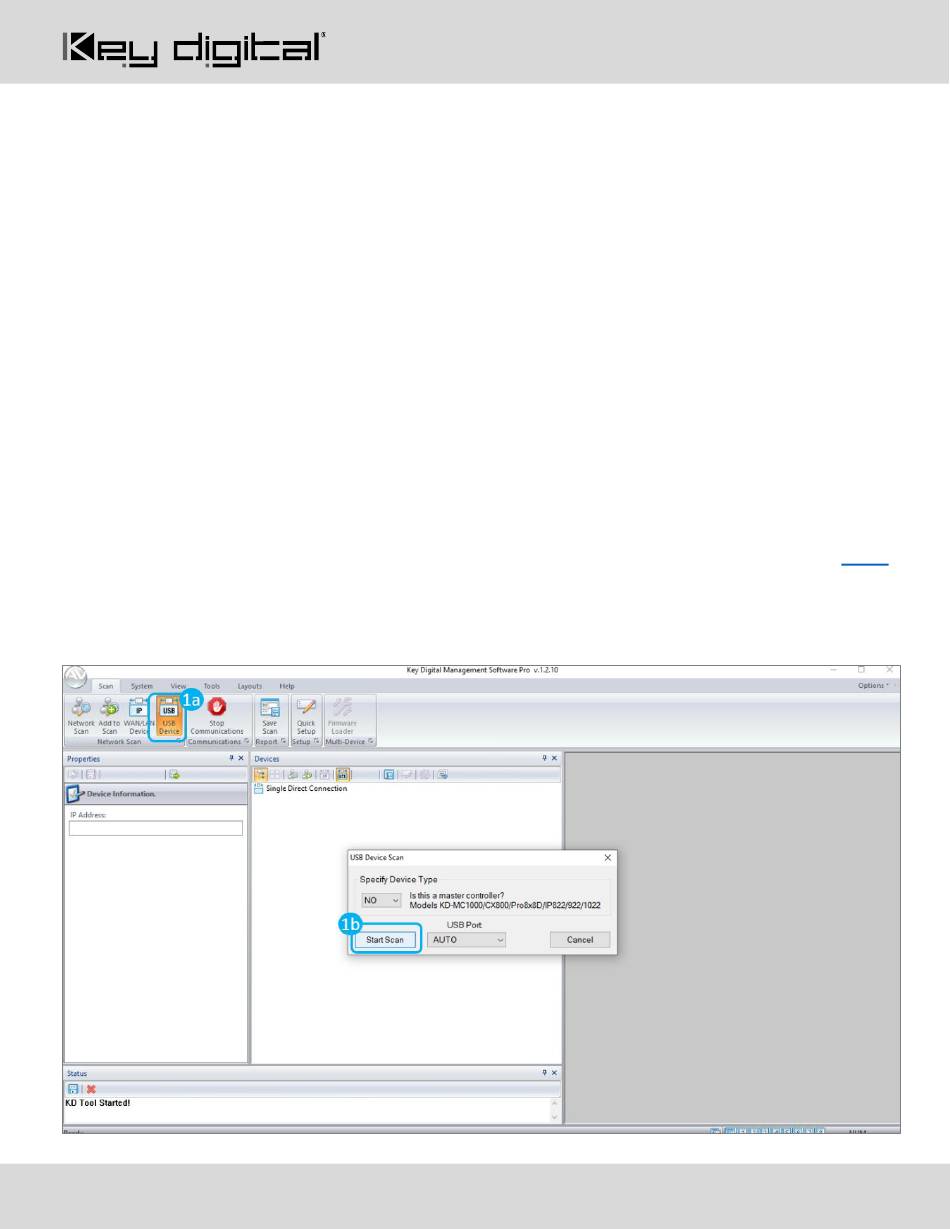

2. Open the KDMS Pro software and perform a USB scan (fig. 1a). Choose "NO" and Start Scan when the
USB Device Scan prompt appears (fig. 1b)
