Video LED:
Color:
Orange
Solid illumination with active TMDS (video + audio) signal
Off with no TMDS (video + audio) signals
IR Sensor: Collects line of sight infrared from remotes without external connecting block
Signal is output on Rx unit's IR Out port
KD-EXWPSTx is NOT controllable via IR
Receives signals from a 90° angle at up to 30ft away.
Maximum IR burst frequency acceptance is 55kHz

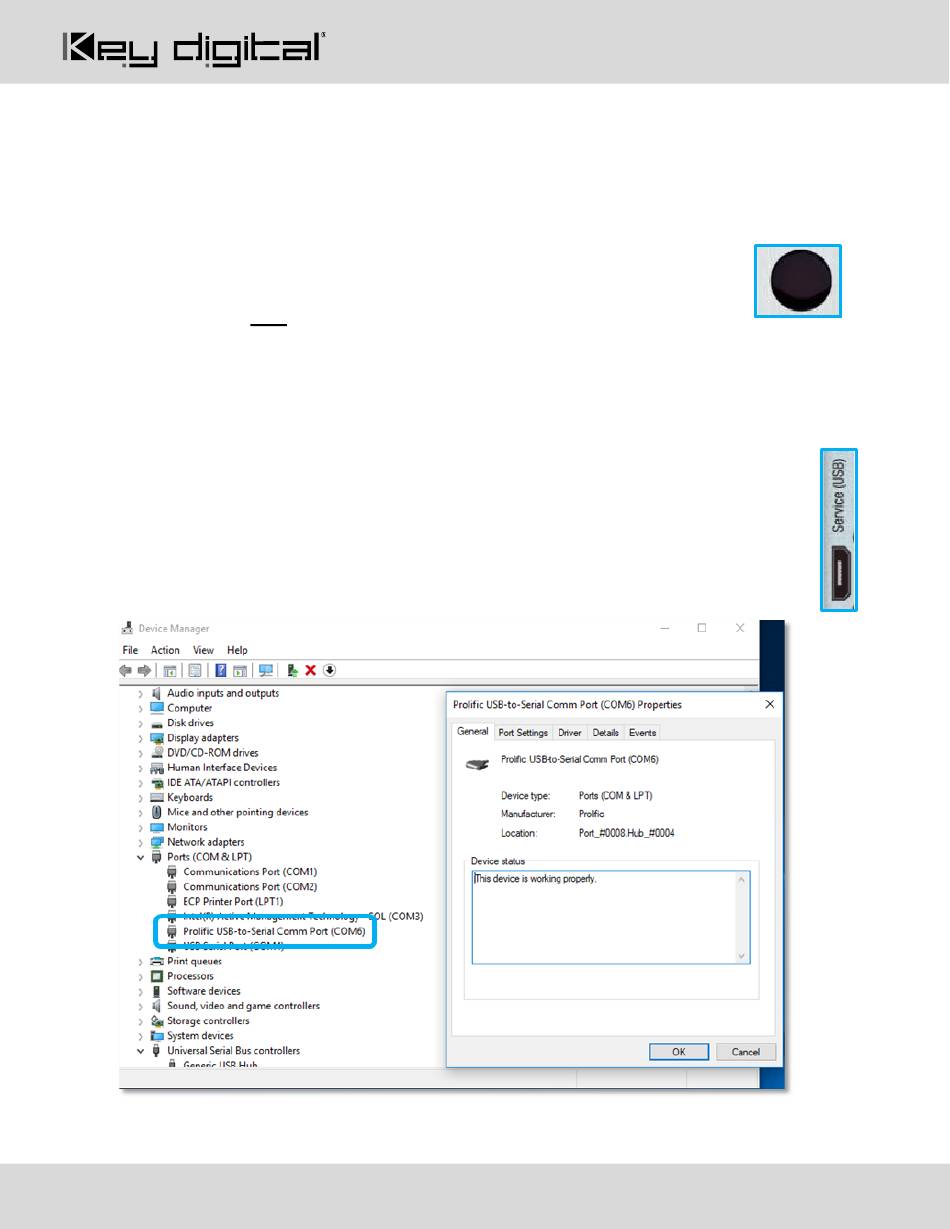

Service USB Port
Micro USB port
Used for configuration and control from PC via KDMS Pro or third-party control terminal
Used for firmware updates (consult with Key Digital tech support before updating firmware)
Supports USB driver for Windows 10, 7, XP, Mac, Linux
Will register as "Prolific USB-to-Serial Comm Port in Device Manager
Can be used as RS-232 control port. Baud rate is 115,200 unless adjusted otherwise
