Quick Setup Guide

CONNECT:
Test for proper operation of the unit and cables in your system before permanently securing the
unit for final installation. Ensure that you leave enough ventilation space to provide sufficient
airflow and cooling.
1. Begin with the KD-S2x1X/KD-S4x1X unit and all input/output devices turned off with power and
CAT cables removed
2. Connect your HDMI sources to the input ports of KD-S2x1X/KD-S4x1X unit
3. Connect your HDMI display to the output port of KD-S2x1X/KD-S4x1X unit
4. BEFORE connecting power supply to power outlet, screw-in the power supply
to the KD-S2x1X/KD-S4x1X unit
5. Connect the analog and/or digital audio amplifiers/receivers via the analog 3.5mm and optical outputs
6. After all connections are made, plug-in power supply to power outlet
7. Power on input and output devices
CONFIGURE:
The default EDID handshake is 4Kx2K@60, 18G, HDR, 2ch audio. Use the EDID rotary
›
dial to choose the desired handshake that will be provided to the connected sources.
CONTROL:
Switch KD-S2x1X/KD-S4x1X via front panel button or IR remote.
›

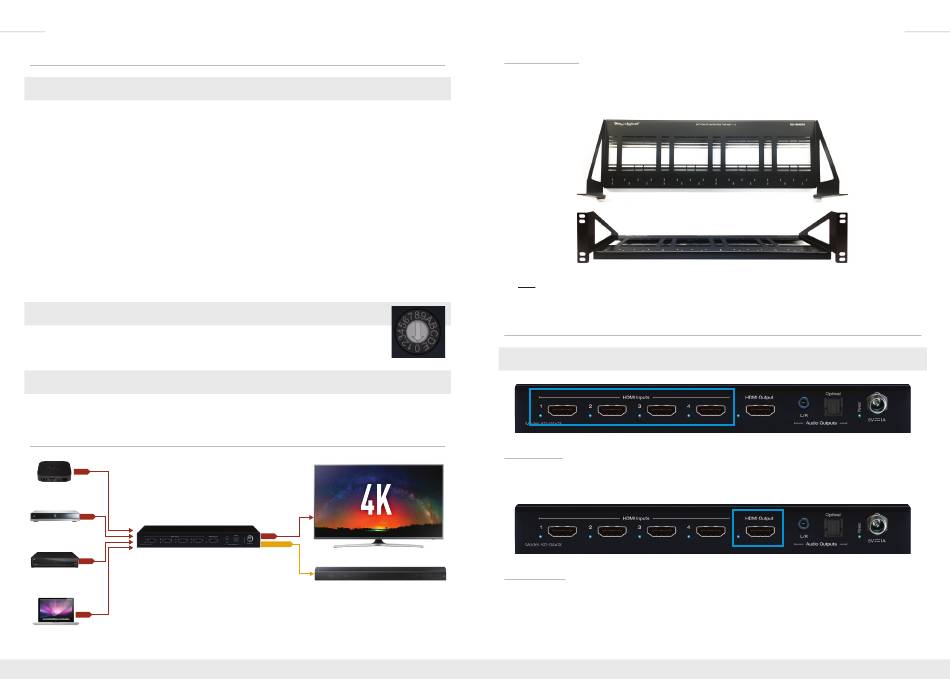

Application Example

Apple TV
HDMI
Blu Ray
KD-S4x1X
HDMI
Cable / Satellite
HDMI
HDMI Laptop
HDMI
Note: 18Gbps signal extension requires all 18Gbps supported HDMI cables.
HDMI
Optical Audio
Sound Bar
Rack Mounting:
In addition to mounting with the supplied L-Brackets, multiple KD-S2x1X/KD-S4x1X may be mounted in
KD-SMS16 using the side mounting screws. KD-SMS16 is a mounting shelf for Key Digital units with side
mounting screw spacing of 2.912", 2.582", or 2.252"
Do NOT exceed 12 units as doing so will result in unit damage by overheating.
Front & Rear Panel Connections, Buttons, and LEDs
REAR PANEL
HDMI Inputs
The 2/4 HDMI inputs are located on the left side of the back panel.
›
Blue LED illuminates solid to indicate an active HDMI signal is incoming.
›
HDMI Output
1 HDMI located on the center to right side of the back panel.
›
Blue LED illuminates solid when Hot Plug Detection (HPD) is received from the connected display/
›
output device
