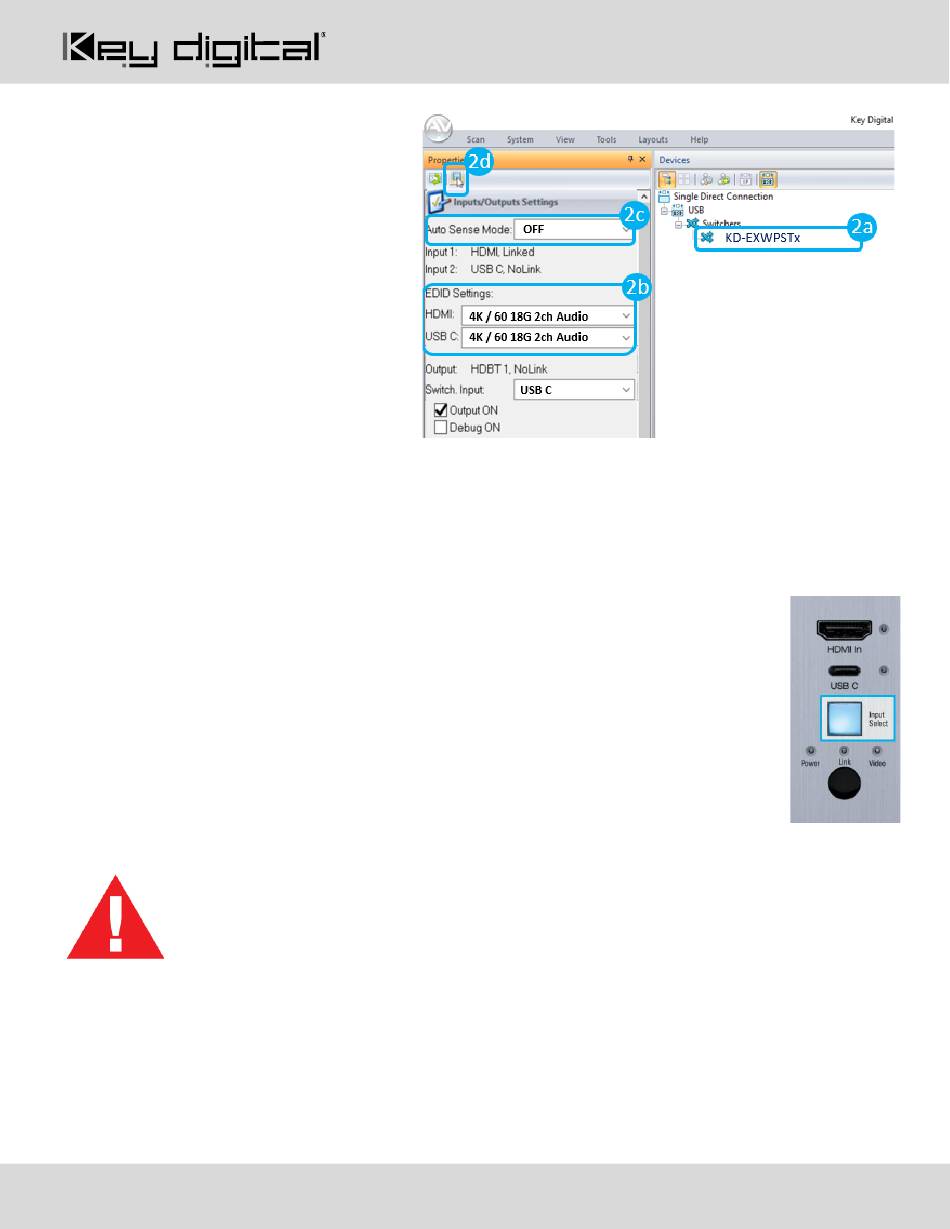

3. Choose the detected device from the
Devices window (fig. 2a)
4. Choose the desired EDID handshake
that you wish to provide to your
connect video sources (fig. 2b)
5. Set Auto Switching as desired (fig. 2c)
When Auto Switching is On, the Input
Select button backlighting will
illuminate solid.
When set to Forced On, the Input
Select button on the face of the wall
plate will no longer switch video
sources. Instead switching will only
occur when a new source is connected, or an active source is disconnected.
For more information on Auto Switching, please see the Connections, Buttons, and LEDs section.
6. Save (fig. 2d)
7. Refer to the Connections, Buttons, and LEDs section for more information. Full access to all
settings/commands is achieved via terminal session using Tera Term or PuTTy software.

Control

Use the Input Select button to toggle between the HDMI or USB-C source inputs or to
activate Auto Switch mode
Press and hold for 3 seconds to activate Auto Switching. Solid illumination of the
backlighting indicates mode has been set
Test for proper operation of the unit and cables in your system before permanently securing the
unit for final installation. Ensure that you leave enough ventilation space to provide sufficient
Street Mt. Vernon, NY 10553 • www.keydigital.com
rd
521 East 3
airflow and cooling
Rev 1.0 – Nov, 2020
