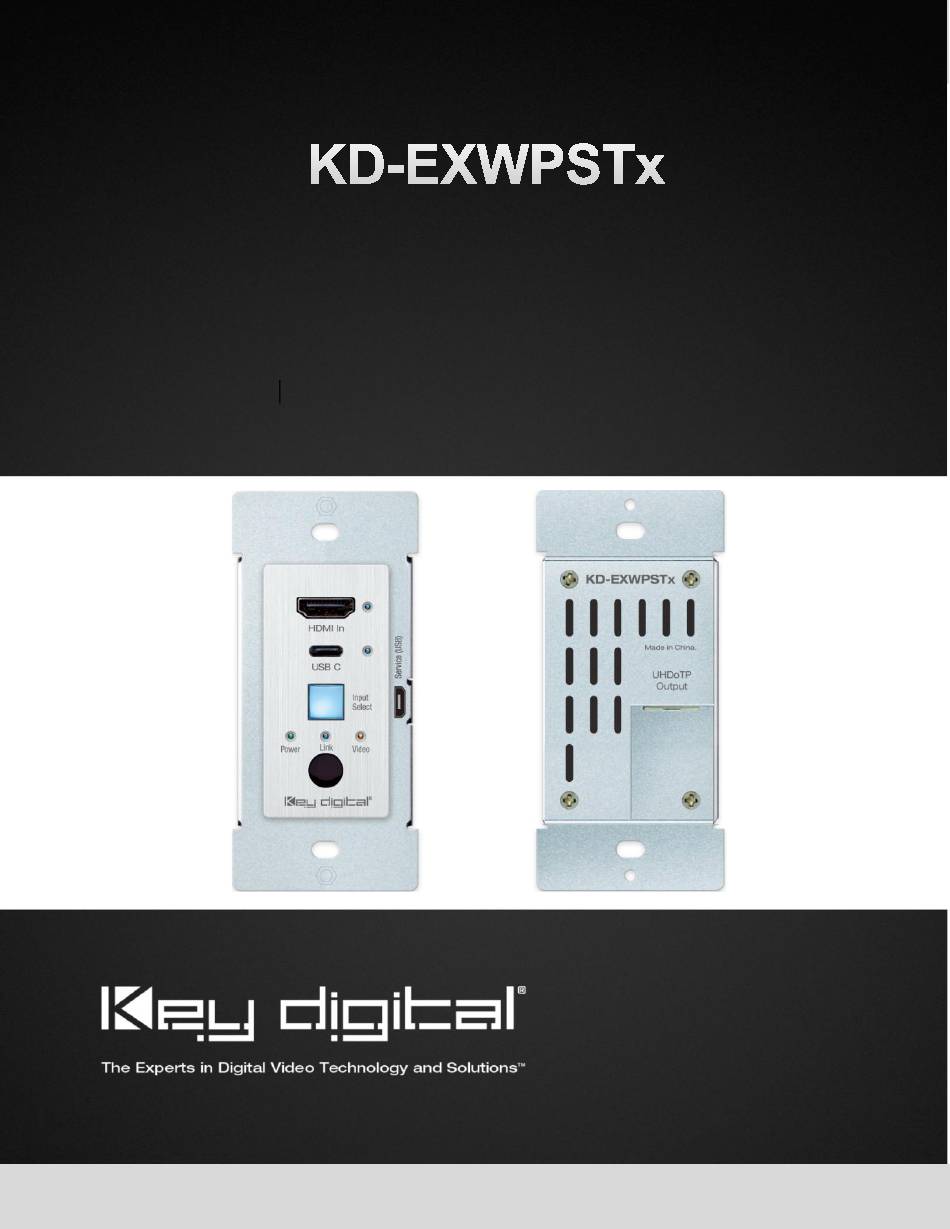

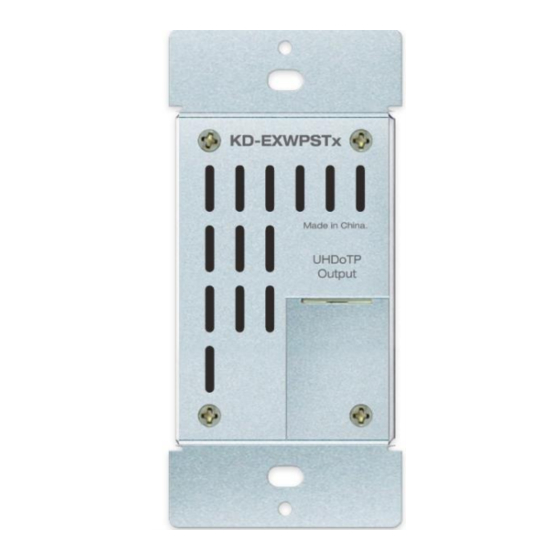

  • Page 1 Rev 1.0 – Nov, 2020 Single Gang HDMI USB-C over 50m CAT5e/6 Wall Plate Switcher Transmitter. 4K/UHD, 18G, Power over CAT, Auto Switching. Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 2: Table Of Contents

    Rev 1.0 – Nov, 2020 Table of Contents About KD-EXWPSTX Quick Setup Guide Connect Configure Control Application Example Connections and LEDs Unit Control Commands Specifications Warranty Information Product Warnings & Safety Instructions Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 3: About Kd-Exwpstx

    4:4:4 chroma sub-sampling over a single CAT5e/6 cable up to 115ft (35m). 1080p signals are extended up to 164ft (50m). In addition to HDMI video and audio signals, KD-EXWPSTX features an IR sensor on the face of the plate to carry IR for controlling remotely located equipment. KD-EXWPSTX is configured using the USB connection and KDMS Pro software to apply settings like 4K to 1080p down convert, EDID handshake control, and hot plug detection for overcoming common systems integration obstacles.
  • Page 4 Rev 1.0 – Nov, 2020 • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage • EDID Management: Internal library with 12 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device •...
  • Page 5: Quick Setup Guide

    Configure KD-EXWPSTx with Key Digital Management Software™ Pro (KDMS™ Pro). Download HERE 1. Connect to KD-EXWPSTx from your PC using the USB micro port on the face of the unit 2. Open the KDMS Pro software and perform a USB scan (fig. 1a). Choose “NO” and Start Scan when the USB Device Scan prompt appears (fig.
  • Page 6: Control

    Rev 1.0 – Nov, 2020 3. Choose the detected device from the Devices window (fig. 2a) 4. Choose the desired EDID handshake that you wish to provide to your connect video sources (fig. 2b) 5. Set Auto Switching as desired (fig. 2c) •...
  • Page 7: Application Example

    Rev 1.0 – Nov, 2020 Application Example Presentation Switching and extension with IR control to projector / display. Connections, Buttons, and LEDs HDMI In: Using an HDMI cable, connect your HDMI source. • Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps •...
  • Page 8 If Auto Switch has been set to FORCED ON via software command, the Input Select button does not control switching • Press and hold for 10 seconds to reset the KD-EXWPSTx to factory default: o EDID is setting 3 (1080p with 2ch audio) o Input source is HDMI...
  • Page 9 • Used for configuration and control from PC via KDMS Pro or third-party control terminal • Used for firmware updates (consult with Key Digital tech support before updating firmware) • Supports USB driver for Windows 10, 7, XP, Mac, Linux •...
  • Page 10 Rev 1.0 – Nov, 2020 USB Commands • KD-EXWPSTX allows control over serial interface for bi-directional communication. • Serial interface is accessed using the USB Service port Connection Protocol • Baud Rate = 115,200 bits per second as default •...
  • Page 11 : Reset to Factory Defaults ------------------------------------------------------------------------- Status Command (STA). Returns unit status and settings in readable format: KD-EXWPSTX> STA ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- KD-EXWPSTX F/W Version : 1.00 -- Front Panel Button : Enabled -- Auto Sensing Mode...
  • Page 12: Specifications

    Rev 1.0 – Nov, 2020 Specifications Technical • AV Inputs: 1x HDMI, 1x USB C • AV Outputs: 1x UHDoTP RJ45 • DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL) • HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p •...
  • Page 13: Warranty Information

    Exposure to rain or moisture Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and risk damage to your unit and associated equipment. Street Mt. Vernon, NY 10553 • www.keydigital.com...
