- Page 1 KD-Pro2x1X KD-Pro4x1X 2x1/4x1 4K/18G HDMI Switchers with Analog & Digital Audio De-Embed Output, IR, RS-232, IP Control Operating Instructions KD-Pro2x1X KD-Pro4x1X The Experts in Digital Video Technology and Solutions ™...
-
Page 2: Table Of Contents
KD-Pro2x1X/ KD-Pro4x1X enables multiple video sources to connect to a single video display while analog (3.5mm & balanced/unbalanced) and digital (optical & PCM) audio de-embed ports may feed audio of the selected source into and amplifier, DSP, or sound bar. - Page 3 CEC Pass-thru: From connected display to selected HDMI source › Control: Front panel button, serial IR, optical IR, RS-232, trigger in, and TCP/IP controllable › Control System Support: Key Digital App ready. Compass Control Pro ready. Fully controllable by ®...
-
Page 4: Quick Setup Guide
Ensure that you leave enough ventilation space to provide sufficient airflow and cooling. 1. Begin with the KD-Pro2x1X/KD-Pro4x1X unit and all input/output devices turned off with power and CAT cables removed 2. Connect your HDMI sources to the input ports of KD-Pro2x1X/KD-Pro4x1X unit 3. - Page 5 5. If using KD-App or Key Digital Management Software (KDMS ) for control, set the desired Unit ® ™ ™ Name in the device information section, and Input/Output names by entering the Input/Output Settings section of the properties window, and selecting the Change Input/Output Name button (fig.
-
Page 6: Introduction
Connect and Configure your unit as described in this Quick Setup Guide. › Download and open KD-App and/or KDMS › Ensure the iOS device and/or PC computer are on the same network with KD-Pro2x1X/KD-Pro4x1X › Perform a network scan in the KD-App/KDMS ›... -
Page 7: Rack Mounting
Rack Mounting: KD-Pro2x1X/KD-Pro4x1X includes a half-rack blank and a standard short rack ear for mounting in a standard-with rack. If you wish to mount two units side by side you may do so with optional KD-BKTHF. -
Page 8: Application Example
KD-Pro4x1 HDMI Application Example Laptop 2 Podium Laptop Table Laptop AppleTV Video Conferencing Ethernet RJ45 WiFi WiFi Router KD-Pro4x1X K E Y D I G I TA L APP READY HDMI KD-AMP220 KD-AMP220 Speakers Line Bass Treble Mute Input Control... -
Page 9: Connections, Leds, Buttons, Slide Switches, Rotaries

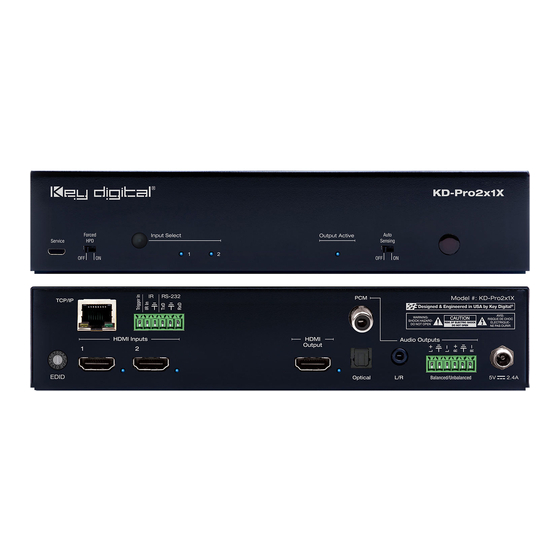

Connections, LEDs, Buttons, Slide Switches, Rotaries VIDEO HDMI Inputs The 2/4 HDMI inputs are located on the left side of the back panel. › Blue LED illuminates solid to indicate an active HDMI signal is incoming. › HDMI Output 1 HDMI located on the center to right side of the back panel. ›... - Page 10 Supported standard 4K Video Formats: Resolution Bandwidth 1 4K@24/25/30 [4:4:4] 8bit < 10.2Gbps 2 4K@24/25/30 [4:2:2] 8/10/12bit < 10.2Gbps 3 4K@50/60 [4:2:0] 8bit < 10.2Gbps 4 4K@24/25/30 [4:4:4] 10/12bit < 18Gbps 5 4K@50/60 [4:2:2] 8/10/12bit < 18Gbps 6 4K@50/60 [4:2:0] 10/12bit <...
- Page 11 PCM Digital Audio Output RCA audio output with de-embedded audio from the selected HDMI source › SPDIF IEC 60958 format › Compatible with sampling rates up to 192KHz › Supports multi-channel Dolby surround formats up to 5.1 and DTS ® ™...
- Page 12 TCP/IP Control Port Default static IP address is 192.168.1.239, port 23 » Connect an Ethernet cable from the KD-Pro2x1X/KD-Pro4x1X to a network router or connect a » straight through cable directly from a PC Unit configuration, control, and firmware updates are most commonly achieved with Key Digital »...
- Page 13 Used for configuration and control from PC via KDMS Pro, KDMS, or third-party control terminal » Used for firmware updates (consult with Key Digital tech support before updating firmware) » Supports USB driver for Windows 10, 7, XP, Mac, Linux »...
- Page 14 Forced HPD Troubleshooting Tool When ON, Hot Plug Detection voltage is fixed on to the connected display » Standard HPD behavior when set to OFF position » Auto Sensing ON » Unit will automatically select a newly detected active source. If current source is disconnected »...
-
Page 15: Integration With Kd-Amp220
KD-AMP220 Control mode enabled › KD-Pro2x1X/KD-Pro4x1X can receive TCP/IP commands and forward to KD-AMP220 via RS-232 to enable a video switching + enforced sound and speech system with a user-friendly pre-built KD-App GUI. In this configuration, control of KD-AMP220 is 1-directional. - Page 16 Audio/Video properties section. To control the mix level of KD-AMP220’s microphone input, choose the selection box for Microphone Control. As the Key Digital app scans the network and detects KD-Pro2x1X/KD-Pro4x1X, it will make the KD- AMP220 controls visible for an all-in-one page user interface.
-
Page 17: Ir Remote Control
See Auto Sensing section of Connections, LEDs, Buttons, Slide Switches, Rotaries section for more information. TCP/IP & RS-232 Commands KD-Pro2x1X/KD-Pro4x1X allows control over serial interface for bi-directional communication. Use pins 4, 5, and 6 for RS-232 communication Serial interface may also be accessed using a TCP/IP connection Default IP address is 192.168.1.239, with default port 23... - Page 18 » After a new command is received, a prompt should be sent back » KD-Pro2x1X Help Command (H). Returns entire API in readable format: ------------------------------------------------------------------------- Key Digital Systems HELP ------------------------------------------------------------------------- KD-Pro2x1X System Address = 00 F/W Version : 1.00 -- Azz...
- Page 19 -- SPC DF00 : Reset to Factory Defaults without Network Reset ------------------------------------------------------------------------- KD-Pro2x1X Status Command (STA). Returns unit status and settings in readable format: ------------------------------------------------------------------------- Key Digital Systems HELP ------------------------------------------------------------------------- KD-Pro4x1X System Address = 00 F/W Version : 1.00 -- Azz...
- Page 20 -- Audio Output : Analog = Enabled, Optical = Enabled AMP220 Mode = OFF, MIC Mode = OFF ------------------------------------------------------------------------- KD-Pro4x1X Status Command (STA). Returns unit status and settings in readable format: ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- KD-Pro4x1X, System Address=00, Device Name: PRO4x1_0001 F/W Version : 1.00...
-
Page 21: Specifications
Specifications Technical: HDMI Input (Each): HDMI Connector, Type A, 19 Pin Female » HDMI Output: HDMI Connector, Type A, 19 Pin Female » HDMI Bandwidth: TMDS bandwidth 18Gbps » DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL) »... -
Page 22: Important Product Warnings & Safety Instructions
Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital Warranty ® and risk damage to your unit and associated equipment. -
Page 23: Contacting Key Digital
Phone: 914-667-9700 › E-mail: rma@keydigital.com › Warranty Information All Key Digital products are built to high manufacturing standards and should provide years of trouble-free ® operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm... - Page 24 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
