USB Commands
KD-EXWPSTX allows control over serial interface for bi-directional communication.

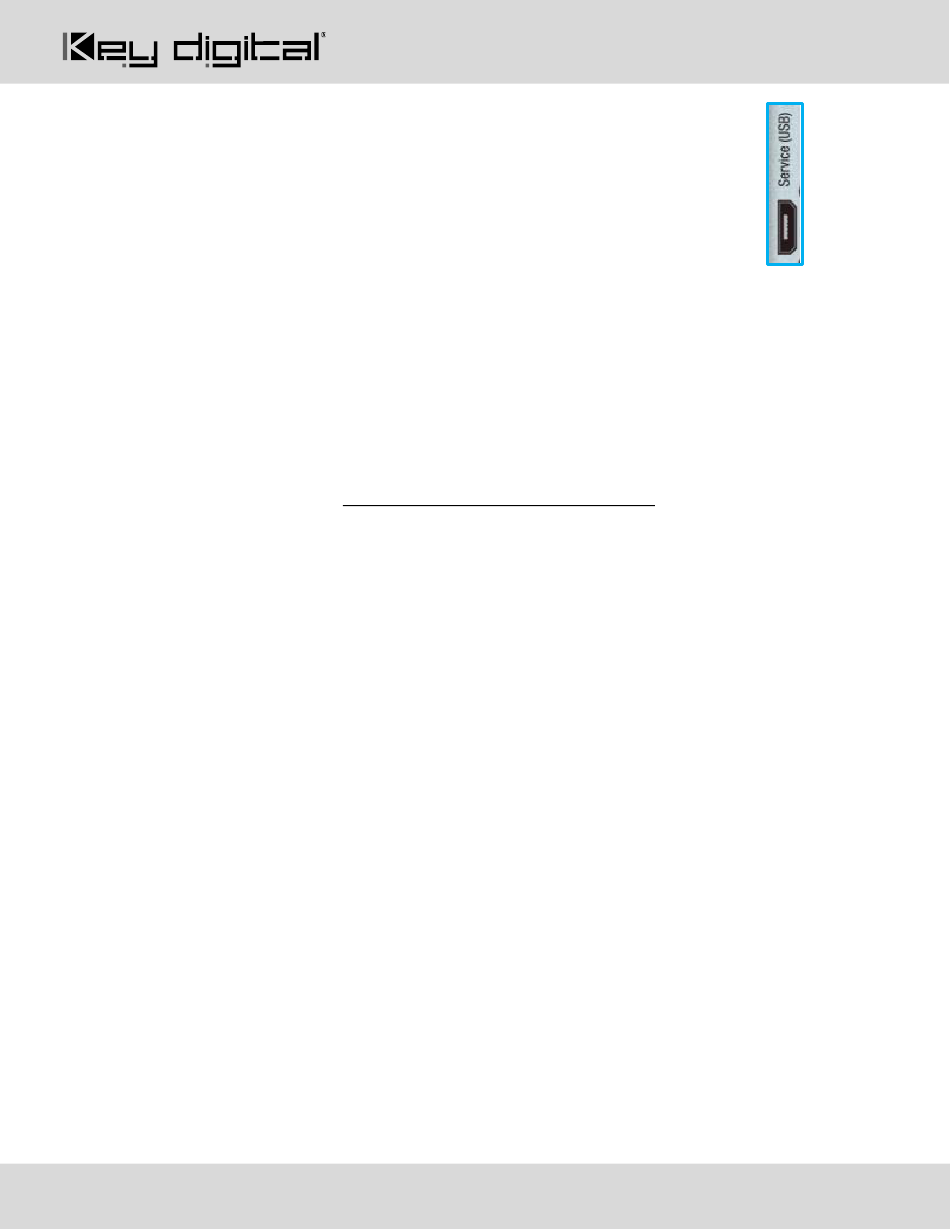

Serial interface is accessed using the USB Service port
Connection Protocol
Baud Rate = 115,200 bits per second as default
Data Bits = 8
Stop Bits = 1
Parity = None
Flow Control = None
Carriage Return = Required at end of each string
Notes:
Commands are not case-sensitive
Spaces are shown for clarity; commands should NOT have any spaces
After a new command is received, a prompt should be sent back
Help Command (H). Returns entire API in readable format:
KD-EXWPSTX> H
-------------------------------------------------------------------------
--
-------------------------------------------------------------------------
--
KD-EXWPSTX
--
-- H
: Help
-- STA
: Show Global System Status
--
-- Video Output Setup Commands: yy = [01-02,U,D]
-- SPO SI yy
: Set Output to Video Input yy
-- SPO01 SI yy
: Set Output to Video Input yy
-- SPO ON/OFF
: Set Output ON/OFF
-- SPO DBG ON/OFF : Set Output Debug Mode ON/OFF
-- EDID Setup, xx = [01-02,A], yy = [01], zz = [01-15] (A=All)
Street Mt. Vernon, NY 10553 • www.keydigital.com
rd
521 East 3
Key Digital Systems HELP
F/W Version : 1.00
Rev 1.0 – Nov, 2020
--
--
--
--
--
--
--
--
--
--
--
--
10
