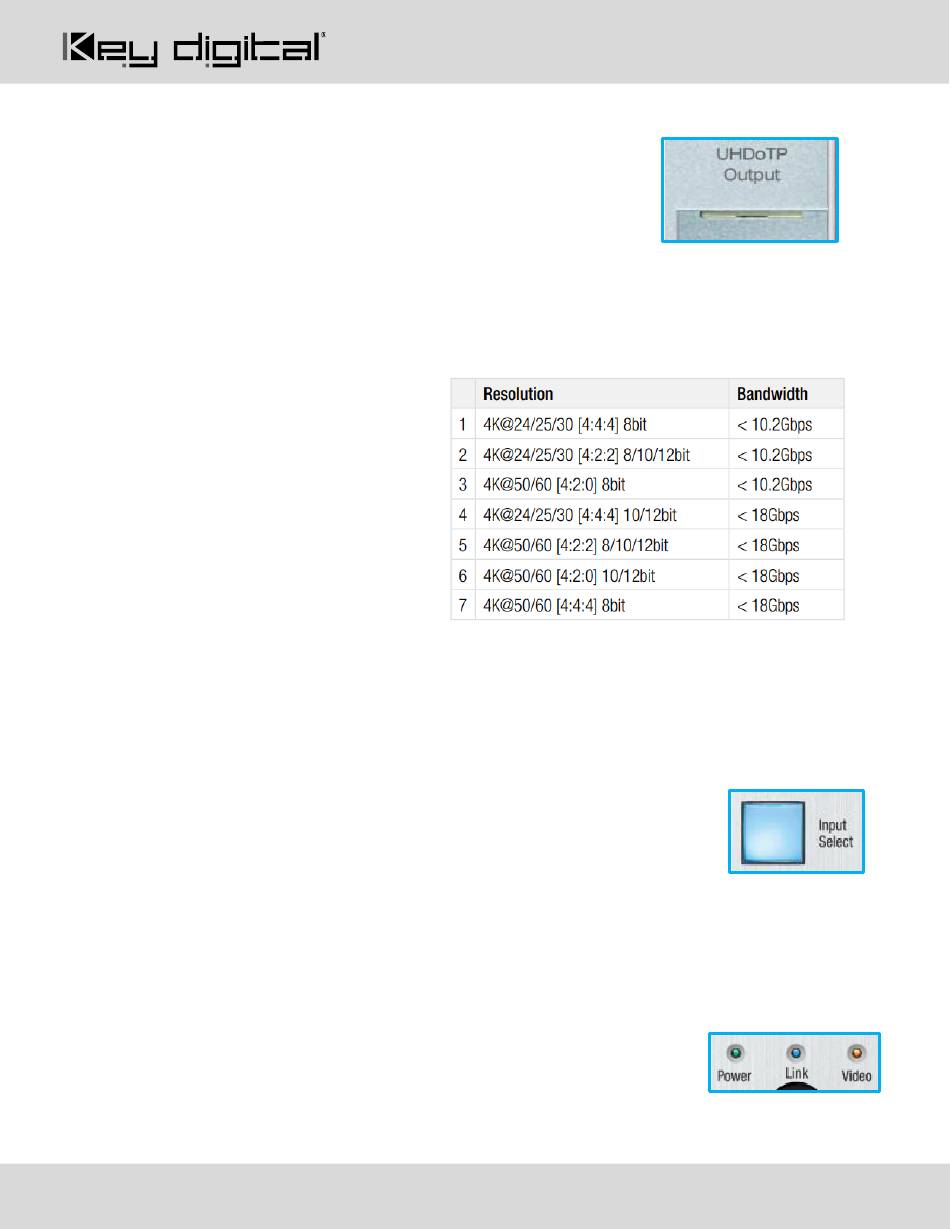

UHDoTP Output (Rear): Connect a CAT5e/6 cable to the Rx unit's UHDoTP Input port using CAT5e/5 UTP or
STP in 568-B termination.
UHD/4K: Up to 115ft (35m)
1080p: UP to 164 ft (50m)
Minimum CAT5e/6 cable length required: 17ft (5m)
Supports Dolby®, DTS™ (5.1 / 6.1 formats max)
Receives 12V Power over CAT from KD-EX18GRx
Not compatible with HDBaseT or third-party Rx. Connecting to incompatible Rx may cause
damage and result in void of warranty.
Supported standard 4K video formats:
Input Select Button: Used to toggle between HDMI and USB C source input or to activate Auto Switch mode
Press and hold for 3 seconds to activate Auto switching. Solid illuminator of the back lighting indicates
mode has been set
Manually switching with the Input Select button will override the Auto Switch setting.
If Auto Switch has been set to FORCED ON via software command, the Input Select button does not
control switching
Press and hold for 10 seconds to reset the KD-EXWPSTx to factory default:
o EDID is setting 3 (1080p with 2ch audio)
o Input source is HDMI
o Forced HPD is OFF
Power LED:
Color:
Green
Solid illumination during power ON state, as provided by healthy connection with Rx and healthy Power
over CAT extension
Steady blink if unit has a power short
Link LED:
Color:
Blue
Solid illumination from healthy UHDoTP link between Tx and Rx unit
Street Mt. Vernon, NY 10553 • www.keydigital.com
rd
521 East 3
Rev 1.0 – Nov, 2020
8
