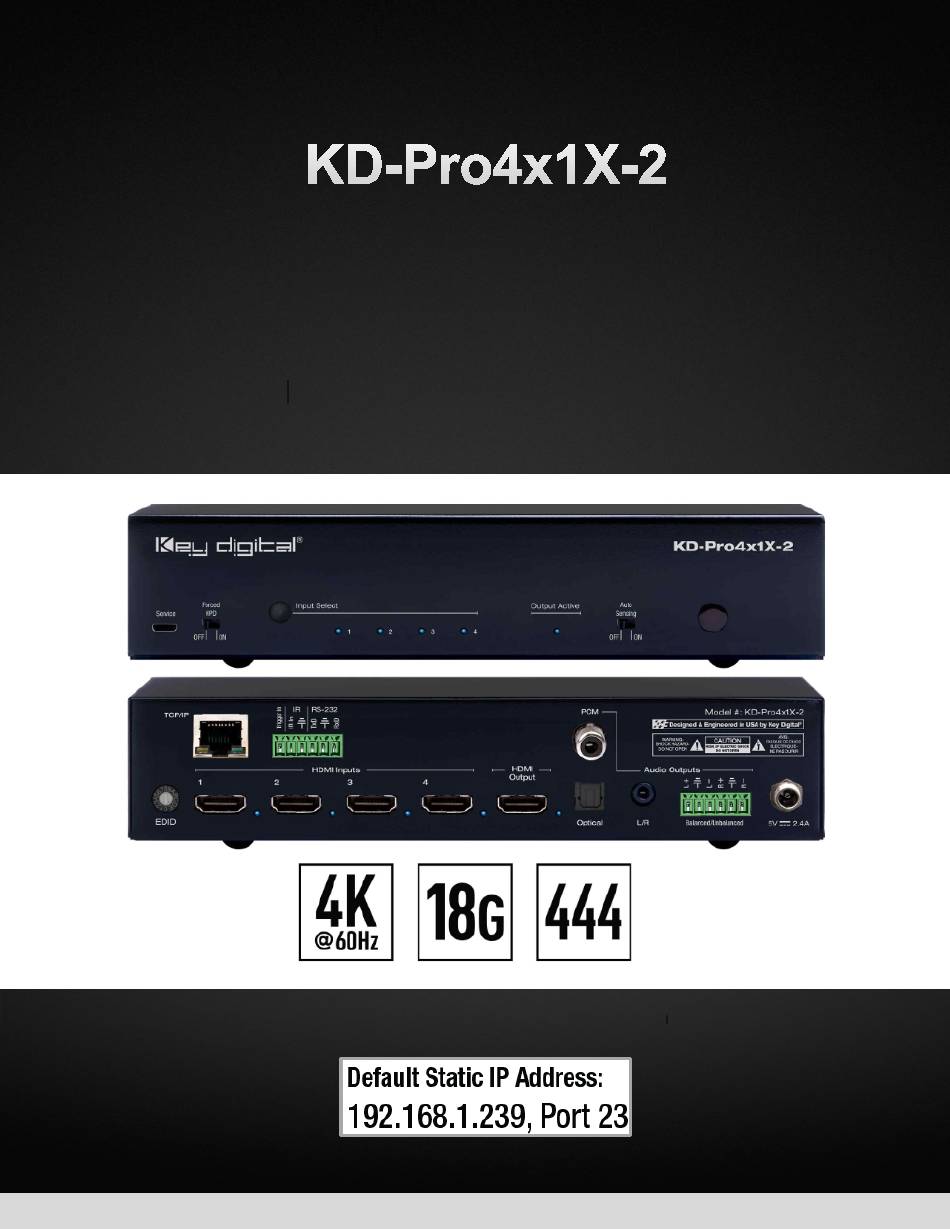

- Page 1 Rev 1.0 – Sep, 2023 KD-Pro4x1X-2 4 Input 4K 18Gbps Pro Series HDMI Switcher with Web UI, Auto-Switching, Analog and Digital Audio De-Embedding Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
-
Page 2: Table Of Contents
Rev 1.0 – Sep, 2023 Table of Contents About KD-Pro4x1X-2 Quick Setup Guide Connect Configure Control Application Example Connections, Buttons, and LEDs Programming-Free System Wiring TCP/IP and RS-232 Commands IP to RS-232 Command Forwarding Specifications Warranty Information Product Warnings & Safety Instructions Operation Manual Please visit www.keydigital.com... -
Page 3: About Kd-Pro4X1X-2
KD-App ready Additional Features • Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App and Key Digital Management Software™ Pro (KDMS™ Pro) PC setup Software • IP to RS-232 Command forwarding: Commands received on the TCP/IP port may be output on the RS-232 port for controlling Key Digital KD-Amp220, KD-CamUSB, or third-party RS-232 controllable devices with ASCII format commands. -
Page 4: Quick Setup Guide
Configure KD-PRO4X1X-2 with Key Digital Management Software Pro (KDMS Pro). Download HERE 1. Open the Key Digital® Management Software™ Pro software and perform a USB scan (fig. 1) Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3... - Page 5 4. Enter the desired name for the KD-Pro4x1X-2. Ie “HDMI Switch” or “Conference Room” 5. Save (fig. 2d). 6. If using the Key Digital iOS app (AKA KD-App), Web UI, or other 2-way control systems, set the desired Input/Output names by entering the Input/Output Settings section of the properties window, and selecting the Change Input/Output Name button (fig.
-
Page 6: Control
Rev 1.0 – Sep, 2023 Control Option 1: Control via Remote Control Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3... - Page 7 Option 2: Control via KD-App, KDMS Pro™ KD-Pro4x1X-2 is controllable by Key Digital’s user-friendly iOS App (downloadable in the App Store) or Key Digital® Management Software™ Pro (downloadable here). 1. Connect and Configure your KD-Pro4x1X-2 as described in the Connect &...
- Page 8 Rev 1.0 – Sep, 2023 7. Enter the Video Switching, Camera Control, and/or Audio Control tabs to control the respective features of the system. NOTE: See the Programming-Free Presentation System Wiring section for RS-232 wiring instructions for optional Camera and Amplifier control wiring. Street Mt.
- Page 9 Rev 1.0 – Sep, 2023 Option 4: Control via professional control system KD-Pro4x1X-2 allows control over serial interface for bi-directional communication. • For RS-232 control use pins 4, 5, and 6 of the Unit Control port. Baud Rate is 57,600 •...
-
Page 10: Application Example
Rev 1.0 – Sep, 2023 Application Example Conference Room AV switching system with Key Digital amplifier and PTZ web cam integrated and controlled via web UI without any programming required. Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3... -
Page 11: Connections, Buttons, And Leds

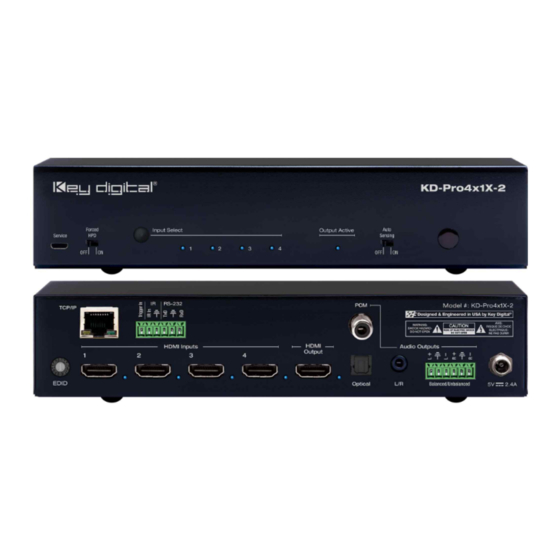

Rev 1.0 – Sep, 2023 Connections, Buttons, and LEDs REAR CONNECTIONS and ROTARY HDMI Inputs (4) • The 4 HDMI inputs are located on the left side of the back panel. • Blue LED illuminates solid to indicate an active HDMI signal is incoming. HDMI Output •... - Page 12 Rev 1.0 – Sep, 2023 EDID Handshaking Rotary • EDID authentication is provided from the unit to the selected input/source. • The EDID file (AKA “handshake” is selected using the EDID rotary on the unit and provides a list of compatible video and audio formats as well as digital data, informing the source device what it should...
- Page 13 Connect ethernet cable from the KD-Pro4x1X-2 to a network router or connect a straight through cable directly from a PC • Unit configuration, control, and firmware updates are achieved with Key Digital Management Software™ Pro (KDMS™ Pro) downloaded HERE. •...
- Page 14 Used for configuration and control from PC via KDMS Pro, or third-party control terminals • Used for firmware updates (consult with Key Digital tech support before updating firmware). o Note: After updating firmware, all unit settings are restored to defaults except IP information.
-
Page 15: Programming-Free System Wiring
Programming-Free Presentation System Wiring KD-Pro4x1X-2 can forward commands received on the TCP/IP port to the RS-232 port to control Key Digital’s KD-CamUSB PTZ web cam and KD-Amp220 pre-amp / amplifier to build a complete integration system for presentation and meeting spaces without any programming. -
Page 16: Tcp/Ip And Rs-232 Commands
= the currently selected input (1-4) o The response terminates with a carriage return followed by a line feed Help Command (H). Returns entire API in readable format: ------------------------------------------------------------------------- Key Digital Systems HELP ------------------------------------------------------------------------- KD-Pro4x1X-2 F/W Version : 1.00... - Page 17 Rev 1.0 – Sep, 2023 -- PN : Power ON -- STA : Show Global System Status -- Video Output Setup Commands: yy = [01-02,U,D] -- SPO SI yy : Set Output to Video Input yy -- SPO01 SI yy : Set Output to Video Input yy -- SPO ON/OFF : Set Output ON/OFF...
- Page 18 -- FWD(xxxxxxxxxx): Forward ASCII string xxxxxxxxxx received on IP port to RS-232 port -- -- Reset to Factory Defaults without Network Reset ------------------------------------------------------------------------- Status Command (STA). Returns unit status and settings in readable format: ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- KD-Pro4x1X-2, Device Name: PRO4x1X-2_0001 F/W Version : 1.00...
-
Page 19: Ip To Rs-232 Command Forwarding
Rev 1.0 – Sep, 2023 IP to RS-232 Command Forwarding KD-Pro4x1X-2 can forward ASII strings received on the TCP/IP port to the RS-232 port for one-directional control of RS-232 device(s) without using ports from a master controller. This feature is how KD-Pro4x1X-2’s Programming-Free Presentation System is achieved and may also be utilized in other systems. -
Page 20: Specifications
Product Weight: Weight: 5.62 lbs / 2.55 kg Warranty Information All Key Digital® products are built to high manufacturing standards and should provide years of trouble-free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. - Page 21 Damage to the power supply or power plug o Exposure to rain or moisture Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and risk damage to your unit and associated equipment. NOTES Street Mt.
- Page 22 Rev 1.0 – Sep, 2023 Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
