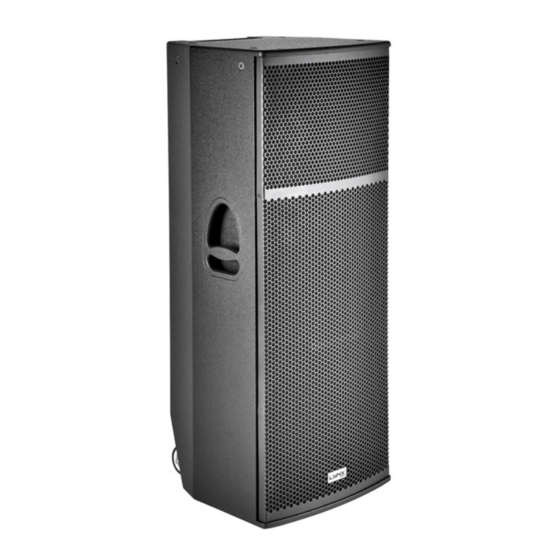

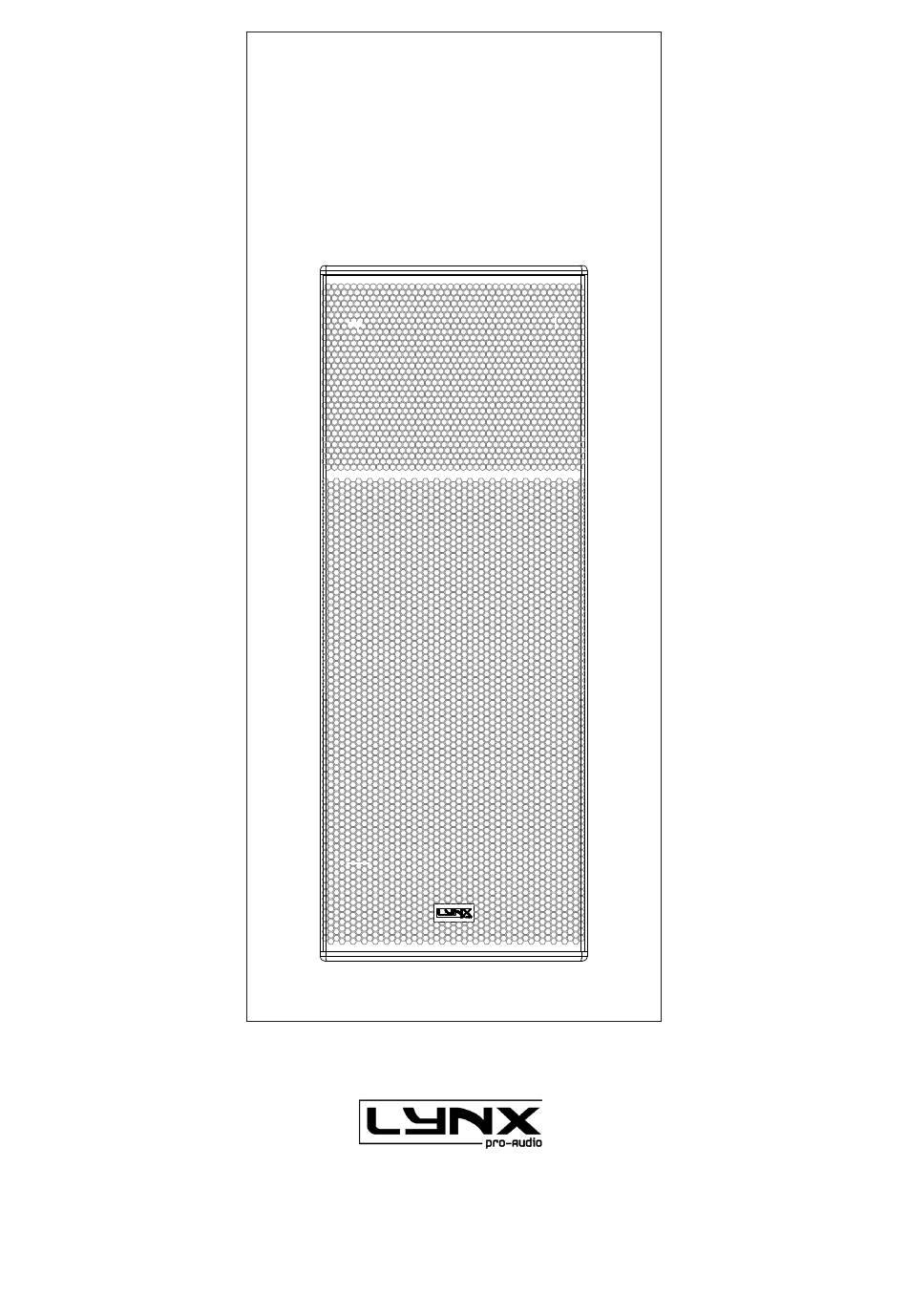

- Page 1 GXR series USER MANUAL GXR-215 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
-
Page 3: Table Of Contents
INTRODUCTION The GXR-215 enclosure has an excellent power-size ratio, does not need to carry out an external amplification rack and is the ideal solution as a compact portable PA system. The enclosure has a 1400 W class D amplifier switching power supply, with DSP processor and linear phase FIR filters. -
Page 4: Safety Precautions
“Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker. -
Page 5: System Overview
16A Neutrik powerCon TRUE1 TOP with looping output Finish: Polyurea coating high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 1140 x 444 x 486 mm (H x W x D) Weight: 45 kg (99 lbs) GXR-215 measurements • Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 6: Back Panel
GXR Series User Manual GXR-215 back panel IPS display & digital control AES/EBU (optional) digital INPUT digital Through connection Multifunction analog analog joystick INPUT Through control Ethernet Main link Main input Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 7: Connectors And Connections
Connect to input 1.- EARTH 1 Earth 2.- LIVE (+) 2 Live(+) 3.- LIVE (-) 3 Live(-) Connect to output OUTPUTS 1.- EARTH 1 Earth 2.- LIVE (+) 2 Live(+) 3.- LIVE (-) 3 Live(-) Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 8: Configuration Panel
On the second screen you can modify some parameters. • Gain • Mute • Polarity • Delay • High Pass Filter: You can setup a High Pass filter selecting type, frequency and order. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 9: Select And Run Preset
The last screen shows you some general information regarding the cabinet’s components. Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 10: Online Control System
User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 11: Rainbow 3D Acoustic Simulation Software
• Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry. -
Page 12: Hardware And Accessories
GXR Series User Manual HARDWARE AND ACCESSORIES The GXR series include some accessories for installation and transport. The GXR-215 includes: AGR-10 FD-GXR215 M10 eye bolt for the GXR-215 Nylon protection cover for the GXR-215 Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 13: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 14 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
