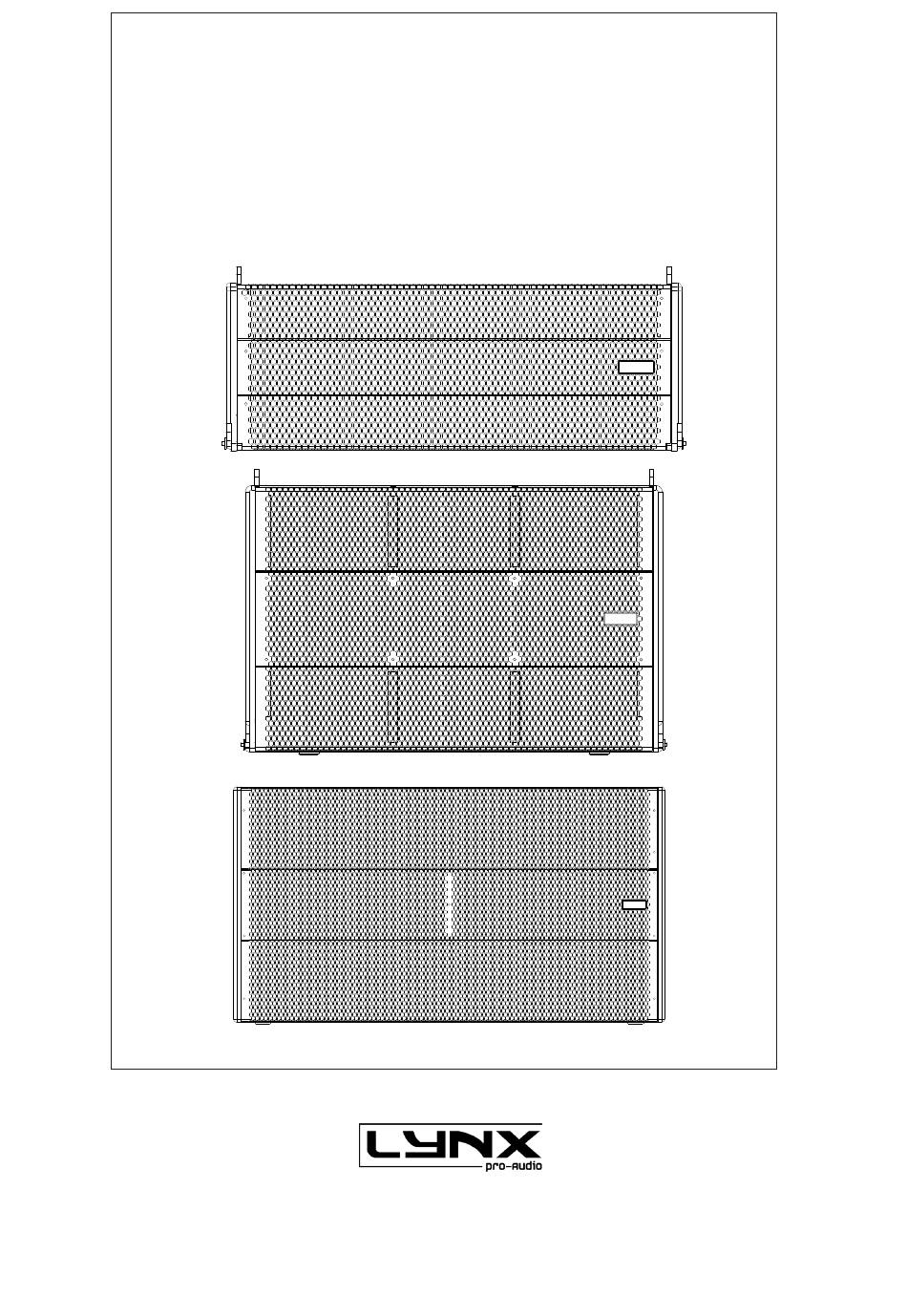

GXR series
USER MANUAL
GXR-LA10A
GXR-D15A
GXR-D18A
Lynx Pro Audio S.L.
Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com
V.21.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lynx GXR Series

  • Page 1 GXR series USER MANUAL GXR-LA10A GXR-D15A GXR-D18A Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
  • Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
  • Page 3: Table Of Contents

    SELECT INPUT: DIGITAL OR ANALOG SELECT AND RUN PRESET • HARDWARE AND ACCESSORIES • HOW TO USE FLYING FRAM SV-GXR • APPLICATION EXAMPLES FOR GXR-LA10A • ONLINE CONTROL SYSTEM • RAINBOW 3D ACOUSTIC SIMULATION SOFTWARE • CERTIFICATIONS AND GUARANTEE Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 4 “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.
  • Page 5: System Overview

    16A Neutrik powerCon TRUE1 TOP with looping output Finish: Polyurea coating high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 298 x 790 x 436 mm (H x W x D) Weight: 31 kg (68.2 lbs) • GXR-LA10A measurements Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 6: Gxr-D15A

    16A Neutrik powerCon TRUE1 TOP with looping output Finish: Polyurea coating high grade resistant paint Material: 18 mm Premium birch plywood Dimensions: 505 x 790 x 690 mm (H x W x D) Weight: 63 kg (139 lbs) • GXR-D15A measurements 807.5 Lynx Pro Audio S.L www.lynxproaudio.com...

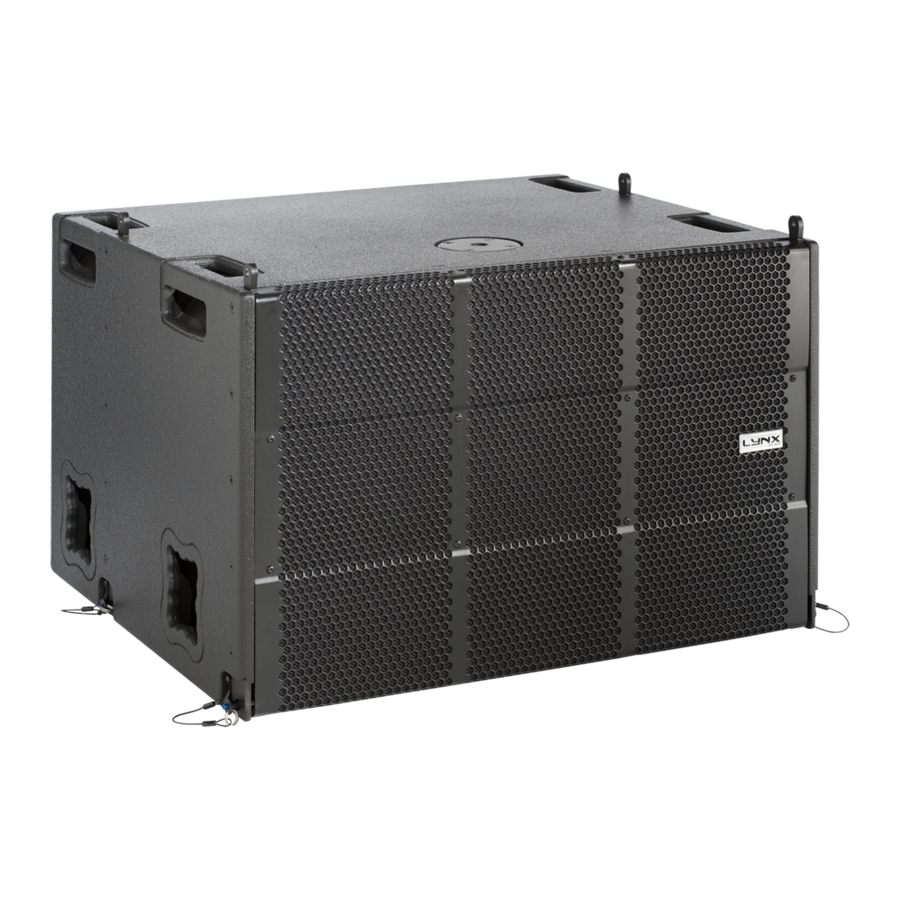

  • Page 7: Gxr-D18A

    16A Neutrik powerCon TRUE1 TOP with looping output Finish: Polyurea coating high grade resistant paint Material: 18 mm Premium birch plywood Dimensions: 605 x 1100 x 750 mm (H x W x D) Weight: 92 kg (202 lbs) • GXR-D18A measurements 807.5 Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 8 GXR-D15A and GXR-D18A back panel: Both cabinets GXR-D15A and GXR-D18A have the same rear pannel, including the connectors and digital control display. USB connection Ethernet* Optional LCD display & digital control Signal link Signal input Main input Main link Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 9: Connectors And Connections

    Connect to input 1.- EARTH 1 Earth 2.- LIVE (+) 2 Live(+) 3.- LIVE (-) 3 Live(-) Connect to output OUTPUTS 1 Earth 1.- EARTH 2 Live(+) 2.- LIVE (+) 3.- LIVE (-) 3 Live(-) Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 10: Flown Connection Example

    GXR Series User Manual CONNECTORS AND CONNECTIONS FLOWN CONNECTION EXAMPLE (mono channel): 4 tops GXR-LA10A + 2 subs GXR-D15A • Link AC main input Link Link Link AC main input Signal input Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 11 CONNECTORS AND CONNECTIONS STACKED CONNECTION EXAMPLE (mono channel): 3 tops GXR-LA10A + 1 sub GXR-D15A • Model GXR-LA10A Link Model GXR-LA10A Link AC main Model GXR-LA10A input Model GXR-D15A AC main input Signal input STACKED Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 12 GXR Series User Manual CONNECTORS AND CONNECTIONS STACKED CONNECTION EXAMPLE (mono channel): 3 tops GXR-LA10A + 1 sub GXR-D15A • Link Link Link AC main input Signal input Signal input Link AC main input Link Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 13: Configuration Panel

    To confirm your selection press OK (3) until the progress bar finishes. The display will show an inverted D (digital) or an inverted A (analog) so you can always know if the input is digital or analog. Fig 3 Fig 2 Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 14: Select And Run Preset

    To re-activate the light simply press the OK button. Fig 2 Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last configuration when restarted. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 15: Hardware And Accessories

    GXR Series User Manual HARDWARE AND ACCESSORIES The GXR series include some accessories for installation and transport. The GXR-LA10A, GXR-D15A and GXR-D18A include: GXR-LA10A accessories: SV-GXR FD-GXRLA10 Flying frame and stacking system for GXR-LA10A and Nylon protection cover for GXR-D15A. You can use this...
  • Page 16 GXR Series User Manual HARDWARE AND ACCESSORIES The GXR series include some accessories for installation and transport. The GXR-LA10A, GXR-D15A and GXR-D18A include: GXR-D18A accessories: FD-GXRLA10 CA-GXRLD15 Nylon protection cover for Transport dolly for GXR-D15A either 4 GXR-LA10A cabinets GX-18WKIT...
  • Page 17: How To Use Flying Fram Sv-Gxr

    All the cabinets are hung from this flying frame, one beneath the other correspondingly. Different accessory pieces are available to fit all your needs. Different accessory pieces are available. EXTERNAL UPPER PIECE BALL PINS FLYING FRAME TO FIT BALL PINS TO FIT TO FIT Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 18 Its position is adjustable and locked by steel pins. EXTERNAL UPPER PIECE BALL PINS TO FIT TO FIT TO FIT TO FIT BALL PINS Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 19 BALL PIN TO FIT ANGULATION TO FIT BALL PIN ANGULATION TO FIT BALL PIN BALL PIN Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 20 All the fixations are made by a special steel pin, designed for maximum security. EXTERNAL UPPER PIECE BALL PINS TO FIT TO FIT TO FIT TO FIT BALL PINS Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 21 The support of the cabinets to the flying system and between them is carried out with special 6mm steel pins. To extract or fix the steel pins it is necessary to press the central button of the pin. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 22 Example 2 A very practical transport dolly is available for touring applications. This dolly transport up to 4 top enclosures including the flying frame. And a nylon protection cover is also available for this pack. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 23: Application Examples For Gxr-La10A

    GXR Series User Manual APPLICATION EXAMPLES FOR GXR-LA10A The GXR-LA10A can be used for a multitude of applications: • 1 sub GXR-D15A + 4 GXR-LA10A in flown configuration + 2 subs GXR-D18A for low frequencies Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 24 GXR Series User Manual APPLICATION EXAMPLES FOR GXR-LA10A • 4 GXR-LA10A in flown configuration • 4 GXR-LA10A in stack configuration • 3 GXR-LA10A + 1 sub GXR-D15A in stack configuration Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 25: Online Control System

    User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase.
  • Page 26 • Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry.
  • Page 27 Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC...
  • Page 28 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.

This manual is also suitable for:

Gxr-la10aGxr-d15aGxr-d18aGxr-18s
