GR-12

USER MANUAL

V.13.04
Lynx Pro Audio S.L.
Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lynx GR-12

  • Page 1: User Manual

    GR-12 USER MANUAL V.13.04 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...

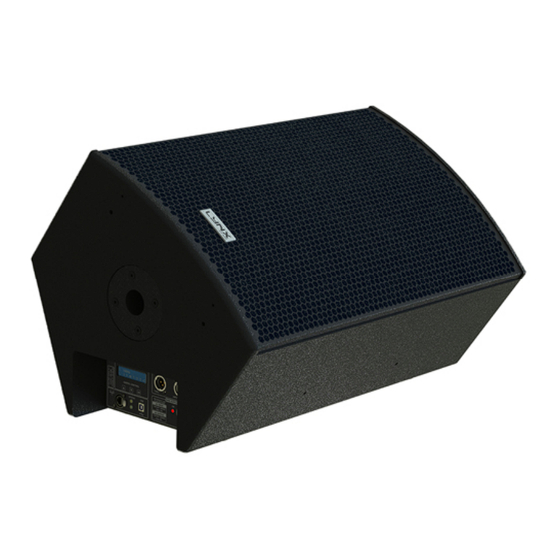

  • Page 2 GR-12 Class D Powered (bi-ampli ed) Integrated Digital Processing Internal temperature control Electronic protection High quality components FIR linear phase  ltering Online control available LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 3 CB SCHEME, IEC SYSTEM FOR CONFORMITY TESTING AND CERTIFICATION OF ELECTRICAL EQUIPMENT CE CERTIFICACTION, EUROPEAN PRODUCT This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2013. All rights reserved.
  • Page 4: Table Of Contents

    CONNECTORS AND CONNECTIONS - CONFIGURING THE CABINET DSP OPTIONS PRESET LIST FIR FILTERS CONFIGURATION PANEL SELECT AND RUN PRESET - ONLINE CONTROL SYSTEM - CONFIGURING ETHERNET - CERTIFICATIONS AND GUARANTEE LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 5: Safety Precautions

    When  ying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only  ying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals.
  • Page 6: Specifications

    GR-12 INTRODUCTION To facilitate, correct and reliable use of the stage monitor GR-12 we have designed this instruction manual. Please read the manual carefully before proceeding to install the system. Please observe the technical data carefully and do not ignore the instructions included within this manual.
  • Page 7: Gr-12 Back Panel

    2.- LIVE (+) 3.- LIVE (-) 3.- LIVE (-) XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 8 CAUTION: Do not connect - Earth or disconnect the AC Power co n nec tor s u nd er lo ad . CONNECTION EXAMPLE: 3 GR-12 CABINETS Connect to AC output Connect to signal output LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 9: Configuring The Cabinet Dsp Options

    Finite Impulse Response (FIR)  lters are used in the signal processing of the GR-12 cabinet. FIR is a type of di- gital  lter with linear phase characteristics. This frees system designers from the constraints of phase anomalies associated with analogue  lters or their digital versions (IIR, In nite Impulse Response). When properly used, FIR ...
  • Page 10: Configuration Panel

    The display will indicate “Loading DSP” (Fig4) Fig 3 Fig 4 Fig 2 Note: In case of a power cut, the DSP will save its last con guration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 11: Online Control System

    GR-12 ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase.
  • Page 12: Configuring Ethernet

    GR-12 CONFIGURING ETHERNET TO WORK WITH THE GR-12 There are two possible ways to connect: 1.- Connecting through an ETHERNET SWITCH/HUB:: - You will need a normal CAT5 Cable. 2.- Connecting through a Wirless ETHERNET. Let us now proceed to con gure the Ethernet network, setting the IP address of the computer as static. To do this go to: START >...
  • Page 13 Ethernet Device into the Con guration menu. It will open a different screen, as follows, there you can see your Network con guration, and the cabinets cur- rently connected. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 14 Remember there cannot be two devices with exactly the same IP address, the last set of three numbers has to be different and unique to each one of the devices. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 15 Returning to the main screen, we can see each cabinet showing: RMS levels, Input clip, power module tempera- ture, compression levels, air absorption compensation and cabinet angulation, as well as displaying the cabinet model and IP address. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 16 It will open the cmd.exe from where you can type the IPCONFIG command ( ipcon g + Enter), which will show your actual IP settings. Here we can see that this PC has IP set as 192.168.2.99. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 17 If the IP is in use, the device will respond to the Ping, and we will obtain this information: You now have the Cabinets working in the ETHERNET Network Enviroment. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 18: Certifications And Guarantee

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product please contact Lynx Pro Audio S.L. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
  • Page 19 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L.
