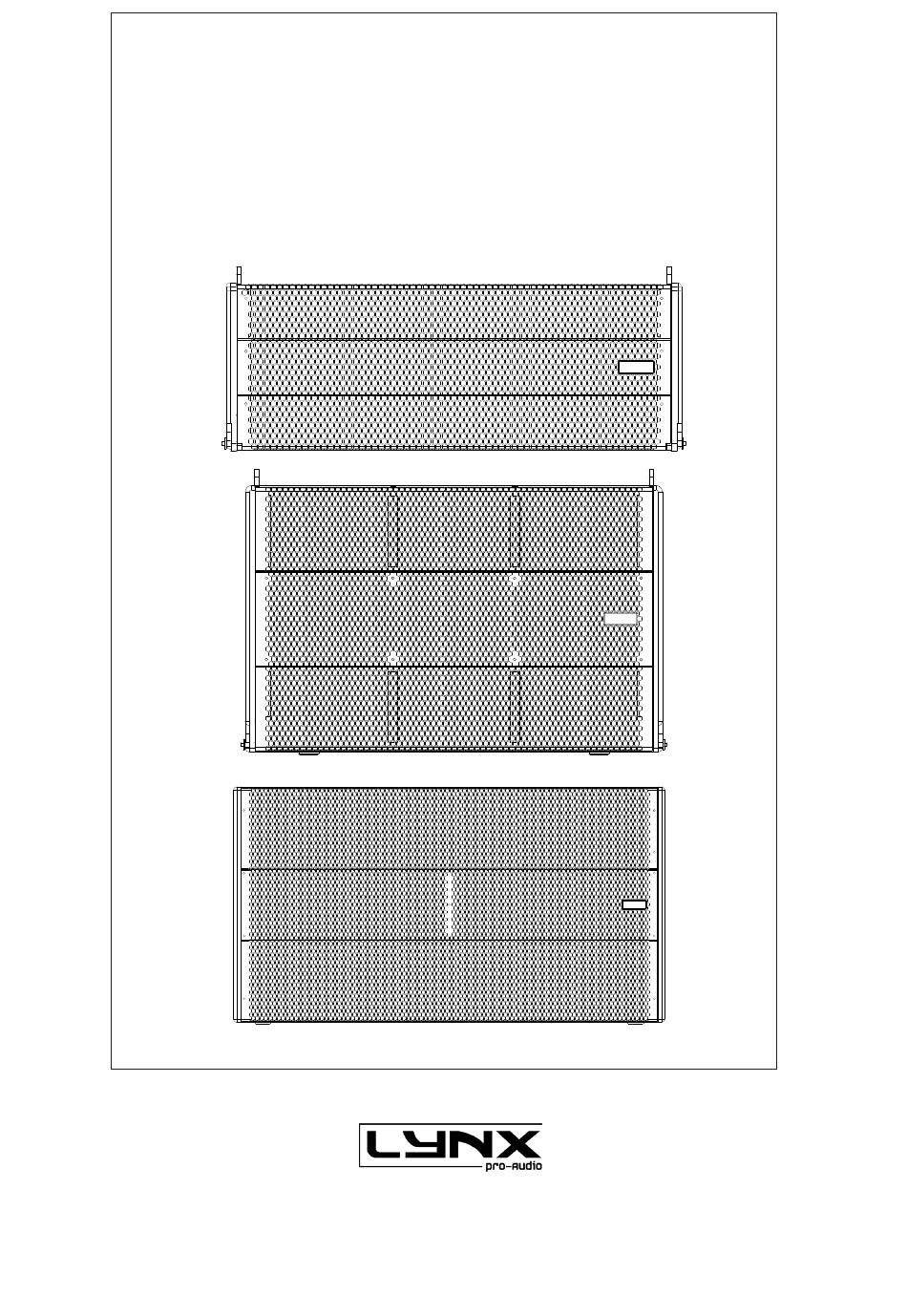

- Page 1 GXR series USER MANUAL GXR-LA210A GXR-D15A GXR-D18A Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
-
Page 3: Table Of Contents

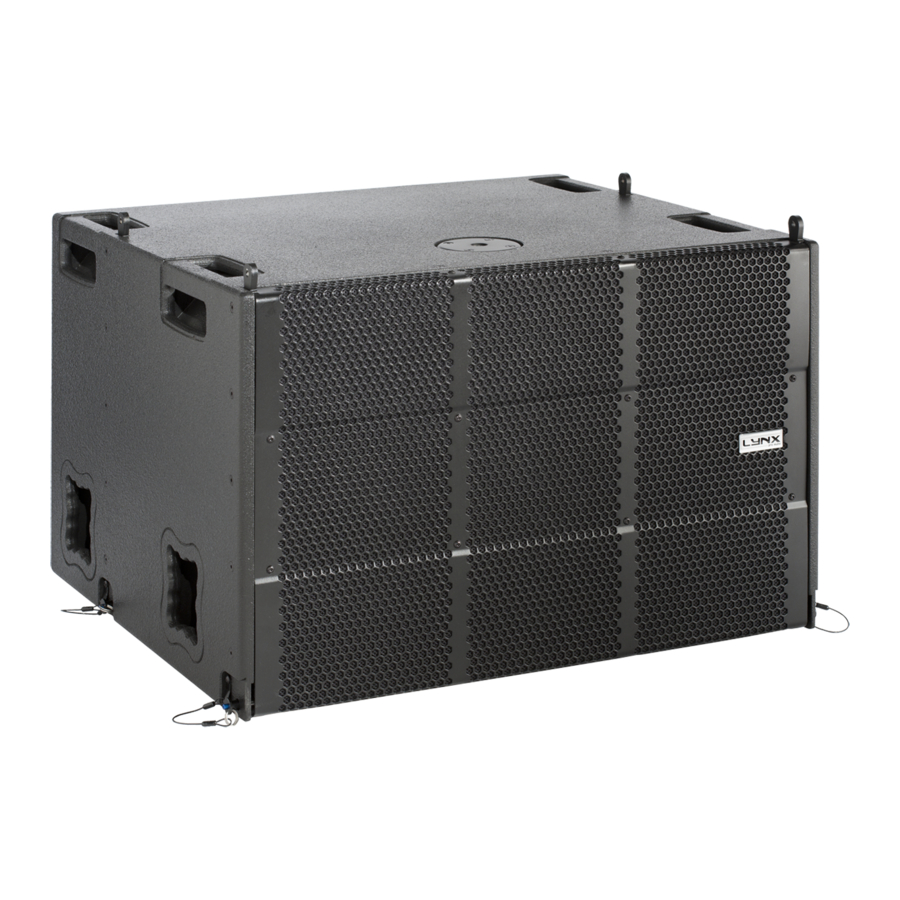

User Manual INTRODUCTION Both compact and powerful, the GXR Series is our latest solution for portable, light weight, powered speakers. The series incorporates three full range (two-way) models including 12”, 15”, dual 15” and one 18” subwoofer and three new cabinets: GXR-LA210A (our best-selling line array), and GXR-D15A and GXR-18A subwoofers. -
Page 4: Safety Precautions
“Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker. -
Page 5: System Overview
16A Neutrik powerCon TRUE1 TOP with looping output Finish: Polyurea coating high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 298 x 790 x 436 mm (H x W x D) Weight: 31 kg (68.2 lbs) GXR-LA210A measurements • Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 6: Gxr-D15A
16A Neutrik powerCon TRUE1 TOP with looping output Finish: Polyurea coating high grade resistant paint Material: 18 mm Premium birch plywood Dimensions: 505 x 790 x 690 mm (H x W x D) Weight: 63 kg (139 lbs) GXR-D15A measurements • 807.5 Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 7: Gxr-D18A
16A Neutrik powerCon TRUE1 TOP with looping output Finish: Polyurea coating high grade resistant paint Material: 18 mm Premium birch plywood Dimensions: 605 x 1100 x 750 mm (H x W x D) Weight: 92 kg (202 lbs) GXR-D18A measurements • 807.5 Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 8: Back Panel
GXR Series User Manual GXR-LA210A back panel • GXR-LA210A back panel: Main input Main link AES/EBU (optional) digital INPUT IPS display & digital control digital Through Multifunction joystick control connection analog analog Through INPUT Ethernet Lynx Pro Audio S.L www.lynxproaudio.com... - Page 9 Both cabinets GXR-D15A and GXR-D18A have the same rear pannel, including the connectors and digital control display. AES/EBU (optional) digital digital IPS display & INPUT Through digital control Multifunction joystick control analog analog INPUT Through Ethernet Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 10: Connectors And Connections
2 Live (+) 3 Live (-) 3 Live (-) Connect to output 1 Earth OUTPUTS 2 Live (+) 1.- EARTH 1 Earth 2 Live (+) 2.- LIVE (+) 3.- LIVE (-) 3 Live (-) 3 Live (-) Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 11: Flown Connection Example
GXR Series User Manual CONNECTORS AND CONNECTIONS FLOWN CONNECTION EXAMPLE (mono channel): 4 tops GXR-LA210A + 2 subs GXR-D15A • Link AC main input Link Link Link AC main input Signal input Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 12: Stack Connection Example
CONNECTORS AND CONNECTIONS STACKED CONNECTION EXAMPLE (mono channel): 3 tops GXR-LA210A + 1 sub GXR-D15A • Model GXR-LA10A Link Model GXR-LA10A Link AC main Model GXR-LA10A input Model GXR-D15A AC main input Signal input STACKED Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 13: Configuring The Back Panel
GXR Series User Manual CONNECTORS AND CONNECTIONS STACKED CONNECTION EXAMPLE (mono channel): 3 tops GXR-LA210A + 1 sub GXR-D15A • Link Link Link AC main input Signal input Signal input Link AC main input Link Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 14: Configuration Panel
You can check the compressor and control the dynamic activity. On the second screen you can modify some parameters. • Gain • Mute • Polarity • Delay • Xover: You can setup a High Pass filter selecting type, frequency and order. Lynx Pro Audio S.L www.lynxproaudio.com... - Page 15 The last screen shows you some general information regarding the cabinet’s components. Here is an example: You can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 16: Hardware And Accessories
GXR Series User Manual HARDWARE AND ACCESSORIES The GXR series include some accessories for installation and transport. The GXR-LA210A, GXR-D15A and GXR-D18A include: GXR-LA210A accessories: SV-GXR FD-GXRLA10 Flying frame and stacking system for GXR-LA210A Nylon protection cover and GXR-D15A. You can use... - Page 17 GXR Series User Manual HARDWARE AND ACCESSORIES The GXR series include some accessories for installation and transport. The GXR-LA210A, GXR-D15A and GXR-D18A include: GXR-D18A accessories: FD-GXRLA10 CA-GXRLD15 Nylon protection cover Transport dolly for GXR-D15A for either 4 GXR-LA210A cabinets GX-18WKIT...
-
Page 18: How To Use Flying Fram Sv-Gxr
All the cabinets are hung from this flying frame, one beneath the other correspondingly. Different accessory pieces are available to fit all your needs. Different accessory pieces are available. EXTERNAL UPPER PIECE BALL PINS FLYING FRAME TO FIT BALL PINS TO FIT TO FIT Lynx Pro Audio S.L www.lynxproaudio.com... - Page 19 Its position is adjustable and locked by steel pins. EXTERNAL UPPER PIECE BALL PINS TO FIT TO FIT TO FIT TO FIT BALL PINS Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 20 BALL PIN TO FIT ANGULATION TO FIT BALL PIN ANGULATION TO FIT BALL PIN BALL PIN Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 21 All the fixations are made by a special steel pin, designed for maximum security. EXTERNAL UPPER PIECE BALL PINS TO FIT TO FIT TO FIT TO FIT BALL PINS Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 22 The support of the cabinets to the flying system and between them is carried out with special 6mm steel pins. To extract or fix the steel pins it is necessary to press the central button of the pin. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 23 Example 2 A very practical transport dolly is available for touring applications. This dolly transport up to 4 top enclosures including the flying frame. And a nylon protection cover is also available for this pack. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 24: Application Examples For Gxr-210A
GXR Series User Manual APPLICATION EXAMPLES FOR GXR-2LA10A The GXR-LA210A can be used for a multitude of applications: • 1 sub GXR-D15A + 4 GXR-LA210A in flown configuration + 2 subs GXR-D18A for low frequencies Lynx Pro Audio S.L www.lynxproaudio.com... - Page 25 GXR Series User Manual APPLICATION EXAMPLES FOR GXR-2LA10A • 4 GXR-LA210A in flown configuration • 4 GXR-LA210A in stack configuration • 3 GXR-LA210A + 1 sub GXR-D15A in stack configuration Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 26: Online Control System
User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 27: Rainbow 3D Acoustic Simulation Software
• Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry. -
Page 28: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 29 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
