Page 1: User Manual
GXR-12 USER MANUAL GXR series V.16.04 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com... - Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2016. All rights reserved.
-
Page 3: Table Of Contents
CONNECTORS AND CONNECTIONS - CONFIGURING THE DIGITAL SIGNAL PROCESSOR CONFIGURING THE DSP OPTIONS CONFIGURATION PANEL SELECT THE INPUT SELECT AND RUN PRESET - ONLINE CONTROL SYSTEM - CERTIFICATIONS AND GUARANTEE LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 4: Safety Precautions

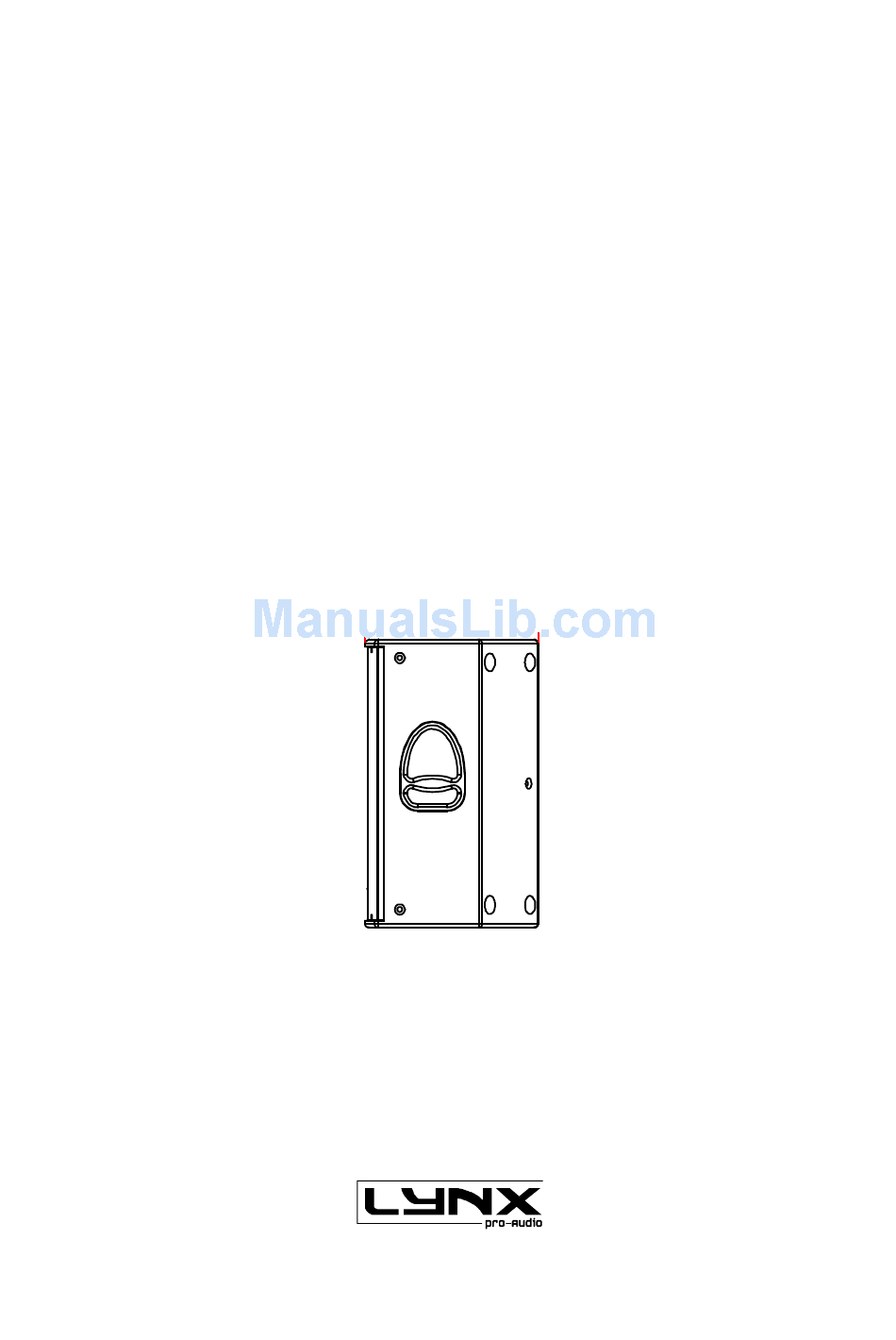

When fl ying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only fl ying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. - Page 5 GXR-12 CABINET OVERVIEW GXR-12 Ethernet connection is optional. Dimmensions in mm LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 6: Back Panel
Module kit. CONNECTORS AND CONNECTIONS SOCKET POWERCON TRUE1 CAUTION: Do not connect or disconnect the AC Power co n nec tor s u nd er lo ad . NAC3FX-W NAC3MX-W LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 7 2.- LIVE (+) 3.- LIVE (-) 3.- LIVE (-) XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 8: Configuring The Dsp Options
GXR-12 FIR FILTERS Finite Impulse Response (FIR) fi lters are used in the signal processing of the GXR-12 cabinet. FIR is a type of digital fi lter with linear phase characteristics. This frees system designers from the constraints of phase anomalies associated with analogue fi... -
Page 9: Select The Input
“Loading DSP” (Fig 4) Fig 2 Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last confi guration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 10: Online Control System
GXR-12 ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 11: Certifications And Guarantee
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product please contact Lynx Pro Audio S.L. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 12 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L.
