Chapter 3 – Installing and Using the Device

Installing the Device

Important: Install drivers on your computer before connecting the device.
1. Connect antennas to the antenna connectors.
2. Connect the USB connector to your computer or other USB high power device, such as a hub.
3. The POWER LED lights after the device powers up.

Powering Down Your Device

CAUTION: Failing to properly power down the device before removing power may corrupt your device's file
system.
To properly power down your device, use the following sequence:
1. Issue the AT#SHDN command.
2. Wait 30 seconds.
3. Power off or disconnect power.
Note: If you send AT#SHDN and do not remove power, the control chip on the device turns the radio back on
after 60 seconds.

Installing a SIM Card

This model requires a CBRS SIM card, which is supplied by your service provider. To install the SIM card:

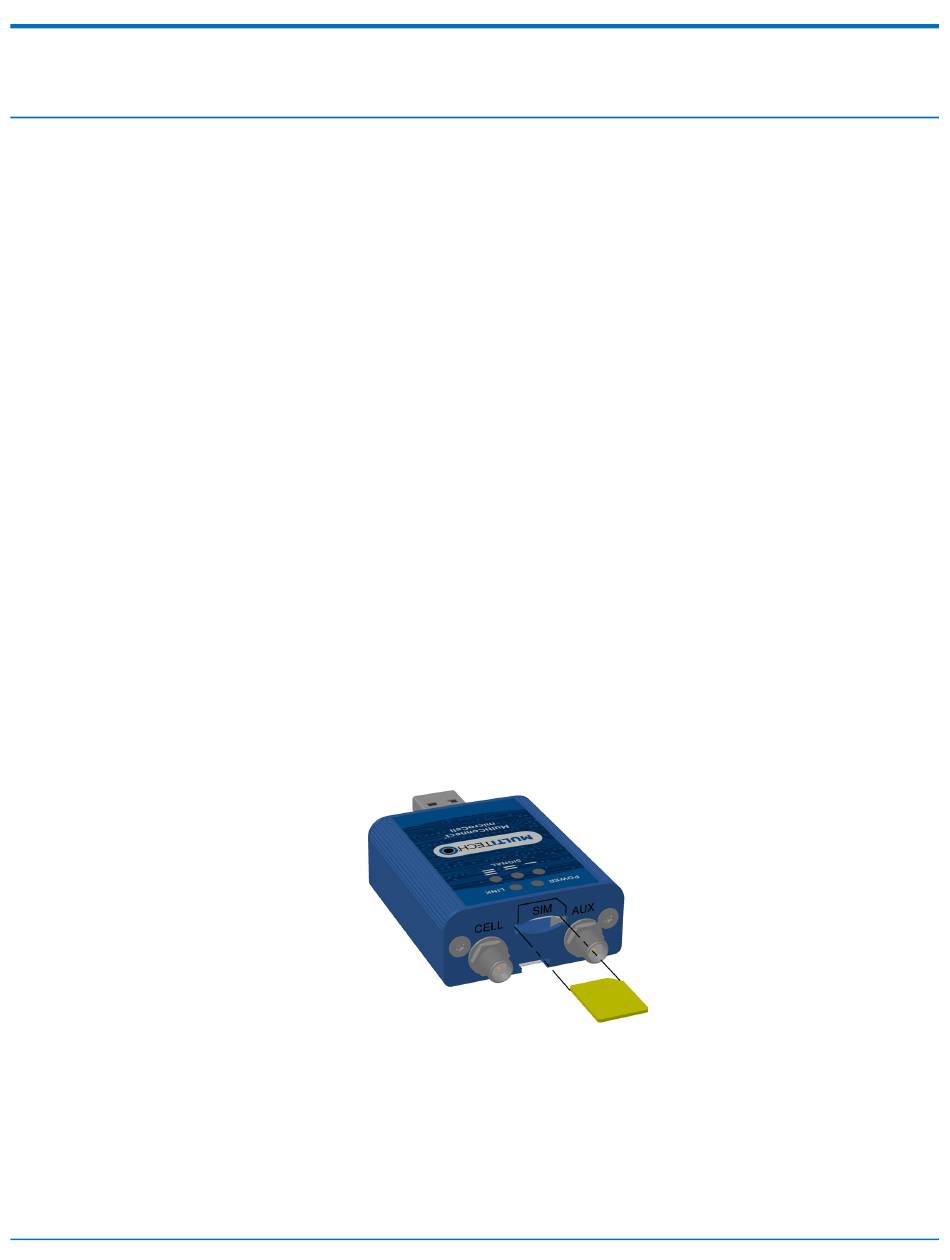

1. Locate the SIM card slot on the side of the modem. The slot is labeled SIM.
2. Slide the SIM card into the SIM card slot with the contact side facing up as shown. When the SIM card is
installed, it locks into place.

Removing a SIM Card

To remove the SIM card, push the SIM card in. The device ejects the SIM card.

Mounting Device to Flat Surface

1. Locate the groove on the bottom of the device.
®
