Elite Screens M100VSR-PRO Manual

Manual SRM Pro Series

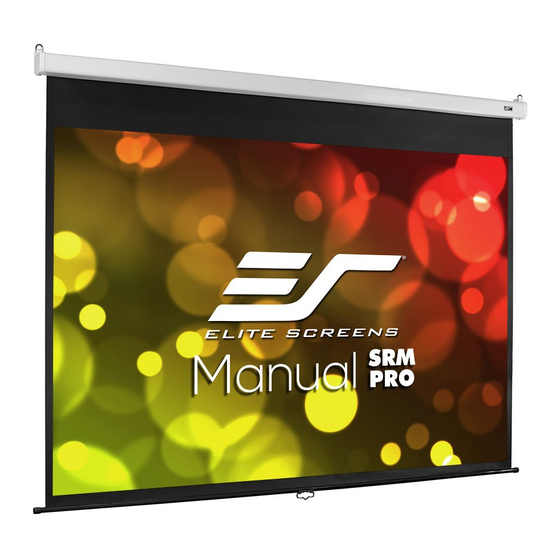

Premium Quality Manual Pull-Down Projection Screen

Pre-installation

1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.

Installation

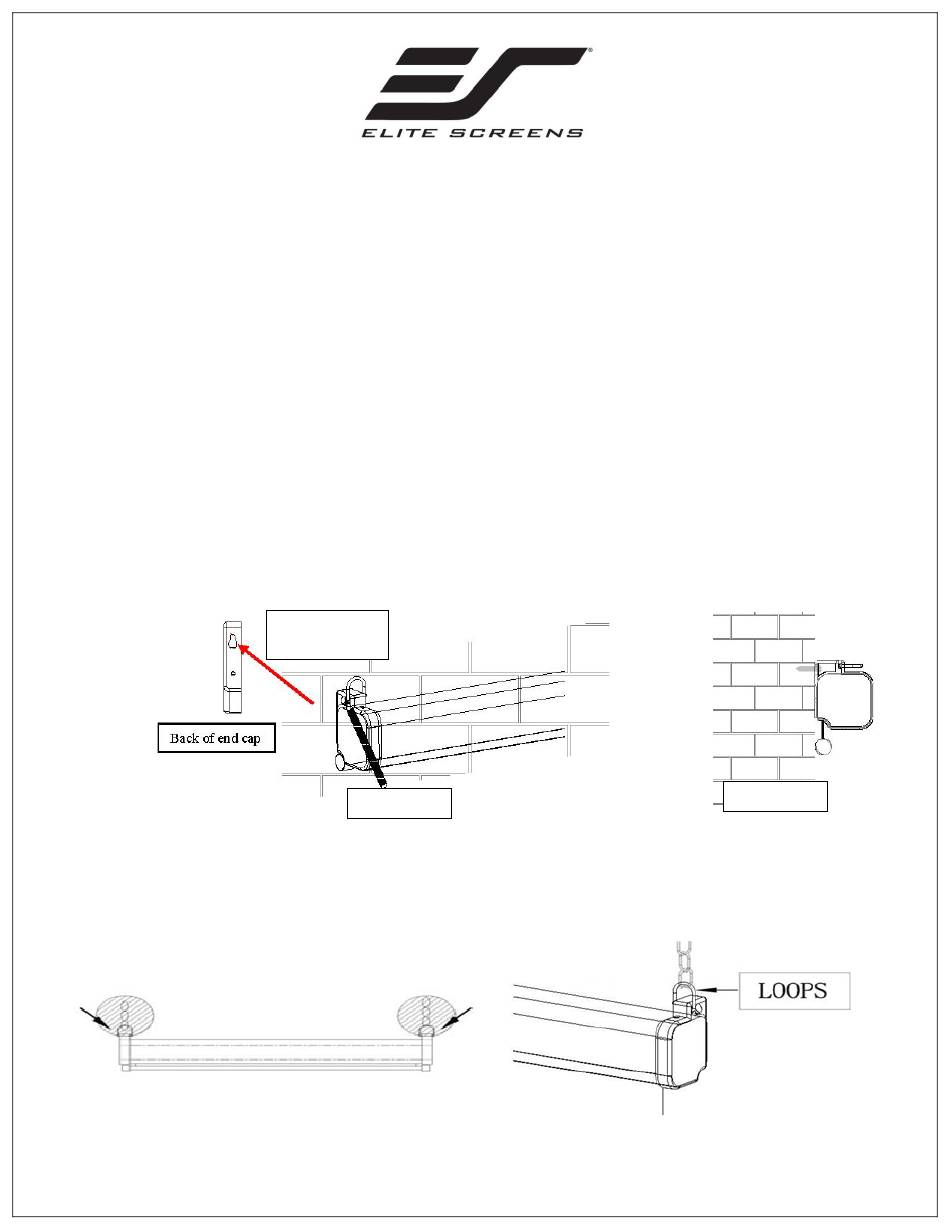

A. Flush Wall Mounting
1. Mark the location of where the screen is to be installed for the pre-drilled hole.
2. After marking the area and drilling the hole, insert the proper screw into the drilled hole and
leave about 1/8" of an inch from the wall to mount the screen.
3. Mount your screen from the keyhole located on back of screen's left and right end cap.
Note: Do not remove the end caps to mount the screen to the wall.
Removing the end caps will release the tension of the internal spring mechanism.
Keyhole located on
back of end cap
B. Ceiling Mounting
Optional installation using a chain to hang the screen from the ceiling.
1. You can also hang the screen on a ceiling by using a chain (not included) and hang it by the
two d-rings loops located on each end of the case.
051117-DR
User's Guide
Front View
(additional hardware required)
www.elitescreens.com
Side View
