PRODUCT WHITE PAPER

Section 1: Screen Design

1.1 What is it for?

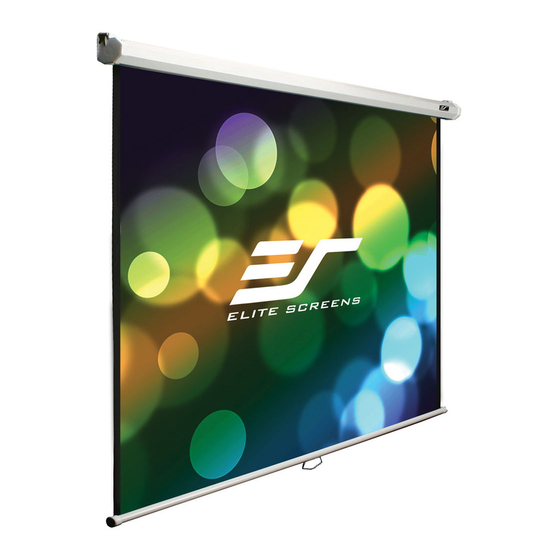

Manually operated (non-motorized) retractable front projection screen with integrated
mounting solutions allowing it to be installed on the wall or ceiling suspended. The
Manual Screen is for commercial or residential front projection presentations. It is an
ultra affordable, high performance, manual pull-down projection screen.
1.2 How does it work?
The manual screen utilizes a spring loaded auto-locking system for variable height
adjustments. Pulling the lanyard or center handle brings down the screen material to the
desired height. Gently stopping on the downward pull and guiding the material as it rises
a few inches into its locked position. A gentle pull on the center handle or lanyard will
cause the locking mechanism to disengage allowing the spring loaded retraction
mechanism to draw the screen back up into the casing.

Section 2: Product Features

2.1 Characteristics
Screen Material
• MaxWhite™ B screen material is durable and easy to clean
• 4K Ultra HD and Active 3D ready
• 180° wide viewing angle for commercial presentations or residential home cinema
• Black backed screen material eliminates light penetration for superior color reproduction
• Standard 4-side black masking borders
Design and Installation
• Available in 100" diagonal sizes in 1:1, 4:3, 16:9, and 16:10 aspect ratio, 120" diagonal in
4:3, 16:9, and 16:10, and 135" diagonal in 4:3 ad 16:9
• Screen lanyard for easy operation included – allows screen's pull down handle to be
reached from high areas
• Dual wall and ceiling installation design
• Optional 6" and 12" L brackets available
• 2-year warranty
2.2 Certifications
Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.
Elite Screens T aiwan Corp |Elite Screens Japan |Elite Screens Australia
