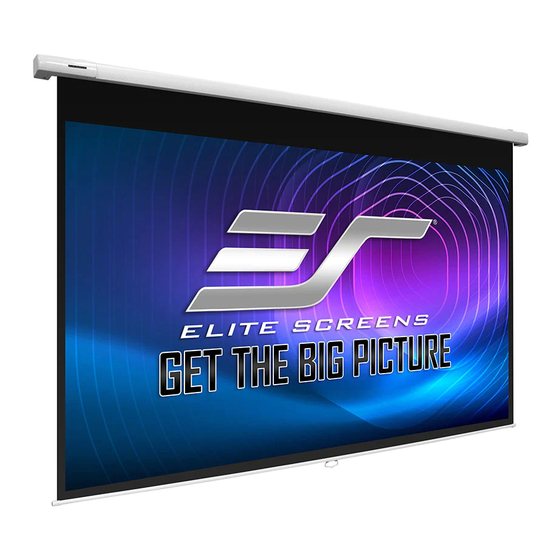

Elite Screens SRM Pro Series User Manual

_____________________________________________________________________________________________
Thank you for choosing the Manual SRM Pro Series projection screen! This manual pull down/up screen features
a hands-free retractable system. It also includes our GREENGUARD GOLD® and ISF Certified MaxWhite® 2
front projection material. The MaxWhite® 2 best performs under a light controlled environment.
Note: Wall screws included with this product are complimentary and may not be adequate for all mounting
surfaces. Consult with a professional installer or hardware store for proper mounting screws and anchors.
Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling
on the viewing surface will not cause the screen case to become loose or fall. The installer must ensure that
proper mounting hardware and the fasteners used are of adequate strength and suitable for the mounting
surface.

Hardware Parts List

Please make sure all parts listed below are included before proceeding with the installation.
A. Wall/Ceiling
Mounting Brackets x 2/3
pcs
"
135 and greater = 3 pcs
Smaller than 135" = 2 pcs

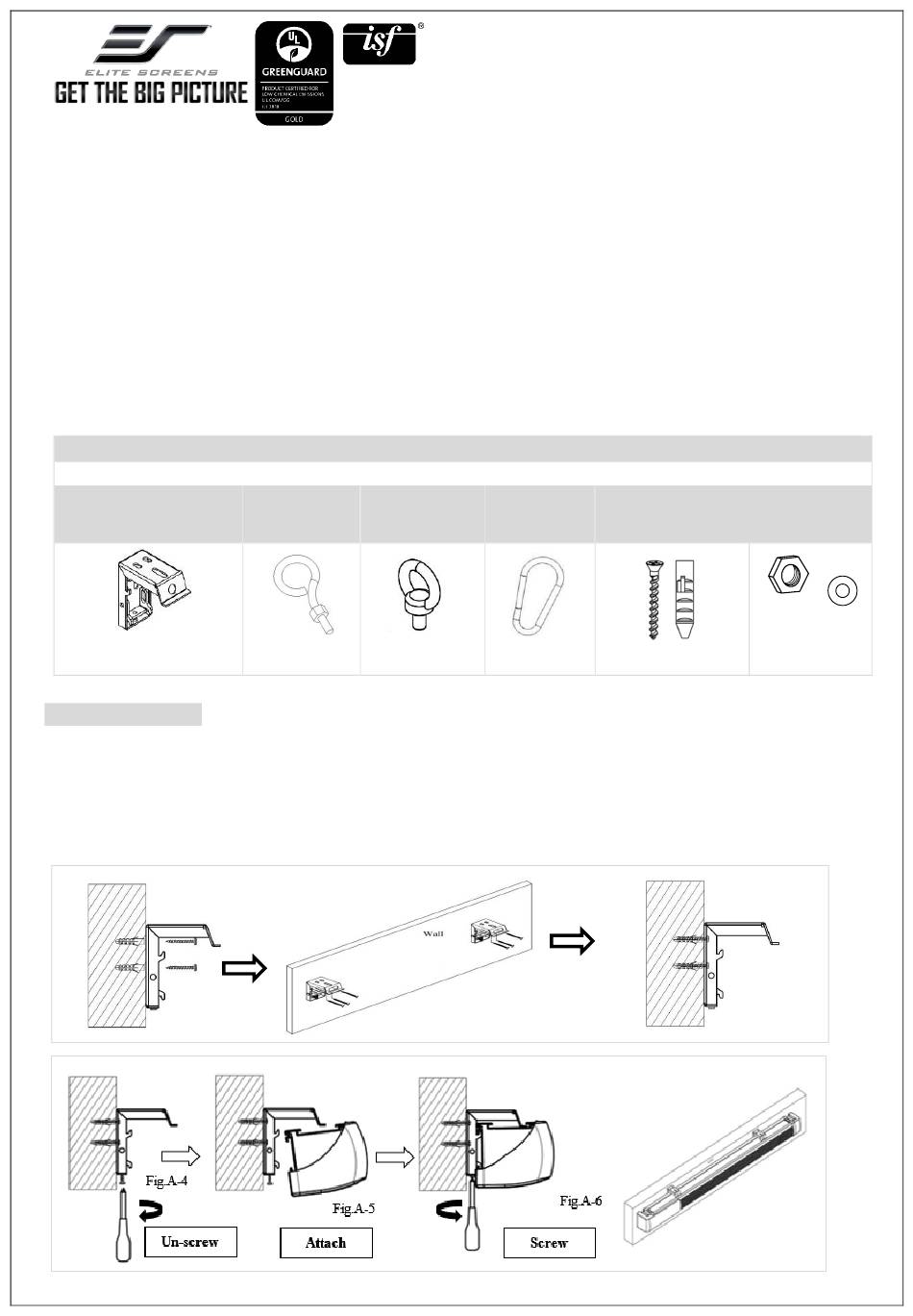

Screen Installation

A. Wall Installation
Step 1: Determine where the screen will be installed. Mark the screw hole locations, drill the holes and insert the
dry- wall anchor (E). Fig. A-1,2.
Step 2: Install the mounting bracket (A) to the wall and secure with a screw (E). Fig. A-3.
Step 3: Un-screw the screw on the Bracket, attach the screen into the Mounting Bracket. Fig.A-4,5.
Step 4: Finally, screw the screw to make sure the case slot is securely attached to the Mounting Bracket. Fig.A-6.
Fig.A-1
05072020JA
Premium Manual Pull-Down Projector Screen
B. M6 Eyebolt C. Short-
Screw x 2 pcs Eyebolt x 2 pcs
Fig.A-2
Manual SRM Pro Series – Z Type
D. Carabiner E. Dry-wall Anchor
x 2 pc and Screw x 6 pcs
1
USER'S GUIDE
F. Nut/Washer
x 4 pcs each
each
Fig.A-3
