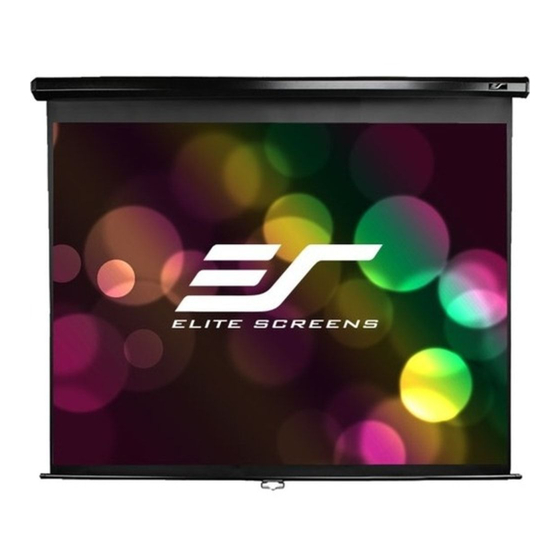

Elite Screens Manual Screen Series User Manual
Manual screen series pull-down projection screen
Hide thumbs
Also See for Manual Screen Series:
- User manual (8 pages) ,
- Product manual (134 pages) ,
- Product catalog (72 pages)
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens Manual Screen Series
Summary of Contents for Elite Screens Manual Screen Series

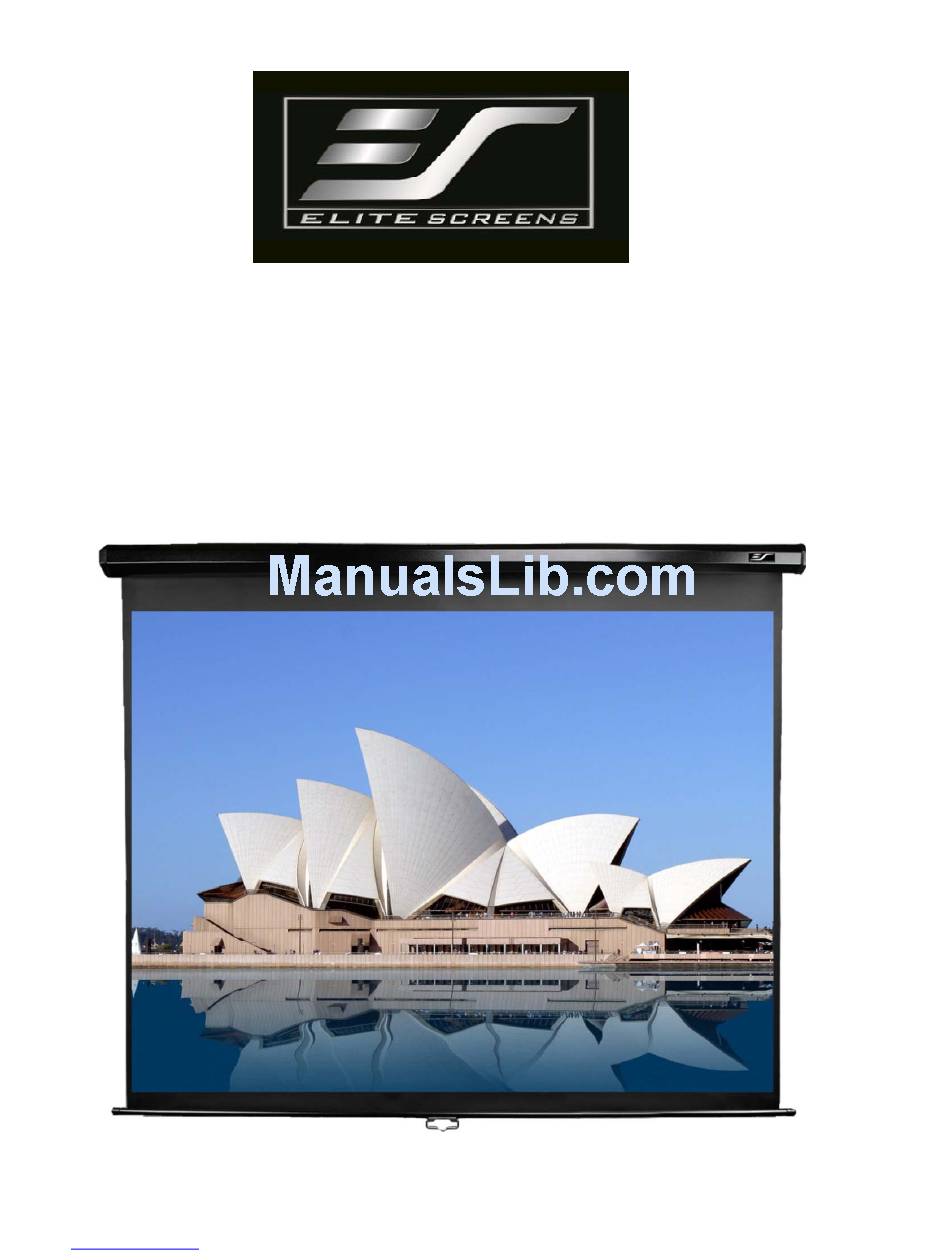

- Page 1 Manual Pull-Down Projection Screen Manual Screen Series User’s Guide 1 Rev.041911‐AS www.elitescreens.com info@elitescreens.com ...
-
Page 2: Pre-Installation
Pre-Installation 1. Carefully unpack the screen. 2. Always handle the screen in a leveled position on a clean surface. 3. In order to protect the screen from exposure to stains, keep the screen out of contact with foreign objects such as dust, saw dust, and/or liquids. NOTE Regardless of the mounting method, the screen should be securely supported so that when retracted, deployed, or even abusive pulling on the screen, the case will not become loose or fall. The installer must insure that the fasteners used are of adequate strength and suitable for the installation location. Installation Flush Mount to the Wall (Hardware not included) 1. Mark the location of where the screen is to be installed and drill your holes. 2. Insert the proper screw and leave about 1/8” of an inch from the wall to mount the screen. 3. Mount your screen from the keyhole located on back of the screen’s left and right end cap. Side view Back of end cap ... -
Page 3: Screen Operation
Suspended Ceiling using Chains (Hardware not included) You can also hang the screen on a ceiling by using a chain (not included) and hang it by the two loops (models 71‐120) located on each end of the case or by the ears of the end caps (models 135‐170). Screen Operation Note: Always pull the screen down or retract in a 90‐degree vertical angle. To avoid damaging the viewing surface, do not allow the viewing material to touch the screen case when deploying or retracting the unit. 1. Pull the screen down from the lanyard or from the handle only in a 90‐degree angle. Do not attempt to pull the screen down by the surface, as it will damage the screen and void the warranty. NOTE: The interval auto‐lock mechanism system will cause the screen to stop and lock on the position at intervals 3 Rev.041911‐AS www.elitescreens.com info@elitescreens.com ... -
Page 4: Maintenance
2. To retract the screen back into its case, simply pull the screen down more than 2 inches and let the screen retract by quickly and gently releasing it up. Note: Always release the screen at a 90‐degree angle and do not let go until the screen is entirely inside the case. Keep in mind the screen’s mechanism is new and needs to be deployed/retracted a few times to loosen up. If the screen feels stuck, carefully, with a little force, yank the screen straight down to unlock the unit. Note: Improper pulling on the screen to deploy/retract will damage material and/or the rolling system. Maintenance To clean the viewing material, use a soft cloth with mild soap and water. In order to keep the viewing surface clean, it is recommended to keep the screen retracted into its housing case when not in use. 4 Rev.041911‐AS www.elitescreens.com info@elitescreens.com ... - Page 5 Manual Series Dimension Table Measurements are intended as a reference only and are subject to change without notice. Note: Data Error ±1" 5 Rev.041911‐AS www.elitescreens.com info@elitescreens.com ...
- Page 6 Measurements are intended as a reference only and are subject to change without notice. Note: Data Error ±1" 6 Rev.041911‐AS www.elitescreens.com info@elitescreens.com ...
- Page 7 U Unit: MM 7 Rev.041911‐A AS www.elitescr reens.com info@ @ elitescreens.com ...
-
Page 8: Warranty Policy
Warranty Policy • Two (2) Year parts and labor warranty from defects in workmanship from purchase date as follows (except for refurbished units as specified below). • Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government, Educational, Military, & Religious) purchases of new product only. • Refurbished Units carry a 90‐DAY parts and labor warranty. • Each party will be responsible for one way shipping during the warranty period. • A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option replace or repair the defective unit with a replacement *(see exceptions below) after the defective unit or parts have been received. Once the product is received, Elite Screens will send out a replacement *unit to the customer by ground service (subject to inventory availability). • Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned at your expense. The RMA Number must be included on the outside label of your shipping box. Our warehouse is not authorized to accept returns without an RMA number on the shipping label. • RMA Numbers are valid for 45 days from the date issued. • Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer will be responsible for shipping and handling fees. If reported after 30 days of receipt, the customer will be responsible for cost of parts and shipping & handling fees. *A New or refurbished replacement will be send out to the customer depending on the type of purchase (new or refurbished) and based on stock availability. North America only U.S. and Canada For Warranty and Service requests, please submit an RMA/Service Form at: www.elitescreens.com/warrantysupportform Please visit this link for full Warranty information: www.elitescreens.com/warranty ... -
Page 9: Contact Info
Contact Info US & Canada Tech Support & Warranty Claim Please contact us at service@elitescreens.com or call +1 877‐511‐1211 #3 or fax +1‐562‐926‐8433 Europe Tech Support & Warranty Claim Please contact us at service@elitescreens.eu or call +49‐(0) 40‐30392958 Asia Tech Support & Warranty Claim Please contact us at service@elitescreens.com.cn or call +86‐(0) 755‐8461‐7989 Taiwan Tech Support & Warranty Claim Please contact us at service@elitescreens.com.tw or call +866+2+8990‐1999 America: Europe: Elite Screens Inc Elite Screens Europe 16410 Manning Way Lübecker Straße 1 Cerritos, CA 90703 USA ...
