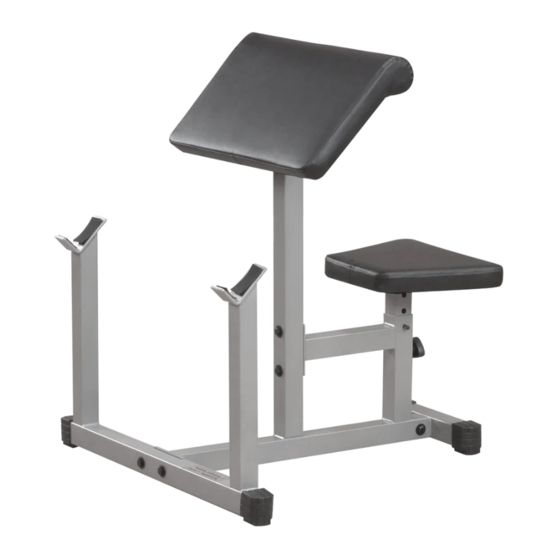

- Page 1 PPB-32X PREACHER CURL BENCH Owner’s Manual WWW.BODYSOLID.COM ¡ ¢ ¡ £ ¤ ¤ ¥ ¦...
- Page 2 THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT. TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES: Inspect equipment before each workout. Check that all nuts, bolts, screws and pop pins are in place and fully tightened. Also, before use, check cables for sign of wear. Replace all worn parts immediately.
-
Page 3: Table Of Contents
PPB-32X TABLE OF CONTENTS • SAFETY INSTRUCTIONS....... PAGE 4 • PREPARATION........PAGE 5 • HARDWARE LIST........PAGE 6 • HARDWARE ILLUSTRATION....PAGE 7 • PART LIST / ILLUSTRATION....PAGE 9 • ASSEMBLY INSTRUCTIONS....PAGE 10 • EXPLODED VIEW........PAGE 14 •... -
Page 4: Safety Instructions
Owner’s Manual. Use only • Use care when getting on or off the unit. Powerline by Body Solid replacement parts when • Do no overexert yourself or work to exhaustion. servicing this machine. Failure to do so will void your •... -
Page 5: Preparation
PPB-32X PREPARATION Required tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each step. the PPB-32X include but are not limit to: While you may be able to assemble the PPB-32X using the •... -
Page 6: Hardware List
PPB-32X HARDWARE LIST PART # SIZE DESCRIPTION QUANTITY... -
Page 7: Hardware Illustration
PPB-32X HARDWARE ILLUSTRATION Part #1 M10X70mm hex head bolt Qty. 4 Part #2 M10X65mm hex head bolt Qty. 1 Part #3 5/16”X1” hex head bolt Qty. 6 Part #4 M10 nylon lock nut Qty. 5 Part #5 M10 (I.D.) washer Qty. - Page 8 PPB-32X HARDWARE ILLUSTRATION CONT. Part #6 5/16” (I.D.) washer Qty. 6 Part #7 5/16” spring washer Qty. 6 Part #8 2”X2” foot cap Qty. 4 Part #9 quick release ring pin Qty. 1 Part #10 1 1/2”X1 1/2” rubber bar cushion Qty.
-
Page 9: Part List / Illustration
PPB-32X PART LIST Part A Part B Part C mainframe e-z bar frame base frame [1pcs] [1pcs] [1pcs] Part D Part E Part F support frame seat frame seat pad [1pcs] [1pcs] [1pcs] Part G curl pad [1pcs]... -
Page 10: Assembly Instructions
PPB-32X STEP 1 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware in this step. DO NOT wrench tighten until the last step. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 1A. - Page 11 PPB-32X STEP 1 Above shows STEP 1 assembled and completed...
- Page 12 PPB-32X STEP 2 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware in this step. DO NOT wrench tighten until the last step. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 2A.
- Page 13 PPB-32X STEP 2 Above shows STEP 2 assembled and completed...
-
Page 14: Exploded View
PPB-32X EXPLODED VIEW... - Page 15 PPB-32X NOTES...
-
Page 16: Contact Page
PPB-32X please write your serial number in the boxes below S/N # Body-Solid ® Built for Life 1900 S. Des Plaines Ave. Forest Park, IL 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.bodysolid.com Copyright 2011. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and speci cations when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
