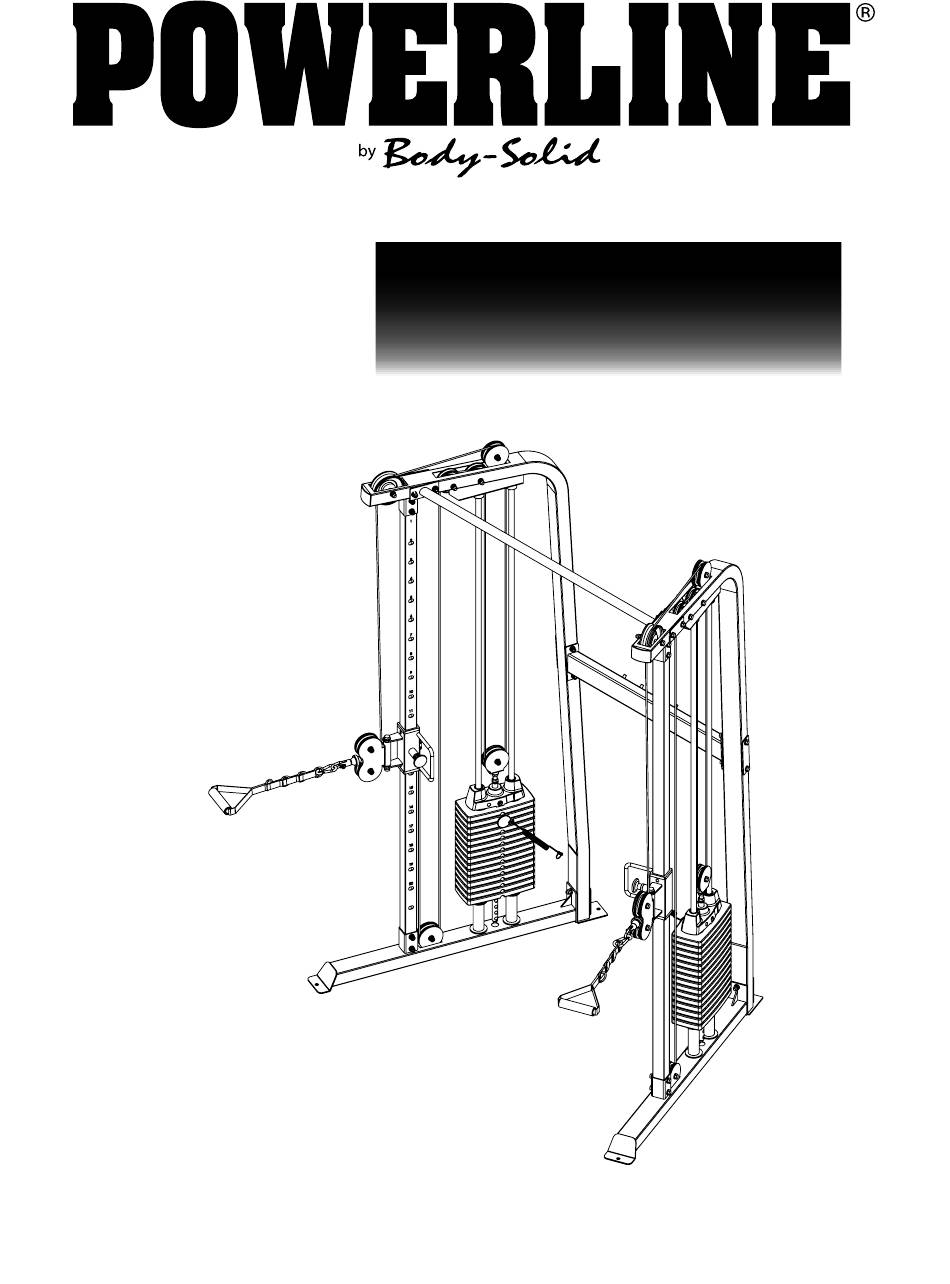

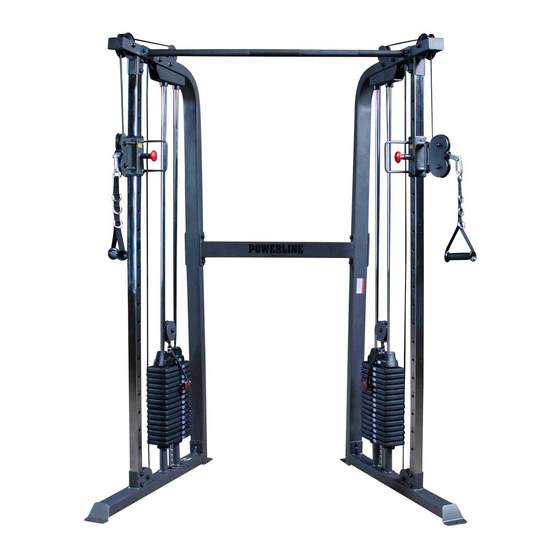

  • Page 1 PFT100 FUNCTIONAL TRAINER Owner’s Manual WWW.BODYSOLID.COM V PFT100-010917...
  • Page 2                              WARNING Safety and Maintenance of Cables IMPORTANT: Cables are wear items. It is your responsibility to prevent unexpected breakage.
  • Page 3 PFT100 TABLE OF CONTENTS • SAFETY INSTRUCTIONS....... PAGE 4 • PREPARATION........PAGE 5 • PART/HARDWARE LIST......PAGE 6 • HARDWARE ILLUSTRATION....PAGE 8 • ASSEMBLY INSTRUCTIONS....PAGE 12 • EXPLODED VIEW........PAGE 22 • CONTACT PAGE........PAGE 16...
  • Page 4 PFT100 SAFETY INSTRUCTIONS The PFT100 is designed for your enjoyment. By When using exercise equipment, following these precautions and using common sense, you should always take basic you will have many safe and pleasurable hours of precautions including the healthful exercise with your Powerline Functional following: Trainer. • Read all instructions before using the PFT100. These After assembly, you should check all functions to instructions are written to ensure your safety and to protect the unit. ensure correct operation. If you experience problems, first recheck the assembly instructions to locate any • Do not remove any safety labels from the possible errors made during assembly. If you are machine. • Do not allow children on or near the equipment. unable to correct the problem, call the dealer from whom you purchased the machine or call 1-800-556- • Use the equipment only for its intended purpose 3113 for the dealer nearest you. as described in this guide. Do not use accessory attachments that are not recommended by the manufacturer. Such attachments might cause serious Obtaining Service...
  • Page 5 PFT100 PREPARATION Required tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each step. the PFT100 include but are not limit to: While you may be able to assemble the PFT100 using the • Standard Wrench Set illustrations only, important safety notes and other tips may be included in the text. • Metric Wrench Set Some pieces may have extra holes that you will not use. Use • Adjustable Wrench only those holes indicated in the instructions and illustrations. • Standard / Metric Allen Key Set NOTE: With so many assembled parts, proper alignment and adjustment is critical. While tightening the nuts and bolts, be sure to leave Installation Requirements room for adjustments. Follow these installation requirements when assembling the PFT100: NOTE: The bottles that are marked “Poison” is your touch up paint. Keep away from children. Set up the PFT100 on a solid, flat surface. A smooth, flat surface under the machine helps keep it level. CAUTION: Obtain assistance! If you feel like you can’t assemble the PFT100 by yourself then do Provide ample space around the machine. Open space not attempt to do so as this could result in around the machine allows for easier access. injury. Review the Installation Requirements before proceeding with the following steps. For aesthetic purposes, insert all bolts in the same direction unless specified (in text or illustrations) to do otherwise.
  • Page 6 PFT100 PART LIST Part # DESCRIPTION BASE FRAME CHROME UPRIGHT REAR UPRIGHT CENTER CROSSMEMBER CHIN UP BAR STEEL BRACKET STEEL BRACKET HANDLE DOUBLE PULLEY HOLDER WEIGHT RISER PULLEY BRACKET STEEL BRACKET HEX HEAD BOLT, M12x130mm HEX HEAD BOLT, M10x100mm HEX HEAD BOLT, M10x95mm HEX HEAD BOLT, M10x75mm HEX HEAD BOLT, M10x65mm HEX HEAD BOLT, M10x45mm...
  • Page 7 PFT100 PART LIST Part # DESCRIPTION PLASTIC END CAP, 75x50mm NYLON BUSHING, 60x60mm BUSHING, , ø21.5x ø12x14mm POP PIN WEIGHT STACK PIN TOP PLATE SELECTOR ROD RUBBER DONUT HANDLE STRAP SNAP LINK CHROME GUIDE ROD COLLAR CABLE, 7700mm RETAINING RING...
  • Page 8 PFT100 HARDWARE ILLUSTRATION Part #1 M12x130mm hex head bolt QTY. 2 Part #2 M10X100mm hex head bolt QTY. 8 Part #3 M10X95mm hex head bolt QTY. 6 Part #4 M10X75mm hex head bolt QTY. 4      ...
  • Page 9 PFT100 HARDWARE ILLUSTRATION CONT. Part #5 M10X65mm hex head bolt QTY. 8 Part #6 M10x45mm hex head bolt QTY. 10 Part #7 M8x10mm SET SCREW QTY. 10 Part #8 3/8”X2.0” SOCKET HEAD CAP SCREW QTY. 2 (PRE-INSTALLED)
  • Page 10 PFT100 HARDWARE ILLUSTRATION CONT. Part #9 M12 FLAT WASHER QTY. 4 Part #10 M10 FLAT WASHER QTY. 70     Part #11 3/8” LOCK WASHER QTY. 1      (PRE-INSTALLED)      ...
  • Page 11 PFT100 HARDWARE ILLUSTRATION CONT. Part #13 M12 NYLON LOCK NUT QTY. 2 Part #14 M10 NYLON LOCK NUT QTY. 34      Part #15 1/2” NUT QTY. 1          ...
  • Page 12 PFT100 STEP 1 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware in this step. DO NOT wrench tighten until the last step. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. RIGHT SIDE ASSEMBLY 1a.
  • Page 13 PFT100 STEP 1 above shows step 1 assembled and completed...
  • Page 14 PFT100 STEP 2 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware in this step. DO NOT wrench tighten until the last step. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. LEFT SIDE ASSEMBLY 2a.
  • Page 15 PFT100 STEP 2 above shows step 2 assembled and completed...
  • Page 16 PFT100 STEP 3 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware FIRST in this step. wrench tighten all hardware at the END of step 3C. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten.
  • Page 17 PFT100 STEP 3 above shows step 3 assembled and completed...
  • Page 18 PFT100 STEP 4 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. Install Chrome Guide Rods (#30) into the holes of base frame (A). Install Weight Risers (K) &...
  • Page 19 PFT100 STEP 4 above shows step 4 assembled and completed...
  • Page 20 PFT100 STEP 5 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 5A. Install one v grooved pulley (#18) and seven 3.5” pulleys (#16) left side of the machine as shown in step 5 drawing using: 5 - (#6) m10x45mm hex head bolt...
  • Page 21 PFT100 STEP 5 above shows step 5 assembled and completed...
  • Page 22 PFT100 EXPLODED VIEW...
  • Page 23 PFT100 EXPLODED VIEW...
  • Page 24 PFT100 please write your serial number in the boxes below 013964-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, IL 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST...
