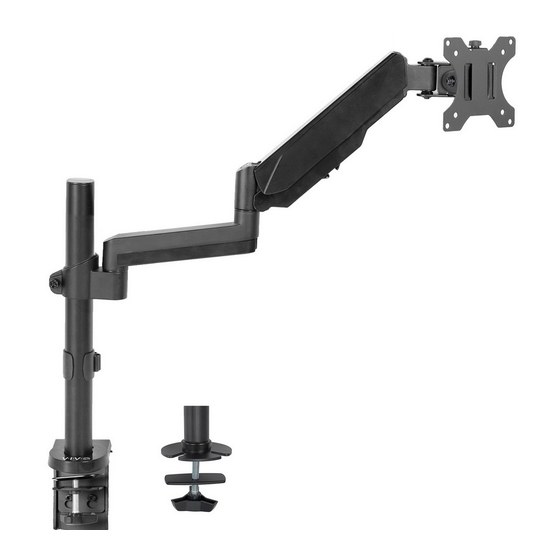

Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001K
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001k
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V001K
Summary of Contents for Vivo STAND-V001K
- Page 1 Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V001K Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001k GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 STEP 2 Install Pole Cap (K) onto the top of the Pole (B). Loosen the bolts and disassemble the Clamp (D) using the 4mm Allen Wrench (L). STEP 3 OPTION A: Clamp Installation OPTION B: Grommet Base Installation Attach clamp brace (D1) to the Pole (B) using For grommet hole attachment only, cut the the M6x16 bolts (J) and the 4mm Allen Wrench... - Page 4 STEP 3 (Continued) OPTION A: Clamp Installation OPTION B: Grommet Installation For thinner desktops, re-attach the clamp (D2) If not using an existing through-hole, using a to the clamp brace (D1) and tighten the bolts 10mm (⅜”) drill bit, drill through the desktop at using the 4mm Allen Wrench (L).
- Page 5 STEP 4 Slide Arm (A) onto Pole (B) and tighten using 6mm Allen Wrench (M). Attach Cable Clip (E) to Pole (B). STEP 5 Attach VESA plate (C) to the back of the monitor using bolts (M-A through M-D) and washers (M-E).
- Page 6 STEP 7 Adjust gas spring support in arm using 6mm Allen wrench (M). Turning counter-clockwise increases support, and clockwise decreases. STEP 8 Remove bottom cover from Arm (A) by sliding it off. Organize cables and re-attach cover.
- Page 7 STEP 9 Adjust tilt support using 6mm Allen Wrench (M). Store Allen Wrenches (M and L) in Cable Clip (E). Adjust as desired.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
