Part Programming

Once you have entered a valid part number, click the Program button to program the part.

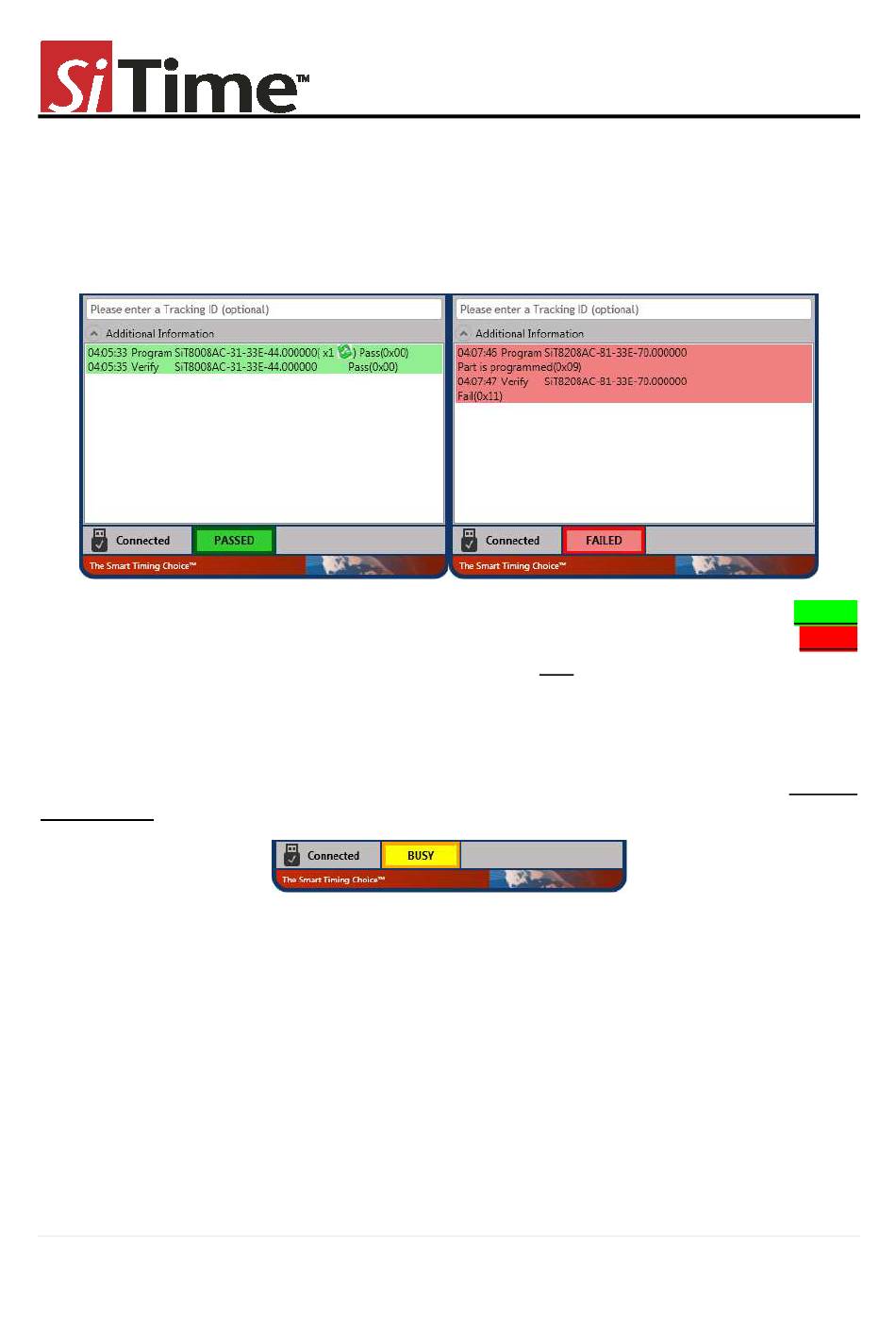

The programming process result will be reflected in the output window as shown below.
If part programming is successful the Operation indicator field will show a green PASSED
indicator. If the part programming fails the Operation indicator field will show a red FAILED
indicator. In this case, see the"Programming generates a FAIL message"section of this manual
for information about how to proceed. Part Verification is done automatically following any
Programming operation.
During Programming and Verification procedures the active channel window will dim and all
controls in the channel dialog boxes will be disabled. The Operation indicator will read BUSY as
shown below.

Tracking ID

The main UI includes an optional Tracking ID field to help you track programming history.
After entering the part number but before programming, you may enter a text string to be
associated with the part. This Tracking ID will then be displayed after programming in the Logs
viewer window.

Auto Detect Mode

To enable Auto Detect mode click
displayed indicating that Auto Detect mode is enabled. In Auto Detect mode with the SiTime
programmer connected, the software will automatically check for the presence of a part in each
12 |
P a g e
TimeMachine > Auto
© 2013 SiTime Corporation. All rights reserved.
Time Machine User's Manual
Detect. The check mark will be
