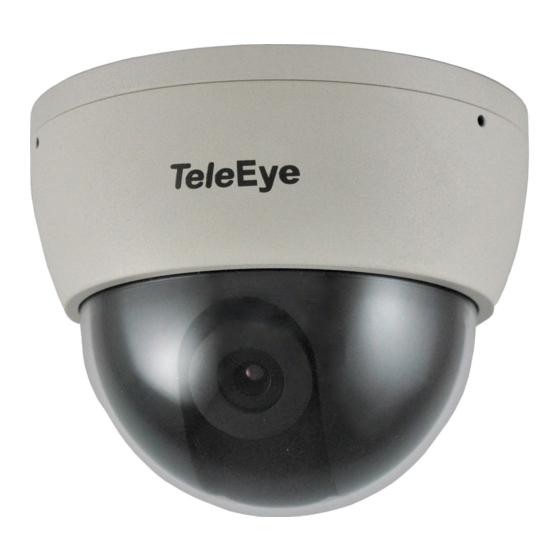

TeleEye MX710-HD/MX810-HD/MX910-HD Network Camera
This Quick Start Guide will guide you how to install and configure the TeleEye MX710-HD / MX810-HD / MX910-HD
Network Camera for remote video monitoring.
Camera Installation
Step 1.
After mounting the camera on the wall or ceiling, connect the Ethernet cable to the LAN adapter and
the 12VDC power supply to the power cable if PoE is not available. Please refer to the section "RJ45
wiring" for connecting the cable to RJ45 plug.
Step 2.
Start sureSIGHT or a web browser to start a remote video
monitoring in order to adjust the camera.
[Reference] Please refer to the following sections to understand how to start
video monitoring.
Step 3.
After removing the camera cover, loosen the screws to
adjust the viewing angle of the camera.
Step 4.
Tighten the screws to fix the direction of the camera module.
Finally , close the camera cover.
Quick Start Guide
1
