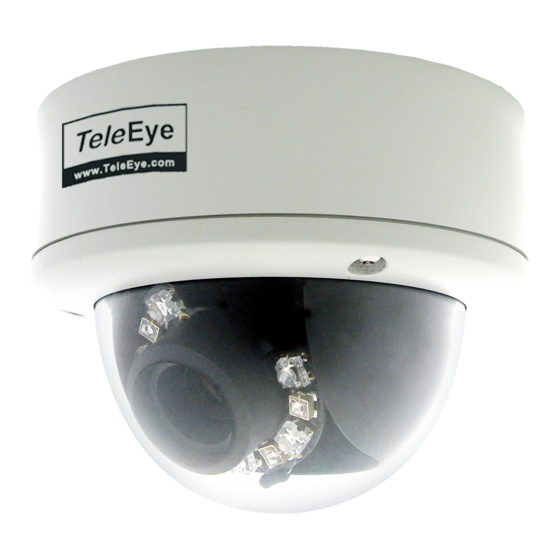

TeleEye NX288 Quick Start Manual

Network camera

Hide thumbs Also See for NX288:

Step 1:

After mounting the camera on the wall or ceil, connect the analog video output to a monitor by using the

analog video cable.

Step 2:

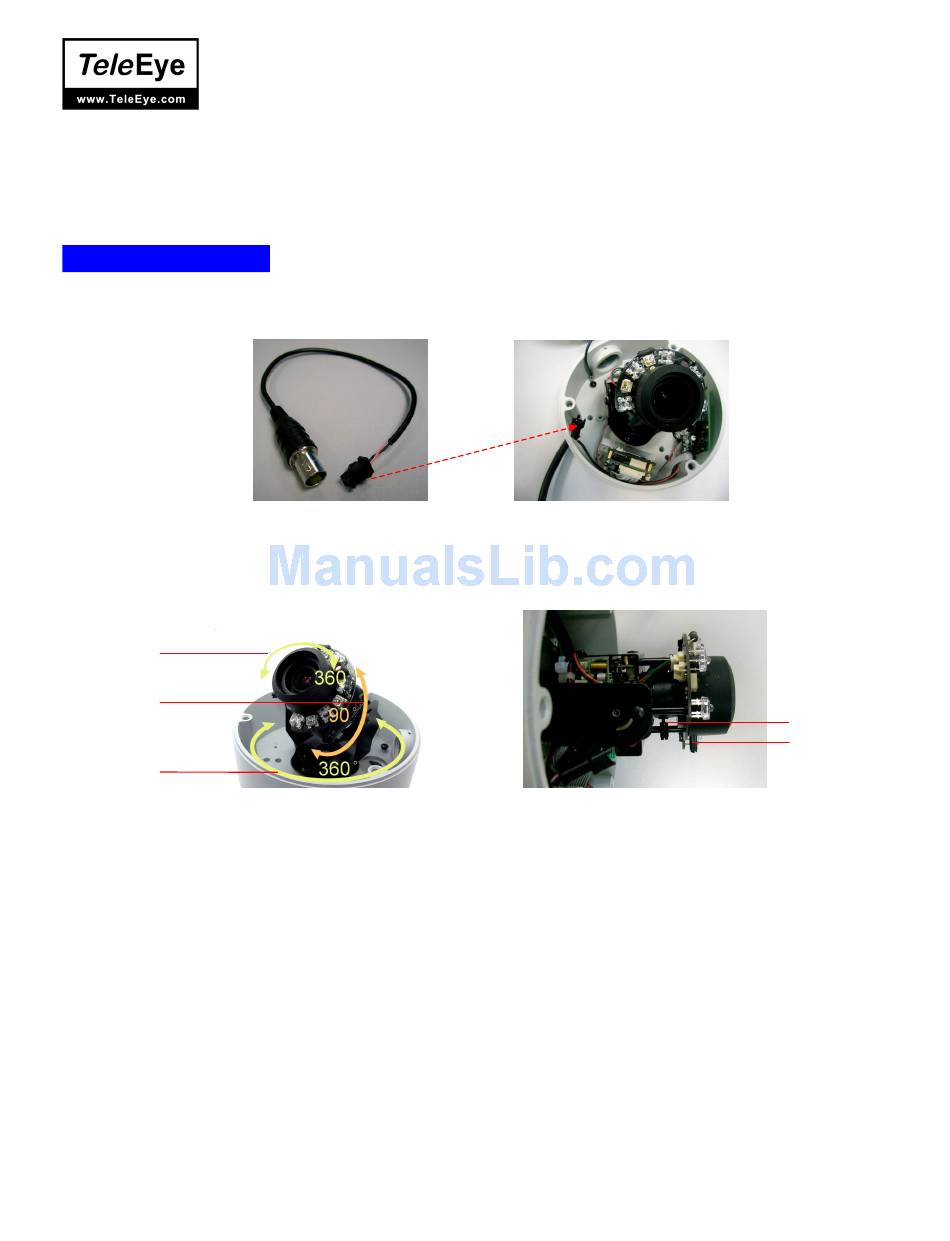

Adjust the direction (pan/tilt/rotation) of the camera (the left diagram below), the focal and the focus by

sliding the sticks at the side of the lens (the right diagram below).

Rotation

Tilt

Pan

Adjust the direction (pan/tilt/rotation)

Step 3:

Adjust the IRIS level of Auto Iris lens by tuning the "DC LEVEL" as shown in the following diagram.

Quick Start Guide

TeleEye

NX288 Network Camera

Connect to

Analog Video Cable

TeleEye NX288

NX288 with cover removed

Adjust the focal and the focus

network camera for

Adjust focus

Adjust focal

Table of Contents

Do you have a question about the NX288 and is the answer not in the manual?

Page 1: Quick Start Guide
Connect to Analog Video Cable NX288 with cover removed Step 2: Adjust the direction (pan/tilt/rotation) of the camera (the left diagram below), the focal and the focus by sliding the sticks at the side of the lens (the right diagram below).
Page 2 Finally, disconnect the analog video cable and close the camera cover. Camera Installation with PoE Step 1: Connect NX288 to network switch / router with 802.3af PoE supported. Step 2: Wait for around 1 minutes for the NX288 to startup.
Page 3 Live Monitoring with Web-Browser Step 1: On the PC side, open a web browser and type in the IP address of the NX288. (NX288’s IP address of this example is 210.17.139.53, type in http://210.17.139.53 in a web browser). Step 2: Type in the Password.
Page 4 Step 4: A monitoring screen will be shown on the browser. Step 2’s screenshot: Type in the Password Step 4’s screenshot: Web-monitoring screen WX-M4Lite Reception Software Users can install WX-M4Lite reception software from the software CD. WX-M4Lite is a back-end application which works in conjunction with NX network camera to build up a complete IP and mobile surveillance system.
