This Quick Start Guide will guide you how to install and configure the TeleEye MX125E-HD Network
Camera for remote video monitoring.

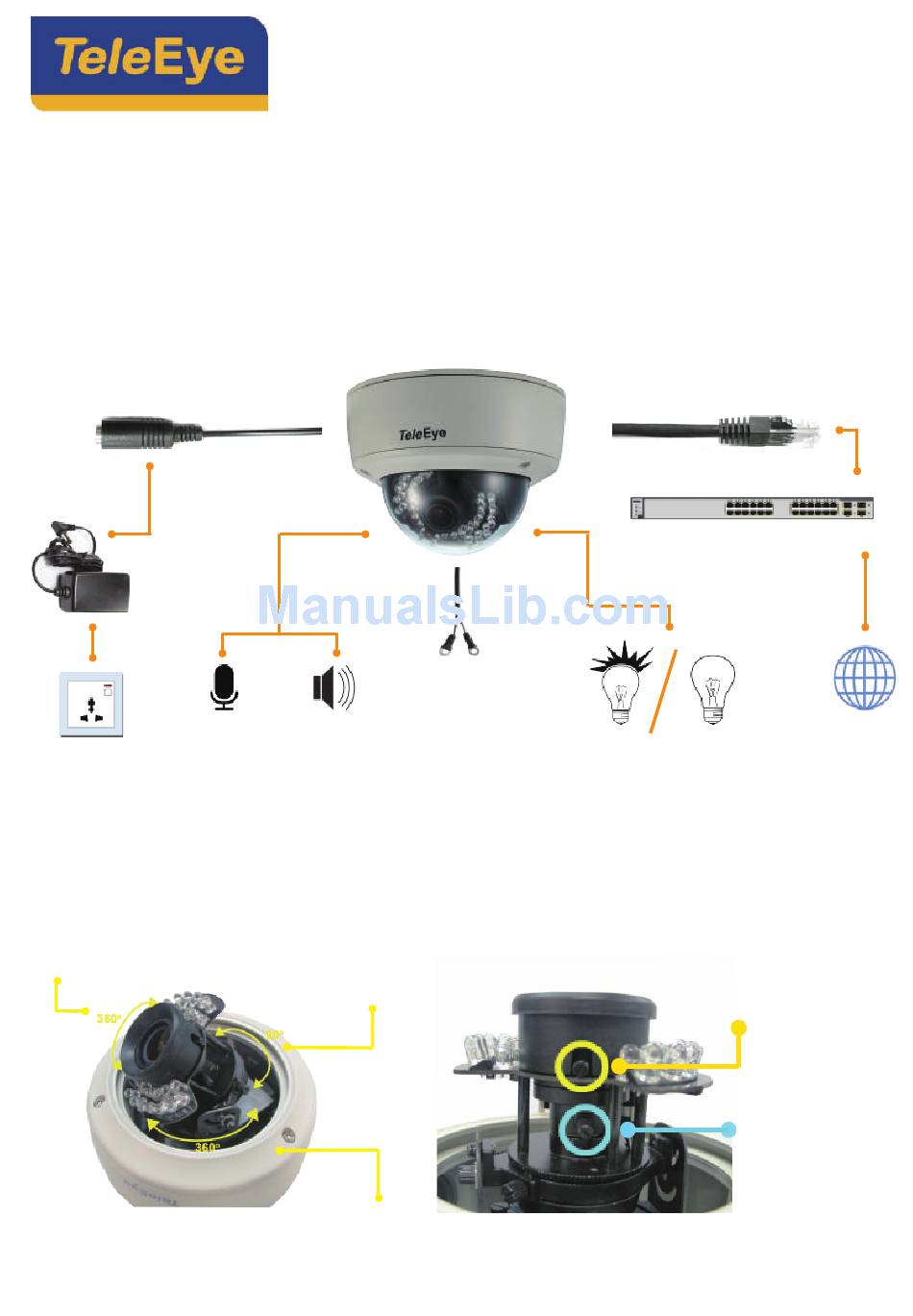

1. Camera Installation
After mounting the camera on the wall or ceiling, connect the Ethernet cable to the
Step 1
LAN adapter. If PoE is not available, connect the 12VDC power supply to the power cable.
[Reference] Please refer to the section 2 for connecting the cable to RJ45 plug.
Power Cable (12V DC)
12V DC
Power Adapter
(Optional)
Audio In
Step 2
Start sureSIGHT or a web browser to start a remote video monitoring in order to adjust
the camera.
[Reference] Please refer to the following sections to understand how to start video monitoring.
Step 3
After removing the camera cover, loosen the screws to adjust the viewing angle of the
camera.
Adjust the direction
Rotation
Step 4
Tighten the screws to fix the direction of the camera module. Close the camera cover.
Quick Start Guide
TeleEye MX125E-HD Network Camera
Alarm Cable
Audio Out
Tilt
Ethernet Cable
Network Switch / Router
Relay
Adjust the zoom :
loosen the screw
and slide the stick
Adjust the focus :
slide the stick
Internet
1
Advertisement
Related Manuals for TeleEye MX125E-HD
Summary of Contents for TeleEye MX125E-HD
-
Page 1: Quick Start Guide
Quick Start Guide TeleEye MX125E-HD Network Camera This Quick Start Guide will guide you how to install and configure the TeleEye MX125E-HD Network Camera for remote video monitoring. 1. Camera Installation After mounting the camera on the wall or ceiling, connect the Ethernet cable to the Step 1 LAN adapter. - Page 2 2. RJ45 Wiring Step 1 Make sure whether Type A or Type B wiring scheme is used for the Ethernet cable (Type B is more common). Step 2 The two colour codes indicated on the plug represent the wiring scheme for Type A and Type B cables.
-
Page 3: Micro Sd Card Installation
Step 2 Connect the corresponding wire to the terminal block plug. Audio Input Audio Input Ground Audio Output Audio Output Ground Relay Terminal 1 Relay Terminal 2 Step 3 Plug in terminal block plug to terminal block. Terminal Block Plug In 4. -
Page 4: Default Username And Password
