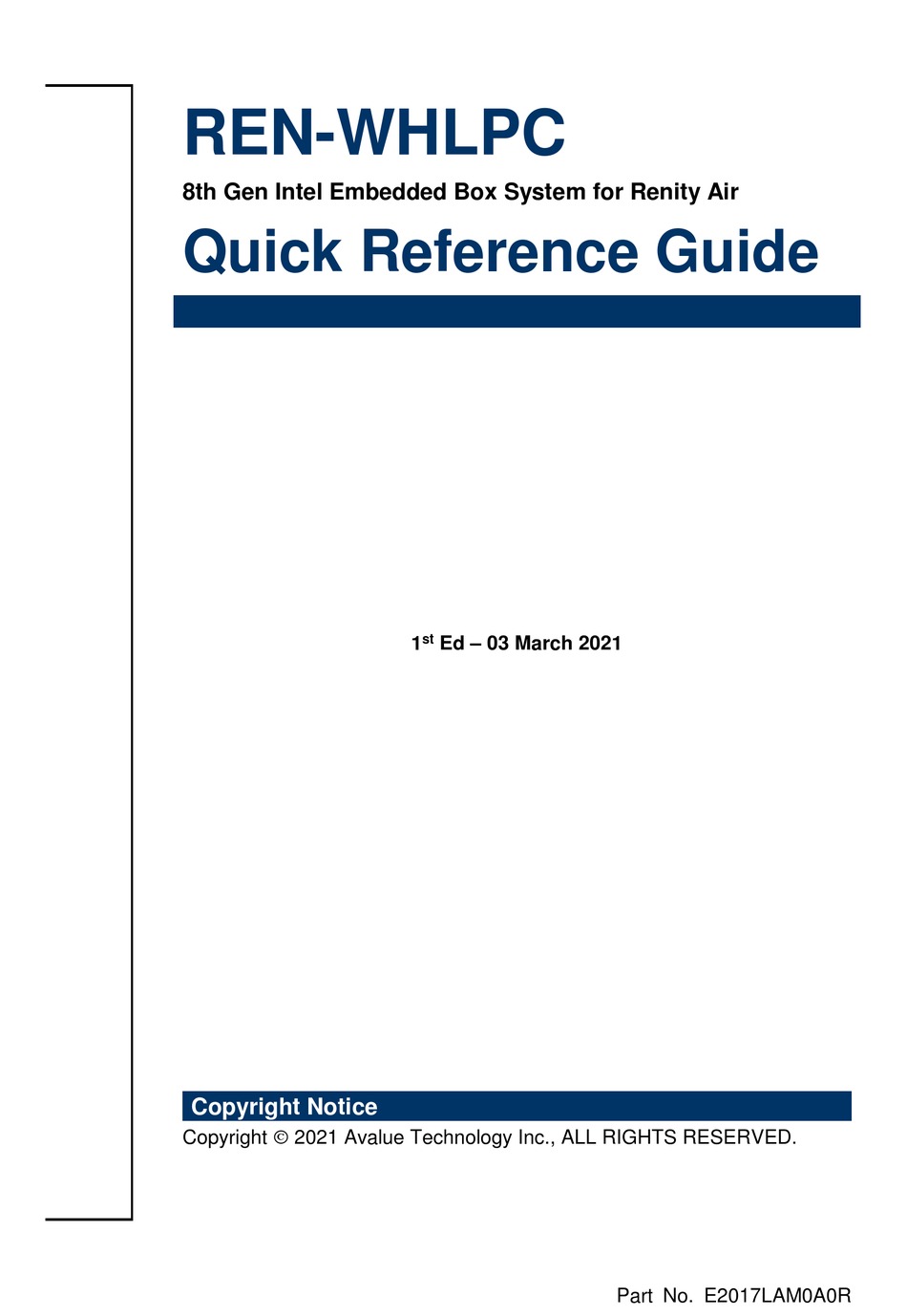

- Page 1 REN-WHLPC 8th Gen Intel Embedded Box System for Renity Air Quick Reference Guide Ed – 03 March 2021 Copyright Notice Copyright 2021 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017LAM0A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 REN-WHLPC Quick Reference Guide...
-
Page 3: Table Of Contents
Top View ..........................7 1.4.2 Side View ..........................7 1.5 System Dimensions ....................9 Hardware Configuration ..................10 2.1 Installing Light Bar ....................11 2.2 Installing Power Cord ....................13 2.3 Installing Touch Monitor (Factory Option) ............... 14 REN-WHLPC Quick Reference Guide... -
Page 4: Getting Started
Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions 1.2 Packing List 1 x REN-WHLPC Intel® Core® Soc Processor Box PC 1 set of Screw kit/Power Cord/Light Bar/Printer Bracket ... -
Page 5: System Specifications
5700K (±10%) >70 Beam Angle 120。 Luminous Flux 500 (lm) Mechanical Power Type 100~240 VAC ± 10%, 50~60Hz Dimension 285*368*280mm (11.22*14.49*11.02) Weight 4.5kg Color White OS Support Win10 Note: Specifications are subject to change without notice. REN-WHLPC Quick Reference Guide... - Page 6 Providing 2 mounting space in coordination with VESA standard:75mm x 75mm and 100mm x100mm. Bearing weight should more than 4KG. The angle of view should be designed adjustable for clear vision. Drawing Demonstration: 6 REN-WHLPC Quick Reference Guide...
-
Page 7: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Top View 1.4.2 Side View Connectors Label Function Note Light Bar Power Switch Light on/off switch AC Inlet For AC power cord REN-WHLPC Quick Reference Guide... - Page 8 REN-WHLPC Power on/off button Power Button USB 2.0 connector USB 2.0 8 REN-WHLPC Quick Reference Guide...
-
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) REN-WHLPC Quick Reference Guide... -
Page 10: Hardware Configuration
REN-WHLPC 2. Hardware Configuration For advanced information, please refer to: 1- ECM-WHL User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 REN-WHLPC Quick Reference Guide... -
Page 11: Installing Light Bar
Quick Reference Guide 2.1 Installing Light Bar Step 1: Take out standard accessories from packaging box. Step 2: Remove tape from cable. REN-WHLPC Quick Reference Guide 11... - Page 12 REN-WHLPC Step 3: Connect two pairs of cables on the light bar and the system. Stow the cable in the telescopic tube and assemble the light bar on the system with screws. 12 REN-WHLPC Quick Reference Guide...
-
Page 13: Installing Power Cord
Quick Reference Guide 2.2 Installing Power Cord Connect the power cord connector to the internal AC Intel through the hole at the bottom of the system. REN-WHLPC Quick Reference Guide 13... -
Page 14: Installing Touch Monitor (Factory Option)
REN-WHLPC 2.3 Installing Touch Monitor (Factory Option) Please note that the touch monitor must be configured according to the instructions. Step1. Assemble 18.5” touch monitor with 18.5” touch monitor. 14 REN-WHLPC Quick Reference Guide... - Page 15 Quick Reference Guide Step2. Disassembling the ARM set and assemble the VESA bracket on the Touch monitor. Step3. Assembling the ARM bracket with 15.6” touch monitor. REN-WHLPC Quick Reference Guide 15...
- Page 16 REN-WHLPC Step 4. Connecting cables (HDMI/USB/Power) of system with Touch monitors. 16 REN-WHLPC Quick Reference Guide...
