Manusa Op. Visio L1H Installation Manual page 9

DMJOIL101EN - v1

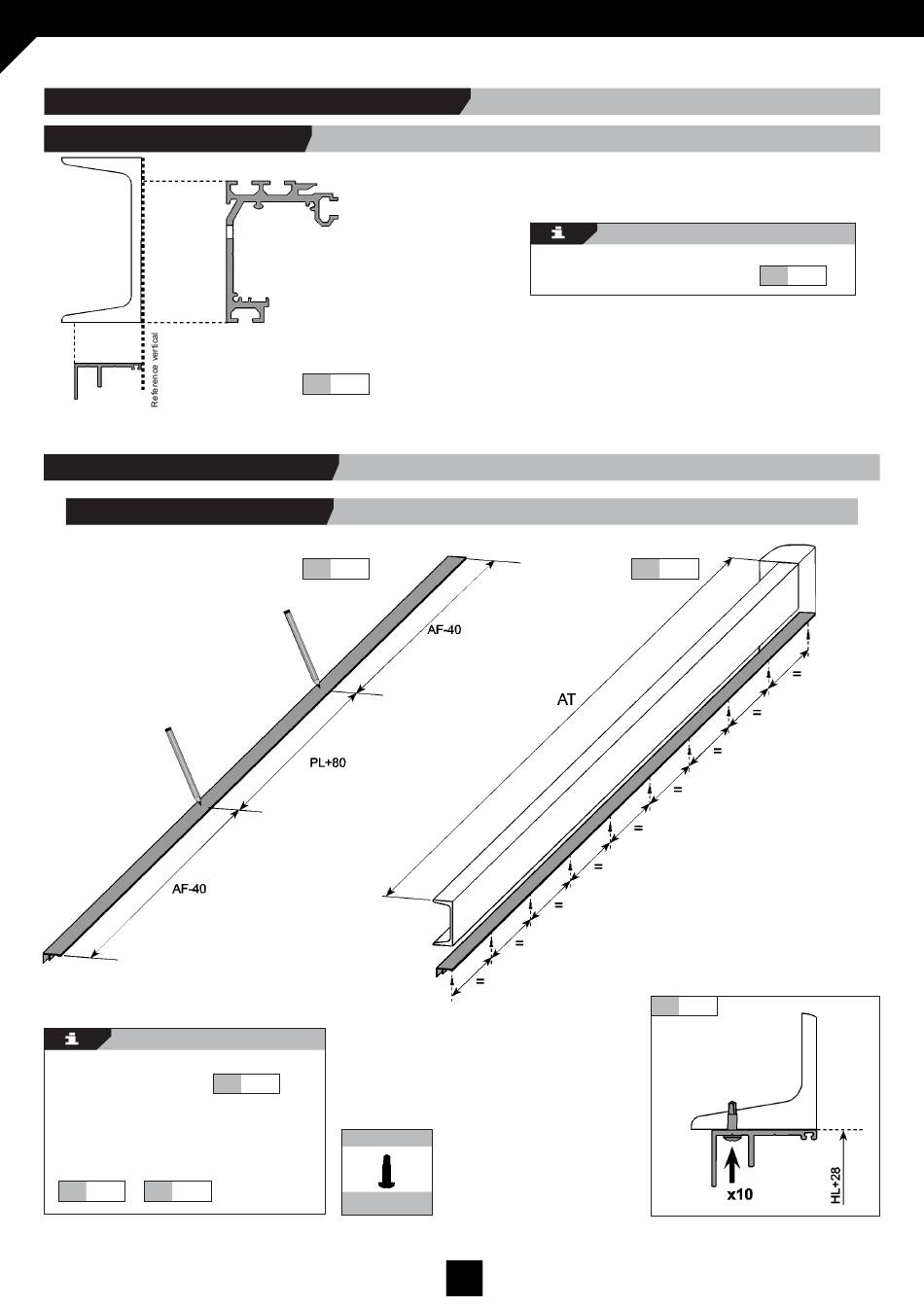

3. MAIN PROFILE AND TOP LINTEL ASSEMBLY
3.1 PROFILES LAYOUT
3.2 TOP LINTEL ASSEMBLY
3.2.1 Mark and screw.
Make marks in the top lintel as shown in
the diagram.
Fig.
Self thread top lintel to the C-beam x10
self-threading screws placed at equal
intervals along the length of the profile, as
shown in the diagrams.
Fig. 3.3 Fig. 3.3
Fig. 3.1
Fig. 3.2
3.2
Nuts & bolts
DIN7504N
VISIO L1H OPERATOR - INSTALLATION MANUAL
Set out the sections as shown in the diagram.
9
Fig. 3.1
Fig. 3.3
Fig. 3.4
