DMJOIL101EN - v1

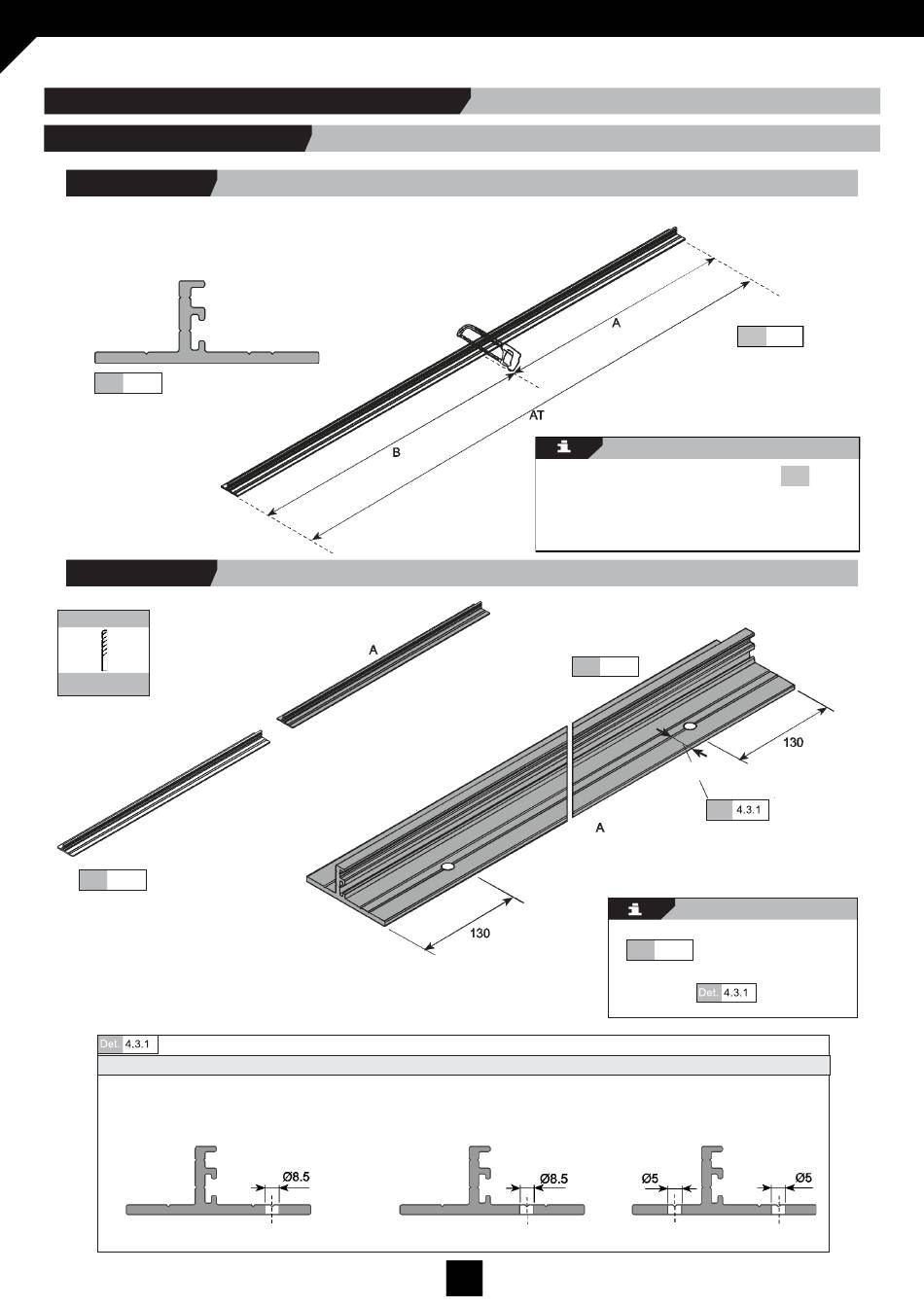

4. BOTTOM LINTEL PREPARATION
4.1 MOUNT LOWER LINTEL.
4.1.1 Cut.
Fig.
4.1
4.1.2 Drill.
Tools
Drill bit no. 8'5/5
Fig.
4.3
Woodw. E20 Woodw. D35 Woodw. 40
VISIO L1H OPERATOR - INSTALLATION MANUAL
Cut section at A and B.
A = AF - 40
B= PL + 40
AF Fixed Leaf width, PL Clear
Fig.
4.4
Drill section A as shown in the diagram.
See table for different frame
dimensions.
Woodw. I30
11
Fig.
4.2
Fig.
Det.
Fig.
4.3
Woodw. 44
4.2.1
