2.2

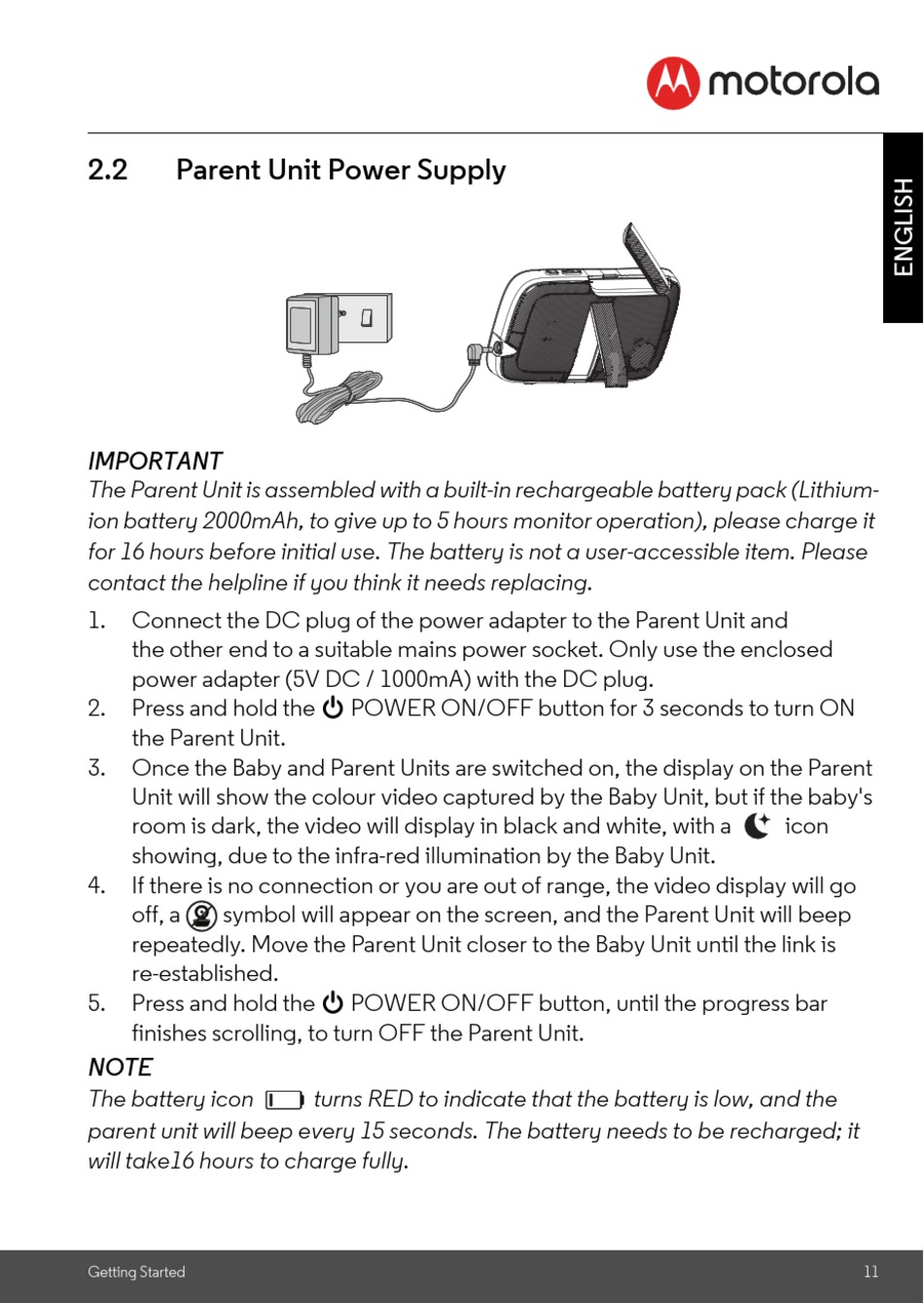

Parent Unit Power Supply

IMPORTANT
The Parent Unit is assembled with a built-in rechargeable battery pack (Lithium-
ion battery 2000mAh, to give up to 5 hours monitor operation), please charge it
for 16 hours before initial use. The battery is not a user-accessible item. Please
contact the helpline if you think it needs replacing.
1. Connect the DC plug of the power adapter to the Parent Unit and
the other end to a suitable mains power socket. Only use the enclosed
power adapter (5V DC / 1000mA) with the DC plug.
2. Press and hold the
the Parent Unit.
3. Once the Baby and Parent Units are switched on, the display on the Parent
Unit will show the colour video captured by the Baby Unit, but if the baby's
room is dark, the video will display in black and white, with a
showing, due to the infra-red illumination by the Baby Unit.
4. If there is no connection or you are out of range, the video display will go
off, a symbol will appear on the screen, and the Parent Unit will beep
repeatedly. Move the Parent Unit closer to the Baby Unit until the link is
re-established.
5. Press and hold the
finishes scrolling, to turn OFF the Parent Unit.
NOTE
The battery icon
parent unit will beep every 15 seconds. The battery needs to be recharged; it
will take16 hours to charge fully.
Getting Started
0
POWER ON/OFF button for 3 seconds to turn ON
0
POWER ON/OFF button, until the progress bar
turns RED to indicate that the battery is low, and the
icon
