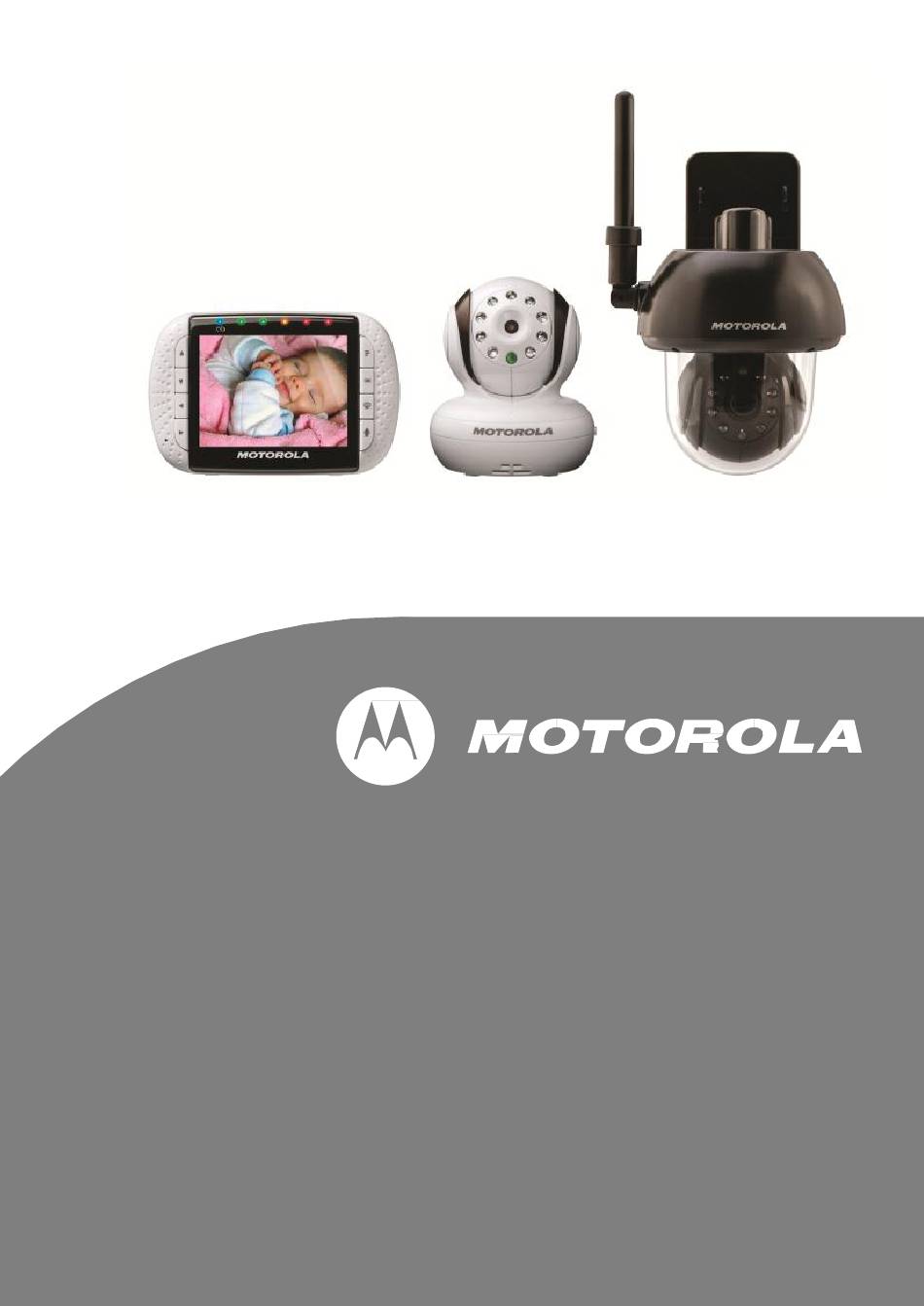

- Page 1 USER’S GUIDE MBP360 BABY MONITOR with INDOOR & OUTDOOR CAMERAS USER’S GUIDE The features described in this User's Guide are subject to modifications without prior notice.
- Page 2 Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP360. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom with the indoor camera. With the outdoor camera, you can also see your children in the backyard.
- Page 3 Overview of the Parent Unit 10. Power Adapter / Battery LED Display (LCD screen) Up Key + BLUE when mains adapter Normal Mode: Tilt Up power on. Menu Mode: Up RED when battery low. Down Key - 11. Unit ON/OFF LED (Green) Normal Mode: Tilt Down 12.
- Page 4 Parent unit menu icons (cont’d) Volume Level Control (8 Levels) & Brightness Level Control (8 Levels) Lullaby Control (5 Song Selections) Zoom Level Control (1X, 2X) Alarm Setting (6h, 4h, 2h, OFF) Cam Control (scan, view, add, del) Temperature Reading (HH F or LL Icon &...
- Page 5 3. Pair Key 2. Infared LEDs 4. Antenna Important guidelines for installing your MBP360 Monitor To use your Outdoor Camera Unit and Monitor Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions.
-
Page 6: Table Of Contents
Outdoor Camera Installation ............14 2.4.1 Mounting the Outdoor Camera ........15 Registration (Pairing) ..............17 View Video Through TV ............. 17 3. Using the Baby Monitor MBP360 ..........18 Setup ..................18 Pan and Tilt ................18 Night Vision Mode..............18 Talk Mode.................. -
Page 7: Safety Instructions
1. Safety Instructions This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance (servicing) instructions in the literature accompanying the unit. WARNING: VOLTAGES IN THIS UNIT ARE HAZARDOUS TO LIFE. DO NOT REMOVE COVERS. - Page 8 WARNING This baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device. ...
- Page 9 WARNING: • Read and Follow Instructions - Please read all the safety and operating instructions before operating the product. Follow all operating instructions. • Retain Instructions - The safety and operating instructions should be retained for future reference. • Heed Warnings - Comply with all warnings on the product and in the operating instructions.
- Page 10 • Surge Protectors - It is highly recommended that the camera equipment be connected to a surge protector. Doing so will protect the equipment from damage caused by power surges. Surge protectors should bear the UL listing mark or CSA certification mark. •...
- Page 11 • Accessories - Do not place this camera equipment on an unstable cart, stand, tripod, or table. The camera equipment may fall, causing serious damage to the product. Use this product only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
-
Page 12: Getting Started
2. Getting Started Indoor Camera Power Supply 1. Connect the small plug of the power adapter to the Indoor Camera and the other end to the electrical outlet. NOTE Only use the enclosed power adapter (5.9V DC / 1000mA). 2. Slide the ON/OFF switch to the ON position. The power LED will light up in green. -
Page 13: Parent Unit Power Supply
Parent Unit Power Supply IMPORTANT Installing the rechargeable battery pack and charging it fully before use is recommended. This will allow the unit to operate on battery in the event of a power failure. 1. Connect the small plug of the power adapter to the parent unit and the other end to the electrical outlet. -
Page 14: Outdoor Camera Installation
2. During power ON, when the adapter is plugged in, the battery icon on screen's top right corner will show that the battery is charging. The Blue LED at the top left corner lights up to indicate that the adapter is plugged in. -
Page 15: Mounting The Outdoor Camera
2.4.1 Mounting the Outdoor Camera Use the mounting screws (included) to mount the bracket to the mounting surface. 1. Mark the position of the screw holes on the wall. 2. Drill 4 holes and hammer the drywall plugs (included) into the holes as needed. - Page 16 4. Place the 4 mounting slots of the camera base on to 4 catches on the mounting plate. Make sure the camera unit sits firmly on the mounting plate with the center holes of 2 parts lined up. 5. Fasten the Camera to the mounting plate at the center hole with the temper-proof screw by the wrench key provided.
-
Page 17: Registration (Pairing)
Registration (Pairing) The Baby monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Indoor Camera loses its link with the Parent Unit. To re-register your Indoor Camera, or register a new Indoor Camera, follow the procedure below: 1. -
Page 18: Using The Baby Monitor Mbp360
3. Using the Baby Monitor MBP360 Setting up Place the Indoor Camera in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Mount the outdoor Camera on the wall under the shelter (recommended) and point the camera lens towards the area you want to monitor. -
Page 19: Video On/Off
84ºF or below 14ºC / 57ºF. The reading will change to HH ºC / ºF if the temperature goes above 36ºC / 97ºF. The reading will change to LL ºC /ºF if the temperature goes below 1ºC / 34ºF. Using the Baby Monitor MBP360... -
Page 20: Mbp360 Parent Unit Menu Options
4. MBP360 Parent Unit Menu Options Volume (Not applicable for Outdoor Camera) 1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or button until is highlighted. 3. Press the UP button or DOWN button to select the desired volume level from level 1 ~ 8. -
Page 21: Alarm
OK button to confirm. CAM 1 CAM 2 CAM 3 CAM 4 will pop up, press the UP button or DOWN button to select desired CAM, and press the OK button to view the picture from that camera. MBP360 Parent Unit Menu Options... -
Page 22: Delete A Camera
1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or RIGHT button until is highlighted. 3. Press the UP button or DOWN button to select ºC or ºF. MBP360 Parent Unit Menu Options... -
Page 23: Disposal Of The Device (Environment)
Dispose of the battery pack in an environmentally-friendly manner according to your local regulations. 6. Cleaning Clean the MBP360 with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care Do not clean any part of the product with thinners or other solvents and chemicals –- this may cause permanent damage to the product... -
Page 24: Help
7. Help Display No display Try recharging or replacing the battery pack. Reset the units. Disconnect the battery pack of the parent unit and unplug both the units' electrical power, then plug them back in. Is the unit turned on? Press and hold the ON/OFF key on the parent unit to turn it ON. - Page 25 Interference Noise interference on your parent unit Your indoor camera and parent units may be too close. Move them farther apart. Make sure there is at least 3 to 6 feet between the indoor camera and parent units to avoid audio feedback. ...
-
Page 26: General Information
To order a replacement battery pack, contact customer service or visit our website. Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory... - Page 27 CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR...
- Page 28 Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or...
- Page 29 Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than MOTOROLA, BINATONE or its authorized service centers, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated;...
- Page 30 FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 31 WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 32 Technical Specifications Indoor Camera (Model: MBP36BU) Frequency 2.4GHz to 2.48GHz Image sensor color CMOS 0.3M Pixels Lens f 2.5mm, F 1.8 IR LED 8 pcs Power Adapter: SCE0591000P; Input: 100-240V, 50/60Hz 300mA; Output: 5.9V, 1000mA OR Adapter: BLJ5W059100P; Input: 100-240V, 50/60Hz 150mA;...
- Page 33 Parent unit (Model: MBP36PU) Frequency 2.4GHz to 2.48GHz Display 3.5" diagonal TFT LCD Display color 16.7M color LCD Brightness control 8 steps Volume control 8 steps Power Adapter: SCB0600500P; Input: 100-240V, 50/60Hz 300mA; Output: 6.0V, 500mA Adapter: BLJ5W060050P; Input: 100-240V, 50/60Hz 150mA;...
- Page 34 MOTOROLA and the Stylized M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2012 Motorola Mobility LLC. All rights reserved. Version 1.0 Printed in China...
