Motorola EASE34 - Video Baby Monitor 4.3" Manual

Overview of the Parent Unit

9Overview of the Parent Unit

  1. Display (LCD screen)
  2. Parent Unit ON/OFF and Charging LED
    Red when the parent unit is ON.
    Purple when electrical outlet connected.
    Blue when off and connected to electrical outlet.
  3. Audio Level LEDs (Green, Green, Amber, Red, Red)
  4. MENU button
    Press to open / close the Menu options.
  5. VIDEO ON/OFF button
    Press to turn the LCD screen ON/OFF (Note: audio is maintained.)
  6. Navigation button
    Move Up/Down/Right/Left menu options.
  7. OK button
  8. Power button
    Press and Hold to turn the Parent Unit ON/OFF.
  9. TALK button
    Press and hold to speak to your baby.
  10. Mocrophone
  11. Antenna
  12. RESET button (recessed - use small pin)
  13. Speaker
  14. Power Socket
  15. Stand

Parent Unit menu icons

Signal Level (5 Levels)
Night Vision Mode (Video also changes to Black/White).
Talk Mode On.
Indicates the screen off timer is set.
Volume Level Control (8 Levels).
No Baby Unit detected.
Battery Level Indication (4 Levels).
Zoom Level Control (1X, 2X).
LCD Brightness Level Control (8 Levels).
Lullaby Control (5 Song Selections).
Alarm Setting (6h, 4h, 2h, OFF)
On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed.
Temperature scale select (°C/°F)
Readings display in BLUE, but turn RED if > 29°C / 84°F or < 14°C / 57°F.
Displays HH °C / °F if >36°C / 97°F.
Displays LL °C / °F if < 1°C / 34°F.
Camera Control (scan , view , add , del ).
Set Screen Off Timer (Off , 5 mins, 30 mins, 60 mins).
View multiple cameras on screen. Available when you have more than 1 Baby Unit (Camera).
Home page of Hubbleconnect, Scan the QR code to download the Hubble for Motorola Monitors App on Smartphone or tablet.

Overview of Your Baby Unit

Overview of Your Baby Unit

  1. Infrared LEDs (x 8, for night vision)
  2. Photo Sensor (Night Vision Mode)
  3. Camera Lens
  4. Power/Link indicator
  5. High Sense Microphone
  6. Speaker
  7. PAIR button
  8. Power Socket
  9. Temperature Sensor

Important guidelines for installing your Digital Video Baby Monitor

  • To use your Baby Unit and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions.
  • Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the Baby Unit and Parent Unit may block the radio signal.
  • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches.
  • Other 2.4GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™ systems, microwave ovens or other Baby Monitors, may cause interference with this product, so keep the Baby Monitor at least 5ft (1.5m) away from these types of product, or switch them off if they appear to be causing interference.
  • If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms.

Wi-Fi® CAMERA UNIT SET UP & USE

  • Choose a location for the Baby Unit that will provide the best view of your baby in his/her crib.
  • Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit on a wall securely using the keyhole slots in the underside of the stand.
  • NEVER place the Baby Unit or cords within the crib.


This Baby Monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device.

  • Adult assembly is required. Keep small parts away from children when assembling.
  • This product is not a toy. Do not allow children to play with it.
  • This Baby Monitor is not a substitute for responsible adult supervision.
  • Keep this User's Guide for future reference.
  • Keep the cords out of reach of children.
  • Do not cover the Baby Monitor with a towel or blanket.
  • Test this monitor and all its functions so that you are familiar with it prior to actual use.
  • Do not use the Baby Monitor in damp areas or close to water.
  • Do not install the Baby Monitor in extreme cold or heat, direct sunlight, or close to a heat source.
  • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.
  • Do not touch the plug contacts with sharp or metal objects.
  • Connect the power adapters to easily accessible electrical sockets.


There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to their instructions. Use only the rechargeable battery pack with rating: 3.7V 1200mAh.

Getting Started

Connecting the Power Supply for the Baby Unit

  • Insert the DC plug of the power adapter into the DC socket on the back of the Baby Unit.
  • Connect the other end of the power adapter to a suitable electrical outlet.
  • The baby unit turns on and the power indicator lights in Blue colour.

warning Note:
Only use the supplied power adapter (DC5V/600mA).

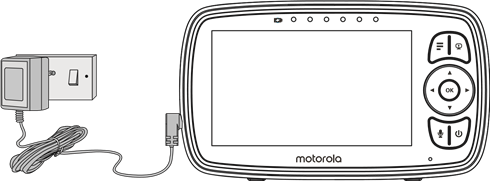

Connecting the Power Supply of the Parent Unit

A rechargeable battery (Lithium ion battery 1200mAh) inside the Parent Unit allows you to move it without losing the link and picture from the Baby Unit. We recommend charging the for at least 16 hours before first use, and when the Parent Unit indicates the battery is low.
Connecting the Power Supply of the Parent Unit

  • Connect the small plug of the power adapter to the parent unit and the other end to the electrical outlet. Only use the enclosed adapter (5VDC/600mA).
  • Press and hold the 0 button to turn the Parent unit on, the Parent unit and Baby unit are automatically linked and ready to use.

warning NOTE:
When the Baby and Parent Units are both turned on and within range, the Parent Unit should show a color image from the Baby Unit camera, but if the room is dark, the image will be in black and white, with an icon showing, due to the infra-red illumination by the Baby Unit.

Desktop Stand of the Parent Unit

  • The parent unit comes with a desktop stand attached to theback of the parent unit.
  • To place the parent unit on a desk, simply pull out the stand, as shown.
    Desktop Stand of the Parent Unit

warning NOTE:
Place the parent unit on a flat, even surface.

Registration (Pairing)

The Baby Monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit.
To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below:

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up.
  3. Press the UP button or DOWN button to select add, and press the OK button to confirm.
  4. Camera / / / will pop up. Press the UP button or DOWN button to select the desired Camera, and press the OK button to start searching for a camera unit.
    warning Note: If a camera is currently paired with the Parent Unit, its camera location (with a * against it) cannot be selected for a new registration.
  5. Press and hold the PAIR button on the back of the Baby Unit until the Parent Unit finds the camera, beeps and PAIR OK appears on the screen. The video from the camera will then appear.

warning NOTE:
A camera can only be registered to one Parent Unit at any one time.

Using the Baby Monitor

Setting Up

Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit.

warning NOTE:
Do not place the Baby Unit within the baby's reach! If there is interference with the picture or sound, try moving the units to different locations, and ensure they are not close to other electrical equipment.

Night Vision Mode

The Baby Unit has 8 high-intensity infrared LEDs for picking up clear images in the dark. When the built-in photo sensor on the top of the Unit detects a low level of ambient light, the LEDs will automatically activate and the screen on the Parent Unit will display in black and white. The icon will be displayed at the top of the screen.

Talk Mode

Press and hold the TALK button on the Parent Unit to talk to your baby through the Baby Unit's loudspeaker.
The icon will be displayed at the top of the LCD screen.

Video ON/OFF

Press VIDEO On/Off button to turn the LCD screen on or off, whilst still leaving the audio monitor on.

Temperature Display (HH °C / °F or LL °C / °F)

The temperature reading from the temperature sensor at the back of the Baby Unit will be displayed at the top of the LCD screen. The readings will turn RED if the temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading will change to HH °C / °F if the temperature goes above 36°C / 97°F. The reading will change to LL °C / °F if the temperature goes below 1°C / 34°F.

Parent Unit Menu Options

Volume

Press the Left or Right button to adjust the volume level.
The icon will pop up and you can select the desired volume from level 0~8. (The default volume level setting is level 5, and level 0 is OFF.)

Zoom

  1. Press the button and the menu bar will pop up with highlighted.
  2. Press the UP button or DOWN button to select 1X or 2X zoom. (The default setting is 1X.)

Brightness

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted.
  3. Press the UP button or DOWN button to select the desired brightness from level 1 ~ 8. (The default brightness is level 4.)

Lullaby

  1. Tap on button then Scroll Left/Right to select option at the menu bar.
  2. Press Up or Down button to view the desired song from the 5 lullabies available, or the cycle option to play all 5 songs in turn. (The default setting is lullaby OFF).
  3. Press OK button to play the selected lullaby.
  4. The volume level setting will pop up,
  5. Press UP button or DOWN button to select the volume level of audio playback.

Alarm

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted.
  3. Press the UP button or DOWN button to select the alarm time (6h, 4h, 2h). (The default setting is Alarm OFF.)
  4. If an alarm time is selected, the Parent Unit will beep for about 45 seconds after every 6, 4 or 2 hour period.

Camera Control

Add (pair) a camera

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up.
  3. Press the UP button or DOWN button to select add, and press the OK button to confirm.
  4. Camera / / / will pop up. Press the UP button or DOWN button to select the desired Camera, and press the OK button to start searching for a camera unit.
    warning Note: If a camera is currently paired with the Parent Unit, its camera location (with a * against it) cannot be selected for a new registration.
  5. Press and hold the PAIR button on the underside of the Baby Unit until the Parent Unit finds the camera, beeps and PAIR OK appears on the screen. The video from the camera will then appear.

warning NOTE:
A camera can only be registered to one Parent Unit at any one time.

View a camera

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up.
  3. Press the UP button or DOWN button to select add, and press the OK button to confirm.
  4. Camera / / / will pop up. Press the UP button or DOWN button to select the desired Camera, and press the OK button to view the picture from that camera.

warning Note:
Only camera locations with a * can be selected.

information TIP
You can also press the OK button repeatedly to select the avail-able camera options from / / / , scan.

Delete a camera

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up.
  3. Press the UP button or DOWN button to select del, and press the OK button to confirm.
  4. Camera / / / will pop up, press the UP button or DOWN button to select the desired Camera, and press the OK button.
  5. Press the UP button or DOWN button to select , then press the OK button to delete that registration.

warning NOTE:
You are not allowed to delete the camera if there is only one registered camera in the system.

Scan camera

This function is only available when you have more than 1 Baby Unit (Camera).

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up.
  3. Press the UP button or DOWN button to select scan, and press the OK button to confirm.
  4. The screen will then display images from different registered cameras in a loop of Camera / / / , changing about every 12 seconds.

information TIP
You can also press the OK button repeatedly to select the available camera options from / / / , scan.

Temperature

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted.
  3. Press OK, then UP / DOWN to select °C or °F.

Power Saving mode

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted.
  3. Press the UP button or DOWN button to select auto video off after 5 mins, 30 mins or 60 mins (if operating on batteries only)..

warning NOTE:
The audio will remain and you can press any key to switch the video back on.

View multiple cameras on screen

This function is only available when you have more than 1 Baby Unit (Camera). When the Split Screen function is On, you can view multiple cameras on the screen.

  1. Press the button and the menu bar will pop up.
  2. Press the LEFT button or RIGHT button until is highlighted.
  3. Press UP button or DOWN button to select Split Screen On / Off .
  4. When the Split Screen function is On, you can press the LEFT button/ RIGHT button/ UP button/ DOWN button to switch between cameras to hear the audio from the selected camera.

Disposal of the Device (environment)

At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this.

Some of the product materials can be re-used if you take them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment.

Please contact your local authorities in case you need more information on the collection points in your area.

The internal battery should be disposed of with the Parent unit in an environmentally-friendly manner according to your local regulations.

Cleaning

Clean the Baby Monitor with a slightly damp cloth or with an antistatic cloth. Never use cleaning agents or abrasive solvents.

Cleaning and care

  • Do not clean any part of the product with thinners or other solvents and chemicals – this may cause permanent damage to the product which is not covered by the warranty.
  • Keep the Baby Monitor away from hot, humid areas or strong sunlight, and don't let it get wet.
  • Every effort has been made to ensure high standards of reliability for your Baby Monitor. However, if something does go wrong, please do not try to repair it yourself – contact Customer Service for assistance.


Always switch off and disconnect the power adapter before cleaning your baby monitor.

Help

Display

  • Try recharging the battery pack.
  • Reset the Units. Unplug both the Units' electrical power, then plug them back in.
  • Is the Unit switched on?
  • Press and hold the ON/OFF button on the Parent Unit for 3 seconds to switch it ON.
  • Is the correct camera selected? Change the camera number, if necessary.
  • Is the video display turned on? Press the VIDEO ON/OFF button to turn it ON.
  • When operating using batteries only, the display will go blank after 5 minutes or 30 minutes or 60 minutes to save power (depending on video settings). The Unit is still active and will give you audio alerts. You can reactivate the screen by pressing any button.

Registration
If the Baby Unit has lost its link with the Parent Unit

  • If the Baby Unit is too far away it may be going out of range, so move the Baby Unit closer to the Parent Unit.
  • Reset both the Parent Unit and Baby Unit by disconnecting them from the electrical power. Wait about 15 seconds before reconnecting. Allow up to one minute for the Baby Unit and the Parent Unit to synchronize.
  • See 2.3 Registration (Pairing), if there is a need to re-register the Units.

Interference
Noise interference on your Parent Unit

  • Your Baby and Parent Units may be too close. Move them further apart.
  • Make sure there is at least 1 to 2m between the 2 Units to avoid audio feedback.
  • lf the Baby Unit is too far away, it may be out of range. Move the Baby Unit closer to the Parent Unit.
  • Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/ mobile telephone. Move the Baby Unit or Parent Unit 5 feet away from other electrical equipment.
  • Use of other 2.4 GHz products, such as wireless networks (WiFi® routers), Bluetooth™ systems, or microwave ovens, may cause interference with this product. Keep the Baby Unit or Parent Unit at least 5 feet away from these types of products, or switch them off if they appear to be causing interference.
  • If the signal is weak, try moving the Parent and/or Baby Unit to different positions in the rooms.

Noise interference on your device

  • To avoid background noise or echoes, ensure that there is enough distance between your device and the Wi-Fi® Camera Unit.
  • Use of other 2.4 GHz products, such as Bluetooth™ systems or microwave ovens, may cause interference with this product. Keep the Wi-Fi® Camera Unit at least 3 feet away from these types of products, or switch them off if they appear to be causing interference.

Lost connection

  • Check your Wi-Fi® settings. If necessary, reconnect your Wi-Fi®. Ensure that the Wi-Fi® Camera Unit is switched ON. Wait a few minutes to make the connection with the Wi-Fi® system.

Technical Specifications

BABY UNIT

Frequency 2400 MHz to 2483.5 MHz
Image sensor color CMOS 2M Pixels
IR LED 8 pcs
Operating Temperature 41oF - 104oF
Power Adapter: YWK-AD050060-U (YWK)
Input: 100-240V AC, 50/60Hz, 300mA;
Out-put: 5.0V DC, 600mA

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Motorola EASE34 - Video Baby Monitor 4.3" Manual

Advertisement

Table of Contents
