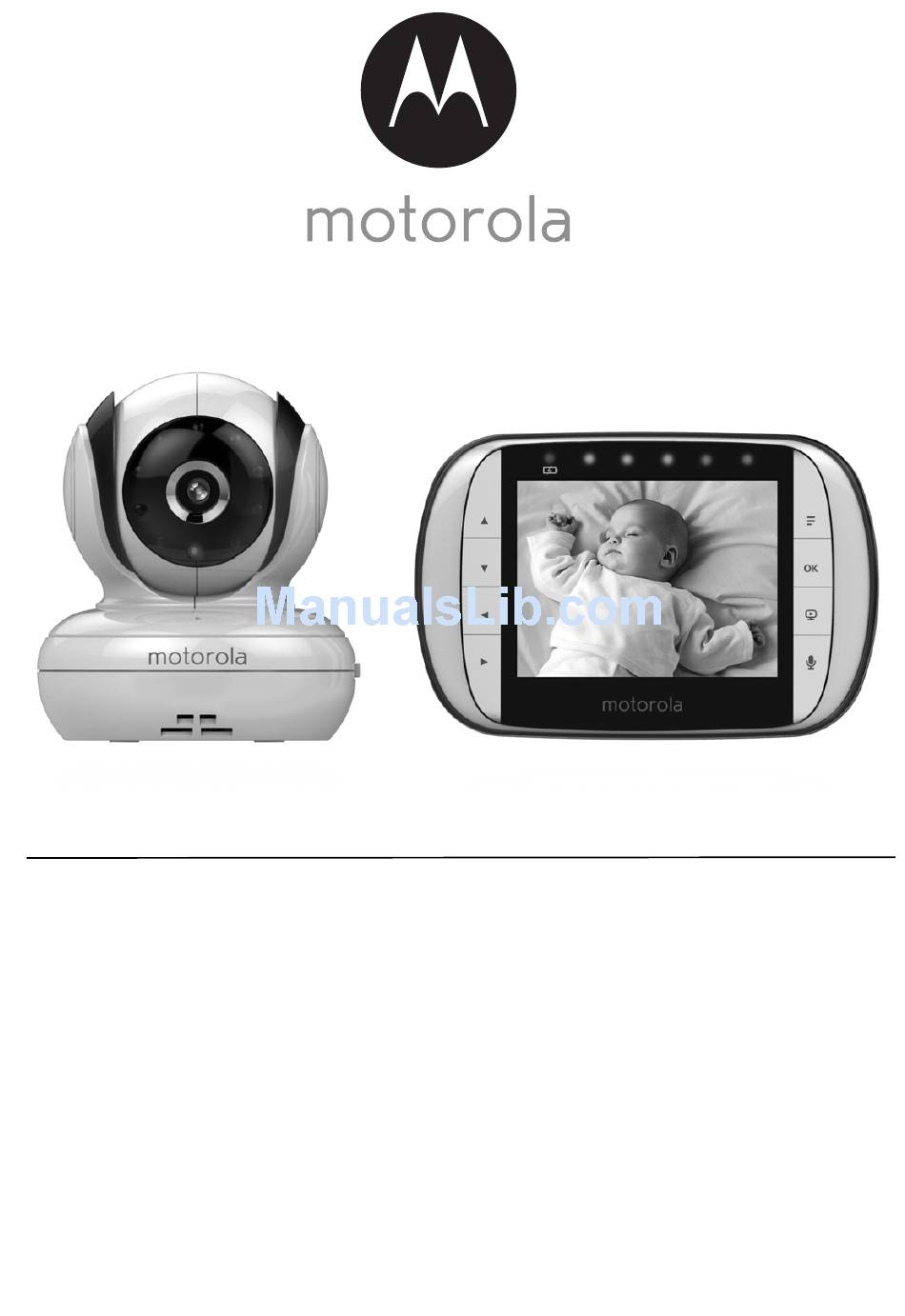

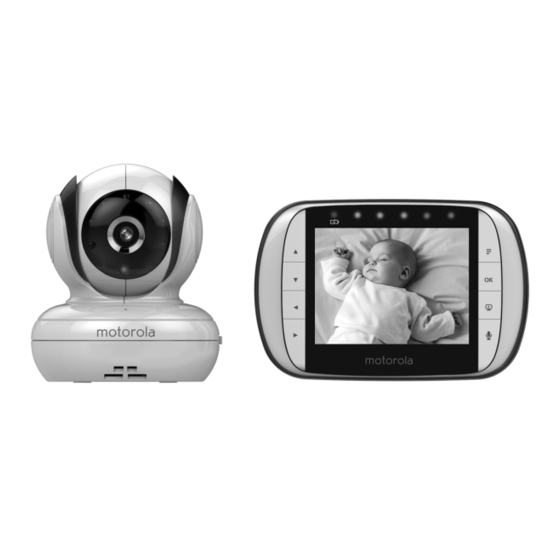

- Page 1 User’s Guide Digital Video Baby Monitor Models: MBP36S, MBP36S-2, MBP36S-3, MBP36S-4 The features described in this User’s Guide are subject to modifications without prior notice.
- Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
-
Page 3: Overview Of Parent Unit
Display (LCD screen) Talk Key Up Key Press and hold to speak to your Normal Mode: Tilt Up baby Menu Mode: Up Power Adapter / Battery LED Down Key BLUE when mains adapter Normal Mode: Tilt Down power on. Menu Mode: Down RED when battery low. -
Page 4: Overview Of Baby Unit
Parent unit menu icons (cont’d) Volume Level Control (8 Levels) Zoom Level Control (1X, 2X) Brightness Level Control (8 Levels) Lullaby Control (5 Song Selections) Alarm Setting (6h, 4h, 2h, Off Temperature Reading (HH ºC / ºF or LL ºC / ºF) Icon &... -
Page 5: Table Of Contents
Table of contents 1. Safety Instructions ..................6 2. Getting Started..................9 Baby Unit Power Supply ................9 Parent Unit Battery Installation ..............9 Parent Unit Power Supply .................10 3. Using the Baby Monitor................12 Registration (Pairing)................. 11 View Video Through TV................11 Setting up.................... -
Page 6: Safety Instructions
WARNING: STRANGULATION HAZARD - Keep the unit and adapter cord more than 1 metre from the cot and out of the baby's reach. NEVER place camera or cords within the cot. Secure the cords more than 1 metre away from the baby's reach. Never use extension cords with AC Adapters. - Page 7 CAMERA SET UP & USE: ● Determine a location for the Baby Unit that will provide the best view of your baby in his/her cot. ● Place the BABY UNIT on a flat surface, such as a dresser, bureau, or shelf or mount the Unit to a wall securely using the keyhole slots under the stand.
- Page 8 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Only insert a battery pack of the same type. • Do not touch the plug contacts with sharp or metal objects. CAUTION Risk of explosion if battery is replaced by an incorrect type.
-
Page 9: Getting Started
Baby Unit Power Supply 1. Connect the small plug of the power adapter to the baby unit (camera) and the other end to a suitable mains power socket. Parent Unit Battery Installation 2. Slide the ON/OFF switch to the ON position. The power LED will light up in green. -
Page 10: Parent Unit Power Supply
Parent Unit Power Supply 1. Connect the small plug of the power adapter to the parent unit and the other end to a suitable mains power socket.Only use the enclosed power adapter (5V DC / 600mA) with the slightly smaller DC plug. 2. -
Page 11: Registration (Pairing)
Registration (Pairing) 2. During power ON, when adapter is plugged in, the battery icon on screen's top right corner will show that the battery is charging. The Blue LED at the top left corner light up indicates adapter is plugged in. The Baby monitor is pre-registered to your Parent Unit. -
Page 12: Using The Baby Monitor
Setting up • Place the baby unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. • Adjust the baby unit's head angle by rotating the camera up, down, left and right until you are satisfied with the image in the parent unit. -
Page 13: Temperature Display (Hh °C / °F Or Ll °C / °F)
Temperature Display (HH °C / °F or LL °C / °F) The temperature reading from the temperature sensor at the back of the Baby Unit will be displayed at the top of the LCD screen. The readings will turn RED if the temperature goes above 29°C / 84°F or below 14°C / 57°F. -
Page 14: Parent Unit Menu Options
Volume Brightness 1. Press the button and the menu bar will pop up. 2. Press the LEFT button or button until is highlighted. 3. Press the UP button or DOWN button to select the desired volume level from level 0 ~ 8. (The default volume level setting is level 4.) 1. -
Page 15: Camera Control
Camera Control 4.6.1 Add (pair) a camera del/add/view/scan 1. Press the button and the menu bar will pop up. 2. Press the LEFT button or RIGHT button until is highlighted, and cam 1 cam 2 cam 3 cam 4 menu will pop up. 3. -
Page 16: Delete A Camera
4.6.4 Delete a camera del/add/view/scan 1. Press the button and the menu bar will pop up. 2. Press the LEFT button or RIGHT button until is highlighted, and cam 1 cam 2 cam 3 cam 4 menu will pop up. 3. -
Page 17: Disposal Of The Device (Environment)
At the end of the product lifecycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this. -
Page 18: Cleaning
Cleaning and care Clean the baby monitor with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. • Do not clean any part of the product with thinners or other solvents and chemicals –- this may cause permanent damage to the product which is not covered by the warranty. -
Page 19: Help
Display • Try recharging or replacing the battery pack. • Reset the units. Disconnect the battery pack of the parent unit and unplug both the units' electrical power, then plug them back in. • Is the unit turned on? Press and hold the ON/OFF button on the parent unit to turn it ON. - Page 20 Interference • Your baby and parent units may be too close. Move them farther apart. • Make sure there is at least 1 to 2 metre between the 2 units to avoid audio feedback. • lf the baby unit is too far away it may be out of range, so move the baby unit closer to the parent unit.
-
Page 21: General Information
("Warranty") Email: motorola-mbp@tdm.de To order a replacement battery pack, contact customer service. Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). 8. General Information Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold... - Page 22 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 23 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
- Page 24 Unauthorised Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than MOTOROLA, BINATONE or its authorised service centres, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated;...
- Page 25 NW2 7HF, United Kingdom. Declare under our sole responsibility that the following product Type of equipment: Digital Video Baby Monitor Model Name: MBP36S, MBP36S/2, MBP36S/3, MBP36S/4 Country of Origin: China Brand: Motorola complies with the essential protection requirements of R&TTE Directive 1999/5/EC on the...
-
Page 26: Technical Specifications
Technical Specifications Baby unit Frequency 2.4 GHz to 2.48 GHz Image sensor colour CMOS 0.3M Pixels Lens f 2.5mm, F 2.8 IR LED 8 pcs Power Adapter: Ten Pao International Ltd. S006MV0500100; Input: 100-240V, 50/60HZ 300mA; Output: 5.0V, 1000mA Adapter: Kuantech Incorporated Company KSAS0050500100VED;... - Page 27 Parent unit Frequency 2.4 GHz to 2.48 GHz Display 3.5" diagonal TFT LCD Display colours 16.7M colour LCD Brightness control 8 steps Volume control 8 steps Power Adapter: Ten Pao International Ltd. S003IV0500060; Input: 100-240V, 50/60Hz 150mA; Output: 5.0V, 600mA Adapter: ShenZhen Frecom Electronic Co., LTD F05W-050060SPAV Input: 100-240V, 50/60Hz 150mA;...
