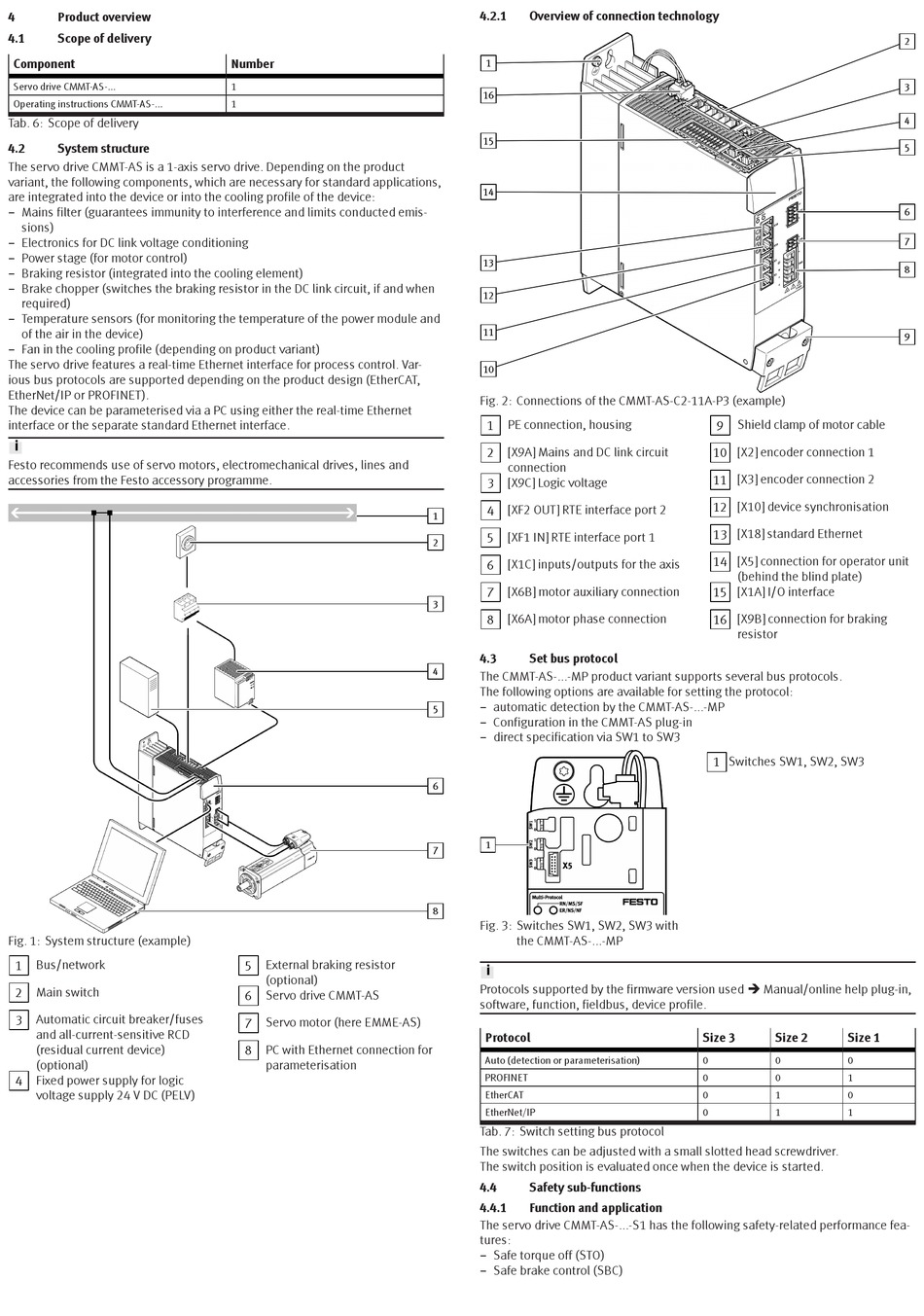

Festo CMMT-AS-C2-11A-P3 S1 Series Operating Instructions Manual page 3

4 Product overview
4.1 Scope of delivery
Component
Servo drive CMMT-AS-...
Operating instructions CMMT-AS-...
Tab. 6: Scope of delivery
4.2 System structure
The servo drive CMMT-AS is a 1-axis servo drive. Depending on the product
variant, the following components, which are necessary for standard applications,
are integrated into the device or into the cooling profile of the device:
– Mains filter (guarantees immunity to interference and limits conducted emis-
sions)
– Electronics for DC link voltage conditioning
– Power stage (for motor control)
– Braking resistor (integrated into the cooling element)
– Brake chopper (switches the braking resistor in the DC link circuit, if and when
required)
– Temperature sensors (for monitoring the temperature of the power module and
of the air in the device)
– Fan in the cooling profile (depending on product variant)
The servo drive features a real-time Ethernet interface for process control. Var-
ious bus protocols are supported depending on the product design (EtherCAT,
EtherNet/IP or PROFINET).
The device can be parameterised via a PC using either the real-time Ethernet
interface or the separate standard Ethernet interface.
Festo recommends use of servo motors, electromechanical drives, lines and
accessories from the Festo accessory programme.
Fig. 1: System structure (example)
Bus/network
1
Main switch
2
Automatic circuit breaker/fuses
3
and all-current-sensitive RCD
(residual current device)
(optional)
4 Fixed power supply for logic
voltage supply 24 V DC (PELV)
Number
1
1
External braking resistor
5
(optional)
Servo drive CMMT-AS
6
Servo motor (here EMME-AS)
7
PC with Ethernet connection for
8
parameterisation
4.2.1 Overview of connection technology
1
16
15
14
13
12
11
10
Fig. 2: Connections of the CMMT-AS-C2-11A-P3 (example)
PE connection, housing
1
[X9A] Mains and DC link circuit
2
connection
3 [X9C] Logic voltage
4 [XF2 OUT] RTE interface port 2
1
5 [XF1 IN] RTE interface port 1
2
6 [X1C] inputs/outputs for the axis
7 [X6B] motor auxiliary connection
3
8 [X6A] motor phase connection
4.3 Set bus protocol
4
The CMMT-AS-...-MP product variant supports several bus protocols.
The following options are available for setting the protocol:
– automatic detection by the CMMT-AS-...-MP
5
– Configuration in the CMMT-AS plug-in
– direct specification via SW1 to SW3
6
1
7
8
Fig. 3: Switches SW1, SW2, SW3 with
the CMMT-AS-...-MP
Protocols supported by the firmware version used è Manual/online help plug-in,
software, function, fieldbus, device profile.
Protocol
Auto (detection or parameterisation)
PROFINET
EtherCAT
EtherNet/IP
Tab. 7: Switch setting bus protocol
The switches can be adjusted with a small slotted head screwdriver.
The switch position is evaluated once when the device is started.
4.4 Safety sub-functions
4.4.1 Function and application
The servo drive CMMT-AS-...-S1 has the following safety-related performance fea-
tures:
– Safe torque off (STO)
– Safe brake control (SBC)
Shield clamp of motor cable
9
[X2] encoder connection 1
10
[X3] encoder connection 2
11
[X10] device synchronisation
12
[X18] standard Ethernet
13
14 [X5] connection for operator unit
(behind the blind plate)
15 [X1A] I/O interface
16 [X9B] connection for braking
resistor
Switches SW1, SW2, SW3
1
Size 3 Size 2 Size 1
0 0 0
0 0 1
0 1 0
0 1 1
2
3
4
5
6
7
8
9
