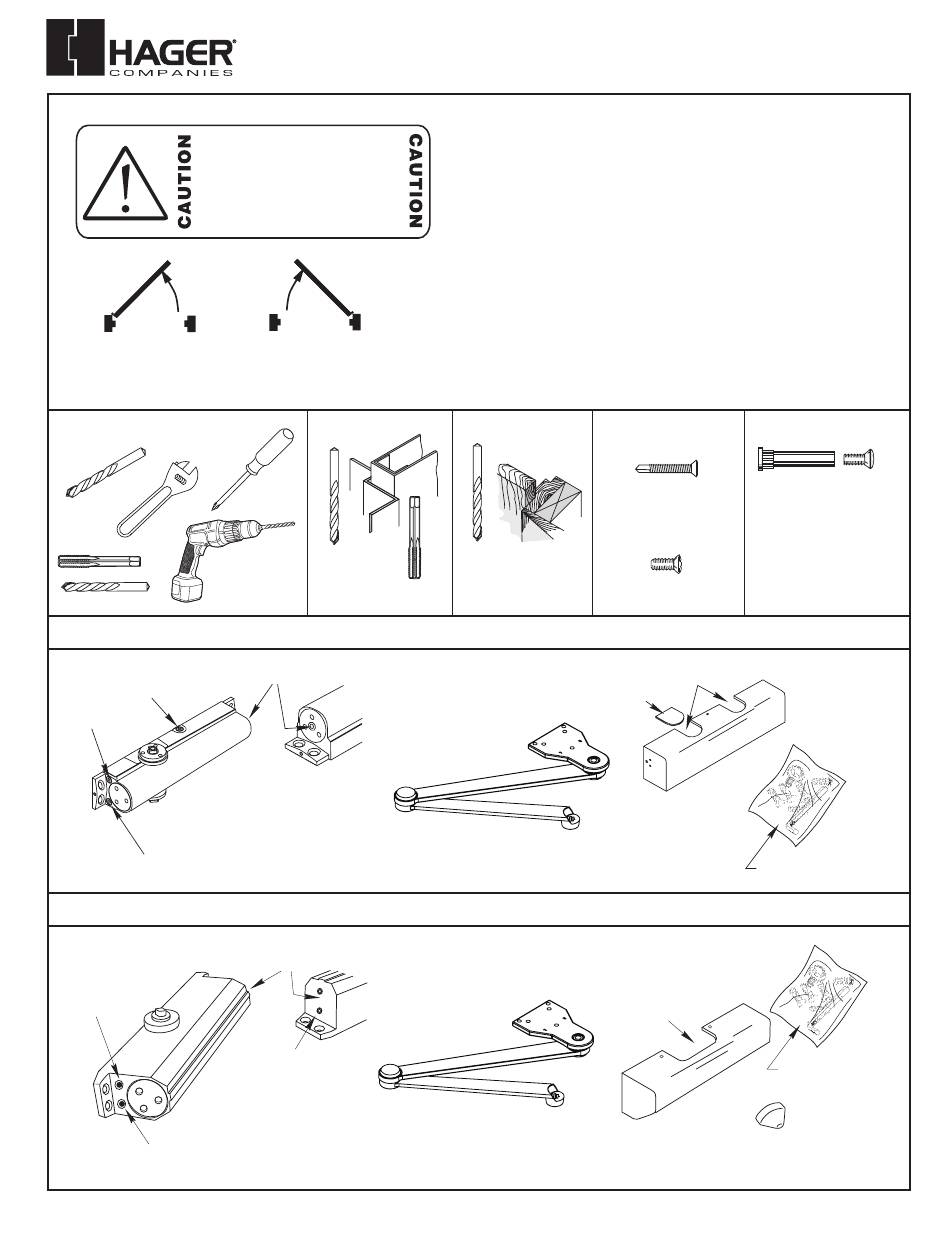

An incorrectly installed or
improperly adjusted door closer
can cause property damage or
personal injury. These installation
instructions should be followed
to avoid the possibility of
misapplication or misadjustment.
Handing of Door
L
t f e
H
a
d n
These door closers should NOT be installed on the exposed side (weather side) of exterior doors.
TOOLS REQUIRED
TOOLS REQUIRED
COMPONENT PARTS
5200 CLOSER COMPONENT PARTS
COMPONENT PARTS
BACKCHECK VALVE
BACKCHECK VALVE
LATCH VALVE
LATCH VALVE
CLOSER BODY
CLOSER BODY
SWEEP VALVE
SWEEP VALVE
5300 CLOSER COMPONENT PARTS
LATCH VALVE
CLOSER BODY
SWEEP VALVE
REV: 2
REV DATE: 11/04/2020
R
g i
t h
H
a
d n
METAL
METAL
#7
#7
1/4"- 20
1/4"- 20
POWER ADJUSTMENT SHAFT
POWER ADJUSTMENT SHAFT
POWER ADJUSTMENT SHAFT
BACKCHECK VALVE
5906,5907,5911,5912, 5956 Heavy Duty Parallel Arm
• Hollow-metal doors require channel or box-type reinforcement
when thru-bolt mount is specified.
• Hold open arms are not permitted on fire doors.
• Sex-bolts may be required for wood or plastic faced fire door
mounting.
• Minimum thickness recommended for reinforcements in hollow
metal doors and frames: (12GA).
• Dimensions are based on standard doors and frames with 1/8"
clearance, 5/8" stops.
WOOD
Self Drilling Screws
Wood and Metal
WOOD
Self Drilling Screws
Wood and Metal
For wood, drill 3/16" hole
For wood, drill 3/16" hole
Machine Screws
Machine Screws
3/16"
3/16"
#7 Drill, 1/4"- 20 Tap
#7 Drill, 1/4"- 20 Tap
COVER INSERT
CLOSER COVER
CLOSER ARM
(5911 SHOWN)
CLOSER ARM
(5911 SHOWN)
CLOSER COVER
Installation Instructions
I-CL00191 Rev 2
Sleeve Nut and Bolt
Sleeve Nut and Bolt
Drill 9/32" thru from Closer Side
3/8" Drill other Side
Drill 9/32" thru from Closer Side
3/8" Drill other Side
Check building and fire codes to
see if your application requires
Check building and fire codes to
the use of sleeve nuts and bolts.
see if your application requires
the use of sleeve nuts and bolts.
INSERT CUTOUTS
INSERT CUTOUTS
COVER INSERT
CLOSER COVER
SCREW PACK
SCREW PACK
INSERT CUTOUT
SCREW PACK
PINION CAP
Page 1 of 6
Advertisement
Related Manuals for hager 5906
Summary of Contents for hager 5906
- Page 1 5906,5907,5911,5912, 5956 Heavy Duty Parallel Arm Installation Instructions I-CL00191 Rev 2 • Hollow-metal doors require channel or box-type reinforcement An incorrectly installed or when thru-bolt mount is specified. improperly adjusted door closer can cause property damage or • Hold open arms are not permitted on fire doors.
- Page 2 PIVOT 2 3/32" 50.8 FRAME STOP 53.3 and/or rabbet. DOOR 5906 Extra Heavy Duty Hold Open Stop Arm, 5956 Heavy Duty Cushion Stop Arm & 5907 Extra Heavy Duty Stop Arm: 1/2" 5200 CLOSER MOUNTING CHART 3/8" 12.7 Door Opening Door Opening Dim.
- Page 3 5906,5907,5911,5912, 5956 Heavy Duty Parallel Arm Installation Instructions I-CL00191 Rev 2 2. ARM AND CLOSER BODY INSTALLATION • Screw closer body to the door using (4) 1/4-20 x 1 1/2" screws. The speed regulating valves on the closer must face lock stile of door.
-
Page 4: Adjustment Knob
5906,5907,5911,5912, 5956 Heavy Duty Parallel Arm Installation Instructions I-CL00191 Rev 2 5906 EXTRA HEAVY DUTY HOLD OPEN STOP ARM & 5956 EXTRA HEAVY DUTY CUSHION STOP ARM (CUSHION STOP NOT SHOWN) CAN BE MOUNTED TO OPEN UP TO 90 / 100 / 110... - Page 5 5906,5907,5911,5912, 5956 Heavy Duty Parallel Arm Installation Instructions I-CL00191 Rev 2 5911 EXTRA HEAVY DUTY ARM CAN BE MOUNTED TO OPEN UP TO 120 OR UP TO 180 5912 EXTRA EXTRA HEAVY DUTY HOLD OPEN ARM CAN BE MOUNTED TO OPEN...
- Page 6 SWEEP SPEED LATCH SPEED BACKCHECK OPTIONAL DELAY ACTION 5906,5907,5911,5912, 5956 Heavy Duty Parallel Arm Installation Instructions I-CL00191 Rev 2 5300 CLOSER ADJUSTMENTS (USE 5/32" HEX WRENCH FOR THESE ADJUSTMENTS) SWEEP SPEED LATCH SPEED BACKCHECK OPTIONAL DELAY ACTION SWEEP SPEED SWEEP SPEED...
