- Page 1 Presented By Dallas Ft Worth Austin Houston NicolScales.com 800.225.8181 Contact Us Nicol Scales & Measurement is an ISO Accredited Calibration Company that has provided calibration, repair and sales of all types of weighing and measurement products since 1931.

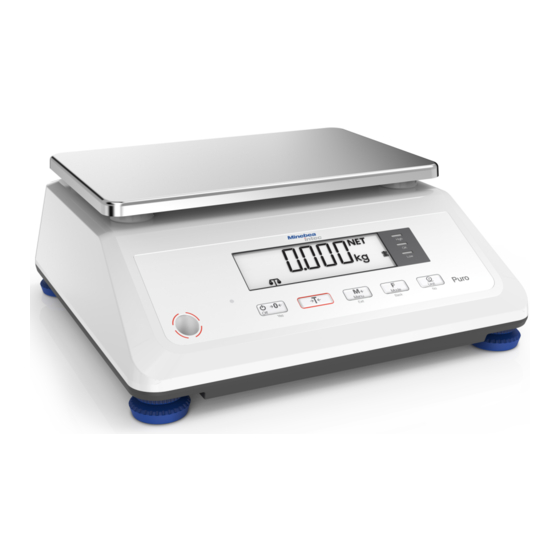

- Page 2 Operating Instructions Compact scale Puro® - Basic 98628-000-61 Edition 1.0.1 6/22/2020 Minebea Intec Bovenden GmbH & Co. KG, Leinetal 2, 37120 Bovenden, Germany Phone: +49.551.309.83.0 Fax: +49.551.309.83.190...
- Page 3 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 4: Table Of Contents
4.1.2 Display elements............................10 4.1.3 Operating elements............................11 4.1.4 Display on the reverse............................12 Operating ............................13 Basic functions ................................13 5.1.1 Switching on the device ..........................13 5.1.2 Switching off the device..........................13 5.1.3 Adjusting the GEO setting..........................13 5.1.4 Increment d..............................13 Minebea Intec EN-1... - Page 5 Instructions for cleaning ..........................39 6.2.2 Cleaning agents..............................39 Waste disposal policy .........................40 Error correction ..........................41 Service information ..............................42 Technical data ............................ 43 Specification ................................43 Accessories ................................44 Dimensions ................................45 Appendix ............................55 10.1 Printouts ..................................55 10.2 FCC notice ..................................55 EN-2 Minebea Intec...
-
Page 6: Introduction
WARNING indicates that death or severe, irreversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. CAUTION Warning of personal injury. CAUTION indicates that minor, reversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Minebea Intec EN-3... - Page 7 Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. EN-4 Minebea Intec...
-
Page 8: Safety Instructions
If there are grounds for rejection of the goods, a claim must be filed with the carrier immediately. A Minebea Intec sales or service organization must also be notified. Visit our website http://www.puroscales.com or contact your dealer. -
Page 9: Storage And Transport Conditions
Do not unnecessarily subject the device to extreme temperatures, corrosive chemical vapors, moisture, shocks, and vibrations. Extreme electromagnetic influences can affect the display value. Once the disturbance has ceased, the product can be used again as intended. EN-6 Minebea Intec... -
Page 10: Device Installation
Keep the original packaging in case the device needs to be returned. Remove all cables before sending. 3.1.4 Checking the equipment supplied 1 scale 1 load plate 1 USB power supply with cable Safety instructions and QR code for access to the complete documentation Minebea Intec EN-7... -
Page 11: Leveling The Weighing Platform
The scale can be used during the charging process; the battery is protected against excess charging. When the device is switched on, the battery status LED illuminates in red while the battery is charging, and it goes green when the battery is fully charged. EN-8 Minebea Intec... -
Page 12: Connecting A Printer
The battery may only be replaced with the same type by an authorized Puro® service dealer. The battery must be disposed of according to the locally valid laws and regulations. 3.2.2 Connecting a printer A printer can be connected via the printer port on the underside of the device. Minebea Intec EN-9... -
Page 13: Device Description
Item Description Busy Scale tares automatically Plus sign Active data transmission Minus sign Selected weight unit 1/4 d range around zero Battery charging Weighing application active Printer icon Totalizing application active Tare active, tare value is displayed EN-10 Minebea Intec... -
Page 14: Operating Elements
Secondary Menu Mode Unit Function (Extended press) > Switch off the Delete function Accessing the Changing the weight 2 seconds scale for totalizing. menu unit. Menu function Exit Back (Confirm) (Reject) Minebea Intec EN-11... -
Page 15: Display On The Reverse
Increase digit value. 4.1.4 Display on the reverse The LargeTall (LT) and SmallTall (ST) models have an additional display on the reverse, which displays the same elements as the display on the front. (See Chapter 4.1.2). EN-12 Minebea Intec... -
Page 16: Operating
Example d = 0.02 g → 2 d = 0.04 g → 3 d = 0.06 g 5.1.5 Select application program The Totalizing, Automatic Tare, and Automatic Printing applications can be activated in the menu. [OP.FUNC] [A.TARE] Automatic tare [TOT.SET] Totalizing [PRINT] [A.PRINT] Automatic printout Minebea Intec EN-13... -
Page 17: Application Programs
The weight of the sample is displayed with the unit symbol (here [kg]). 5.2.1.1 Set tare Place the empty container on the load plate. The tare weight of the container is displayed: Press the (Tare) key to save the tare weight. [0.000 kg] and [NET] (net value) is displayed: EN-14 Minebea Intec... - Page 18 (unit) key. See Chapter 5.3.2.3. Unit 5.2.1.3 Stable weight value A stable weight value is displayed with the unit symbols (e.g. [kg]). Stable weight value: A non-stable weight value is displayed without the unit symbols. Non-stable weight value: Minebea Intec EN-15...
-
Page 19: Totalizing Application And Statistics Mode
The first menu item [APPLIC] (application) is shown in the display. 2. Press the (No) key in order to access the next menu item, or press the Unit Mode to access the previous menu item. 3. Repeat until [OP.FUNC] (operating function) is shown in the display. EN-16 Minebea Intec... - Page 20 (manual mode). Menu The weight value is automatically added to the totalized data as soon as the measured value is stable (automatic mode). icon flashes until the weight is removed. 3. Empty the load plate. Minebea Intec EN-17...
- Page 21 Empty the load plate. 2. Press the key in order to display the saved totalized data. Menu The statistics information is displayed in the display in the following order: Number of weighings carried out (N = 7): EN-18 Minebea Intec...
- Page 22 Minimum value (min = 0.470 kg): Maximum value (max = 1.485 kg) Deleting the totalizing memory: 3. Press and hold the key while there is no load on the load plate and the totalized data are displayed. The message [CLR.TOT] is displayed. Minebea Intec EN-19...
-
Page 23: Menu
If appropriate interface options are installed, additional sub-menus may be available. Information on this can be found in the manual for the interface used. 5.3.1 Accessing the menu Press and hold the key until [M.E.N.U] is displayed. Menu Release the key. EN-20 Minebea Intec... - Page 24 (Yes) key in order to return to the options from the sub-menu. 6. Press the (No) key to return to the first item in the current menu. Unit 7. Press the key to exit the menu. Menu Minebea Intec EN-21...
-
Page 25: Menu Navigation
— LOW Lower accuracy, short stabilization time — MED Normal accuracy, average stabilization time* — HI High accuracy, long stabilization time — A.ZERO.T Automatic zero point correction — OFF Switching off — 0.5d Drift up to 1/2 d* EN-22 Minebea Intec... - Page 26 [OP.FUNC] menu selection The scale parameters can be specified in this menu. Factory settings are marked with "*" OP.FUNC — ZERO.R Zero range — 2% 2% max. load — 10% 10% max. load* — A.TARE Automatic tare Minebea Intec EN-23...
- Page 27 Factory settings are marked with "*" PRINT — STABLE Print criteria — OFF Values are printed immediately — ON Values are only printed if they are stable* — A.PRINT Automatic printout — OFF deactivated* — ON.STAB printing on stability EN-24 Minebea Intec...
- Page 28 — RESET Factory settings — NO not reset* — YES activated — END Exit menu level 5.3.2.6 [PRN.COM] menu selection The parameters for the print communication can be specified in this menu. Factory settings are marked with "*" Minebea Intec EN-25...
- Page 29 — YES activated — END Exit menu level 5.3.2.8 [PC.COM] menu selection The parameters for the PC communication can be specified in this menu. Factory settings are marked with "*" PC.COM — BAUD Baud rate EN-26 Minebea Intec...
- Page 30 The safety setting (lock) for menu access can be defined via this menu in order to prevent unauthorized interventions. Factory settings are marked with "*" SECURE — S.APPLI Application menu — OFF Unlock* — ON Locked — S.UNIT Unit menu Minebea Intec EN-27...
-
Page 31: Calibration And Adjustment
(GEO). (Settings from 0 … 31, default value = 12) — END Exit menu level 5.4.1 [CAL] calibration Call up the menu mode: Press and hold until [M.E.N.U] is displayed. Menu EN-28 Minebea Intec... - Page 32 (Yes) key to start a calibration. [0 kg] is shown. [0] flashes. 6. Empty the load plate. 7. Press the (Yes) key to start the zero point adjustment. [--C--] is displayed while the zero value is being saved. Minebea Intec EN-29...
- Page 33 The value of the calibration weight is displayed using flashing digits in the display: [00100.0] (in this example 100.0 kg) 12. If the value of the calibration weight is correct, place the specified weight on the load plate. 13. Press the (Yes) key to adopt the second calibration point. EN-30 Minebea Intec...
-
Page 34: Lin] Linearization
The first menu item [APPLIC] (application) is shown in the display. 2. Press the key in order to access the next menu item, or press the key to Unit Mode access the previous menu item. 3. Repeat until [CAL.ADJ] is shown in the display. Minebea Intec EN-31... - Page 35 9. Place the 1 linearization weight on the load plate. 10. Press the (Yes) key to start the linearization at 50% of the capacity of the scale. [--C--] is displayed while the value is being saved. EN-32 Minebea Intec...
- Page 36 In the display, the value of the linearization weight at 100% of the capacity of the scale is displayed [00150.0] (in this example 150 kg). If an error occurs during the linearization, [CALE] (calibration error) is displayed and the process is canceled. 13. Remove the weight. The scale is ready for operation. Minebea Intec EN-33...
-
Page 37: Geo] Geographic Data (Calibration Location)
6. Change the menu item until [GEO] (Geo selection) is displayed. 7. Press the (Yes) key to start the GEO selection. The GEO value [12] set by default flashes in the display. EN-34 Minebea Intec... -
Page 38: Geo Code Table
1,060 2,130 3,200 4,260 5,330 6,400 7,460 8,530 9,600 10,660 11,730 Latitude GEO value 0°00' 5°46' 5°46' 9°52' 9°52' 12°44' 12°44' 15°06' 15°06' 17°10' 17°10' 19°02' 19°02' 20°45' 20°45' 22°22' 22°22' 23°54' 23°54' 25°21' 25°21' 26°45' 26°45' 28°06' 28°06' 29°25' Minebea Intec EN-35... - Page 39 42°19' 42°19' 43°26' 43°26' 44°32' 44°32' 45°38' 45°38' 46°45' 46°45' 47°51' 47°51' 48°58' 48°58' 50°16' 50°16' 51°13' 51°13' 52°22' 52°22' 53°31' 53°31' 54°41' 54°41' 55°52' 55°52' 57°04' 57°04' 58°17' 58°17' 59°32' 58°17' 59°32' 60°49' 62°90' 62°90' 63°30' EN-36 Minebea Intec...
-
Page 40: Sbi Interface
ESC. Reading the displayed value: Response (16 bytes): Algebraic sign Possible characters: "+", "–", " " Weight value Possible characters: "0"..."9", ". ", " " Unit Possible characters: "a"..."z", "A"..."Z", " " Carriage return ASCII 0x0D Minebea Intec EN-37... - Page 41 Special response telegrams are always 5 bytes. OK (confirmed) The scale confirms error-free performance of the command. ERROR (error) The scale reports an error when performing the command. LOCKED (locked) The command cannot be performed because a parameter is currently blocked. EN-38 Minebea Intec...
-
Page 42: Maintenance/Repairs/Cleaning
Defective or damaged cables or screw connections must be replaced as a complete unit. WARNING Improper repairs can pose considerable risks to the user. Only have repairs carried out by Minebea Intec qualified dealers using original spare parts. Cleaning 6.2.1 Instructions for cleaning The device must be cleaned of contaminants on a regular basis. -
Page 43: Waste Disposal Policy
Before disposing of or scrapping the product, any batteries should be removed and taken to a suitable collection point. Please see our T&Cs for further information. We reserve the right not to accept products that have been contaminated with hazardous substances (ABC contamination) for repair. EN-40 Minebea Intec... -
Page 44: Error Correction
8 Error correction Compact scale Puro® - Basic Error correction The table lists frequent problems, as well as possible causes and corrective measures. If the problem persists, inform Minebea Intec or an authorized dealer. Symptom Possible cause Corrective measure Switching on not... -
Page 45: Service Information
8 Error correction Service information Contact the authorized service partners if a problem cannot be rectified with the aid of the troubleshooting information or is not described there. Our website http://www.puroscales.com provides information about your closest service partner. EN-42 Minebea Intec... -
Page 46: Technical Data
USB-C, printer port, RS-232 installed Interface USB-C, printer port installed Operating temperature (°C) -10 ... +40 Storage temperature (°C) -10 ... +50 Product dimensions in mm 310 x 302 x 115 mm (W x D x H) Minebea Intec EN-43... -
Page 47: Accessories
Data printer, USB-C cable (cannot be used for PC communicati- on), printer connection cable, weighing hooks, lithium battery Accessories Option Order no. Data printer YP-DP1 Paper for data printer YP-P1 USB-C cable YP-CAC1 (cannot be used for PC communication) Printer cable YP-CAS1 USB charging device YP-PS1 EN-44 Minebea Intec... -
Page 48: Dimensions
9 Technical data Compact scale Puro® - Basic Option Order no. Weighing hooks YP-H1 Dimensions LargeTall (LT) Minebea Intec EN-45... - Page 49 Compact scale Puro® - Basic 9 Technical data All dimensions in mm / inch All dimensions in mm / inch EN-46 Minebea Intec...
- Page 50 9 Technical data Compact scale Puro® - Basic All dimensions in mm / inch LargeFlat (LF) Minebea Intec EN-47...
- Page 51 Compact scale Puro® - Basic 9 Technical data All dimensions in mm / inch All dimensions in mm / inch EN-48 Minebea Intec...
- Page 52 9 Technical data Compact scale Puro® - Basic All dimensions in mm / inch Minebea Intec EN-49...
- Page 53 Compact scale Puro® - Basic 9 Technical data SmallTall (ST) EN-50 Minebea Intec...
- Page 54 9 Technical data Compact scale Puro® - Basic All dimensions in mm / inch All dimensions in mm / inch Minebea Intec EN-51...
- Page 55 Compact scale Puro® - Basic 9 Technical data All dimensions in mm / inch SmallFlat (SF) All dimensions in mm / inch EN-52 Minebea Intec...
- Page 56 9 Technical data Compact scale Puro® - Basic All dimensions in mm / inch All dimensions in mm / inch Minebea Intec EN-53...
- Page 57 Compact scale Puro® - Basic 9 Technical data All dimensions in mm / inch EN-54 Minebea Intec...
-
Page 58: 10 Appendix
Realignment or repositioning of the reception antenna Increasing the distance between the device and the receiver Connecting the device and the receiver to separate electric circuits Call in the dealer or an experienced radio/television technician Minebea Intec EN-55... - Page 59 Published by Minebea Intec Bovenden GmbH & Co. KG | Leinetal 2 | 37120 Bovenden, Germany Phone: +49.551.309.83.0 | Email: info@minebea-intec.com www.minebea-intec.com...
