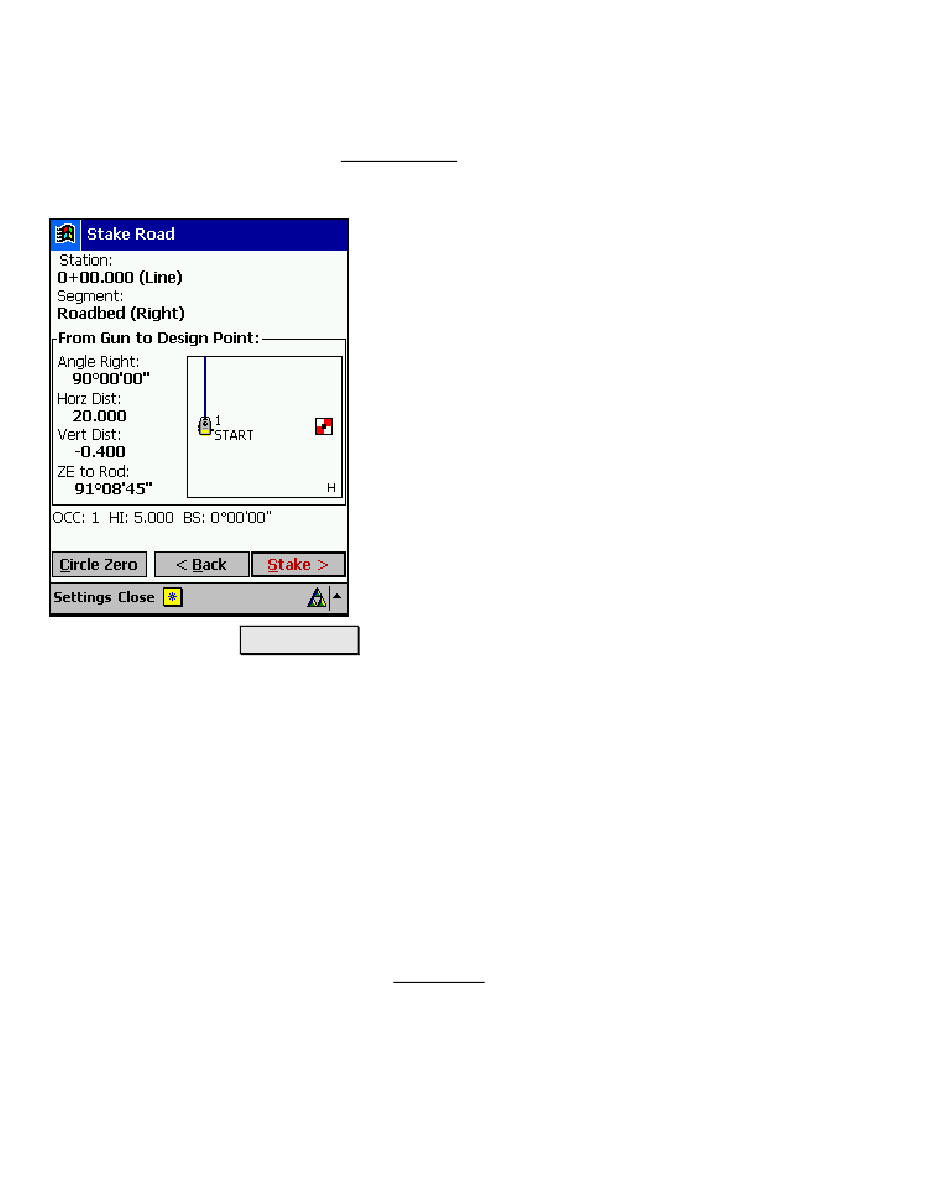

Stake Road – Screen Three
The third Stake Road screen displays distance, direction, and other
information about the point to be staked.
Station: displays the station where the stake point occurs
and the type of line segment it falls on in the alignment.
Segment: displays the name of the segment tangent to
the point to be staked; if the point is on the Left or Right
side of the road; and the specified offset, if any.
Angle Right: is the horizontal angle from the backsight
to the stake point.
Horz Dist: is the horizontal distance from the total
station to the stake point.
Vert Dist: is the vertical distance from the total station to
the stake point.
ZE to Rod: is the zenith angle from the total station to
the stake point.
&LUFOH =HUR
: is used to modify the circle on the total station so that
the angle right reading will be zero when it is facing toward the
design point, which can sometimes be easier than turning to an
obscure angle value. When this button is tapped, the following
actions will occur:
1. A new backsight circle value is computed, sent to the instrument
and stored in the raw data
2. The Angle Right value is changed to zero to reflect the change. The
instrument now needs to be turned horizontally to zero to face the
design point.
3. To prevent errors, the backsight set up is invalidated when
exiting the Stakeout dialog if this button has been used. A Circle
zeroed on a design point is meaningless once the design point has
been staked.
