Straight Grade

&XUYH 6WUDLJKW *UDGH

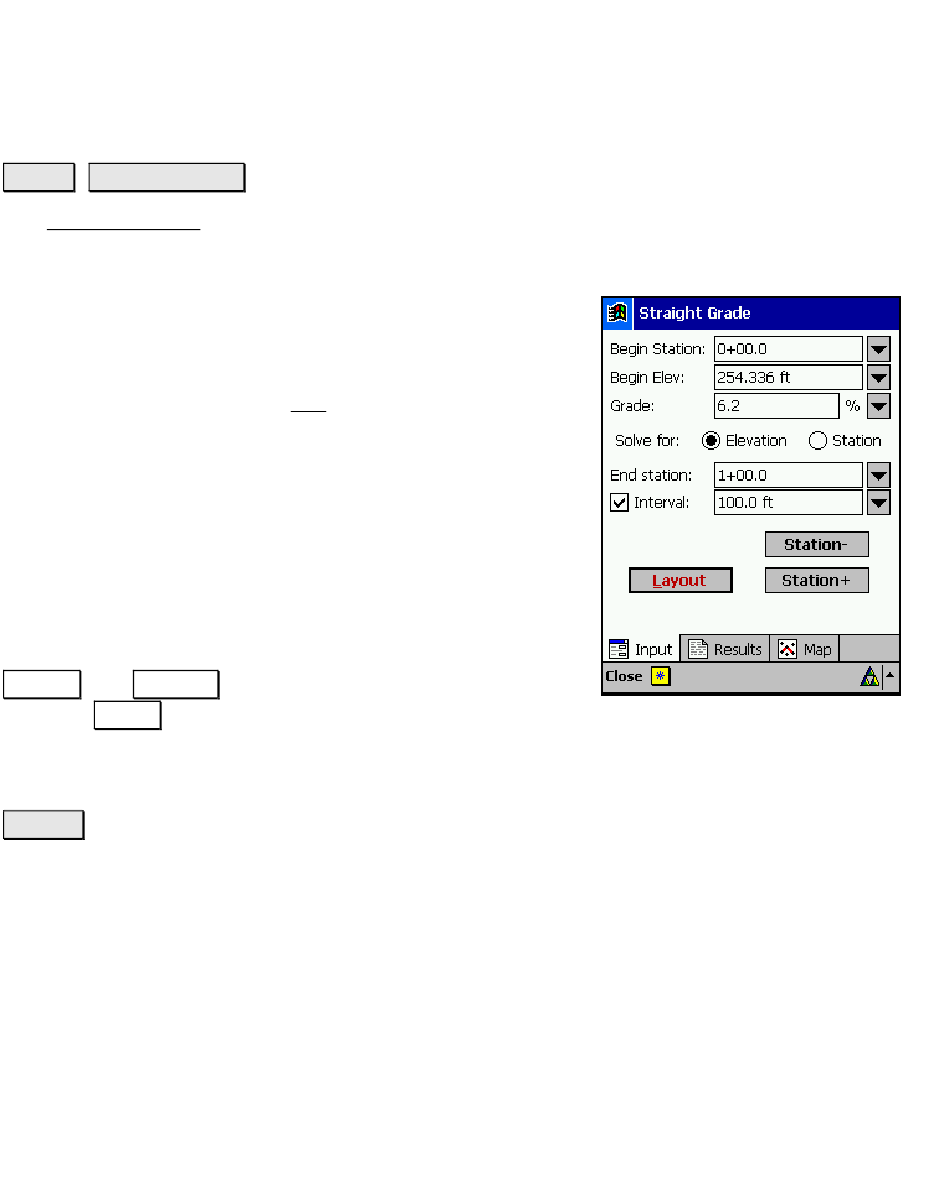

The Straight Grade screen will solve for the elevation at a specified
station or a station at a specified elevation on a straight grade.
Begin Station: is the station where the straight grade
begins.
Begin Elev: is the elevation at the Begin station.
Grade: is the percent slope (
Solve for: is where you select to solve for an Elevation or
a Station. The choice made here determines which of the
following selections are available.
End station: is the station where you want to compute
the elevation.
Interval: When checked, the End station can be
incremented by the specified interval by using the
6WDWLRQ 6WDWLRQ
and
/D\RXW
with the button.
End Elevation: is the elevation at the point where you want to
compute the station.
/D\RXW
: performs the computation and displays the results.
Results
Station: is the current station.
Elevation: is the elevation for the current station.
R-202
Rise
⋅
).
100
Run
buttons and then re-computed
