Survey Pro Reference Manual

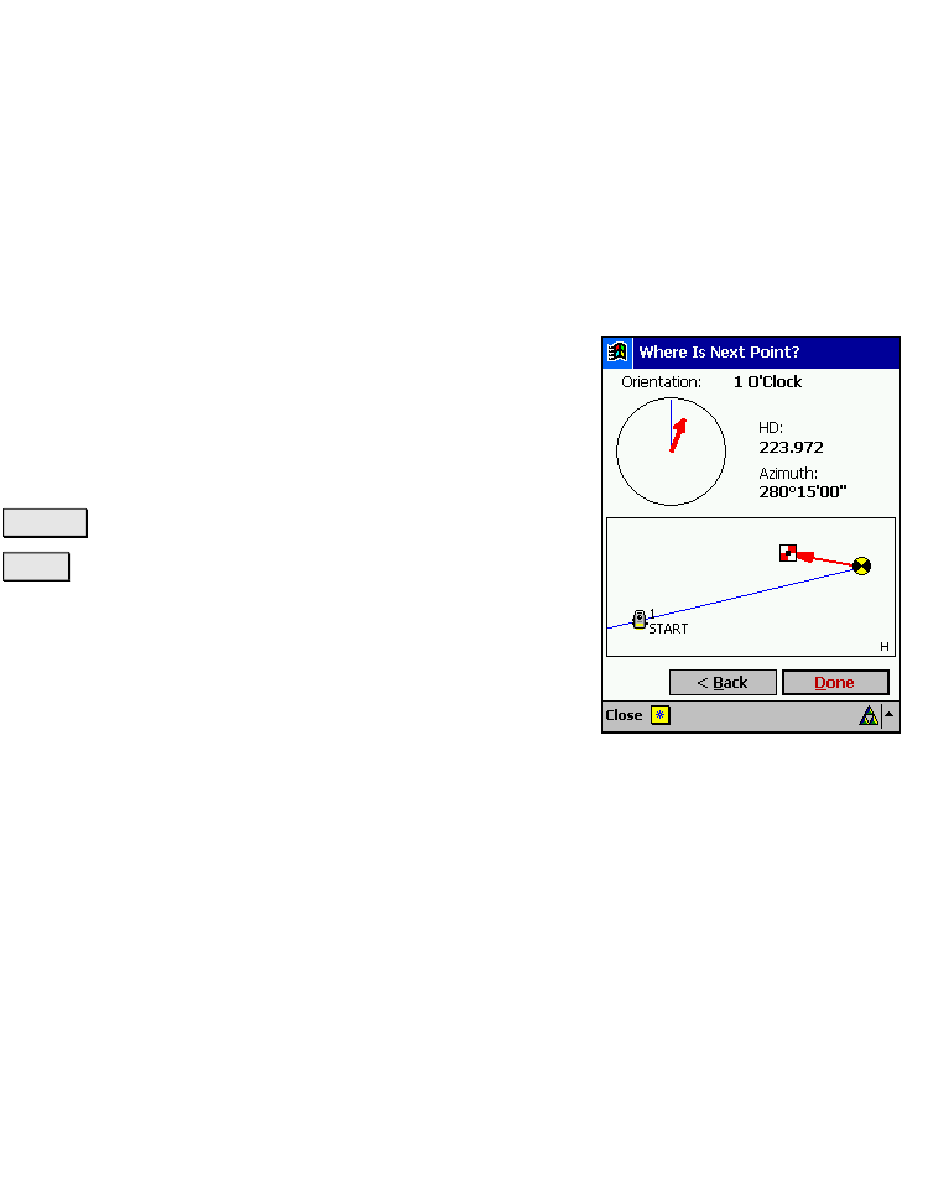

Where is Next Point – Screen Two
This screen shows two graphics that indicate the direction and
distance that the rod person must travel to reach the Next FS Point.
The clock-style graphic shows the current rod location at the center, a
line in the 12 o'clock position indicates the direction to the Reference,
and an arrow shows the direction to the Next FS Point. There is also a
text indicator that explains the direction to travel in a clock format.
The second graphic is a map view that shows the Current
Rod Point, the Reference and the Next FS Point. It also
shows the Occupy Point if the backsight has been set.
The lower left portion of the screen displays the azimuth
from the rod to the Next FS Point and the horizontal
distance between them.
%DFN
: returns you to the first screen.
'RQH
: closes the screen.
R-158
