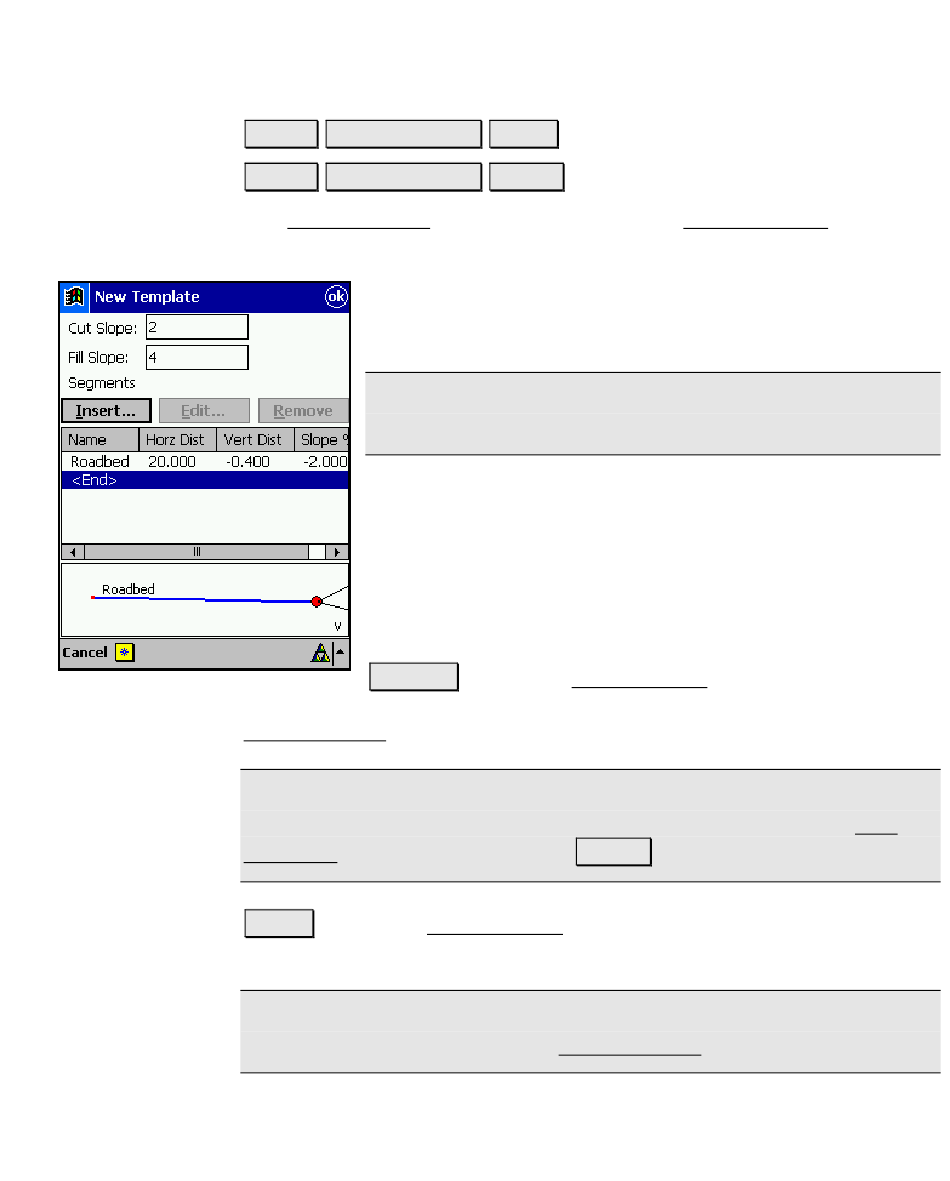

The Edit Template screen is identical to the New Template screen
and is used to create a new template or edit an existing one.
All of the segments of the current template are listed in
the screen. The list shows the name of each segment, the
horizontal and vertical offsets (lengths), and the slope.
Note: The length of the first segment must be greater
than zero.
Cut Slope: is the slope that will be used when locating
the catch point in a situation where the existing terrain
is above the level of the hinge point.
Fill Slope: is the slope that will be used when locating
the catch point in a situation where the existing terrain
is below the level of the hinge point.
,QVHUW«
segment will be added prior to (above) the segment selected in the
Edit Template screen.
Note: To add a segment to the end of all existing segments (furthest
away from the centerline), be sure <End> is selected from the Edit
Template screen prior to tapping
(GLW«
: opens the Edit Segment screen where the details of the
selected segment can be edited.
Note: The selected segment is shown with a thicker line in the map
view in the lower portion of the Edit Template screen.
(GLW«
or
1HZ«
: opens the Edit Segment screen where a new
,QVHUW«
