OPERATION AND CONNECTION:

1. Connect one HDMI cable from the HDMI source device (set top box,
DVD player, streaming device) into the HDMI input port of the HDMI
wireless TX.
2. Connect one HDMI cable from TV/Monitor into the HDMI output port
of the HDMI wireless RX.
3. Connect the IR Transmitter cable to the HDMI wireless TX's IR Out
Port and the IR Transmitter cable must face the source device's
infrared eye/sensor.
4. Connect IR Receiver cable to the HDMI wireless RX's IR In Port.
5. Connect 12V power supplies to the TX & RX, the POWER indicator
will be illuminated when done successfully.
6. The extenders will automatically pair after being powered on. The
STATUS indicator of TX and RX will be illuminated when the
connection is successful. If the HDMI input or output signal is normal,
the HDMI indicator light will also be illuminated. The STATUS
indicator flashes continuously during normal transmission.
7. If you are using multiple receivers, all receivers will be connected
in the same way.
Local monitor
POWER STATUS HDMI
RESET CHANNEL

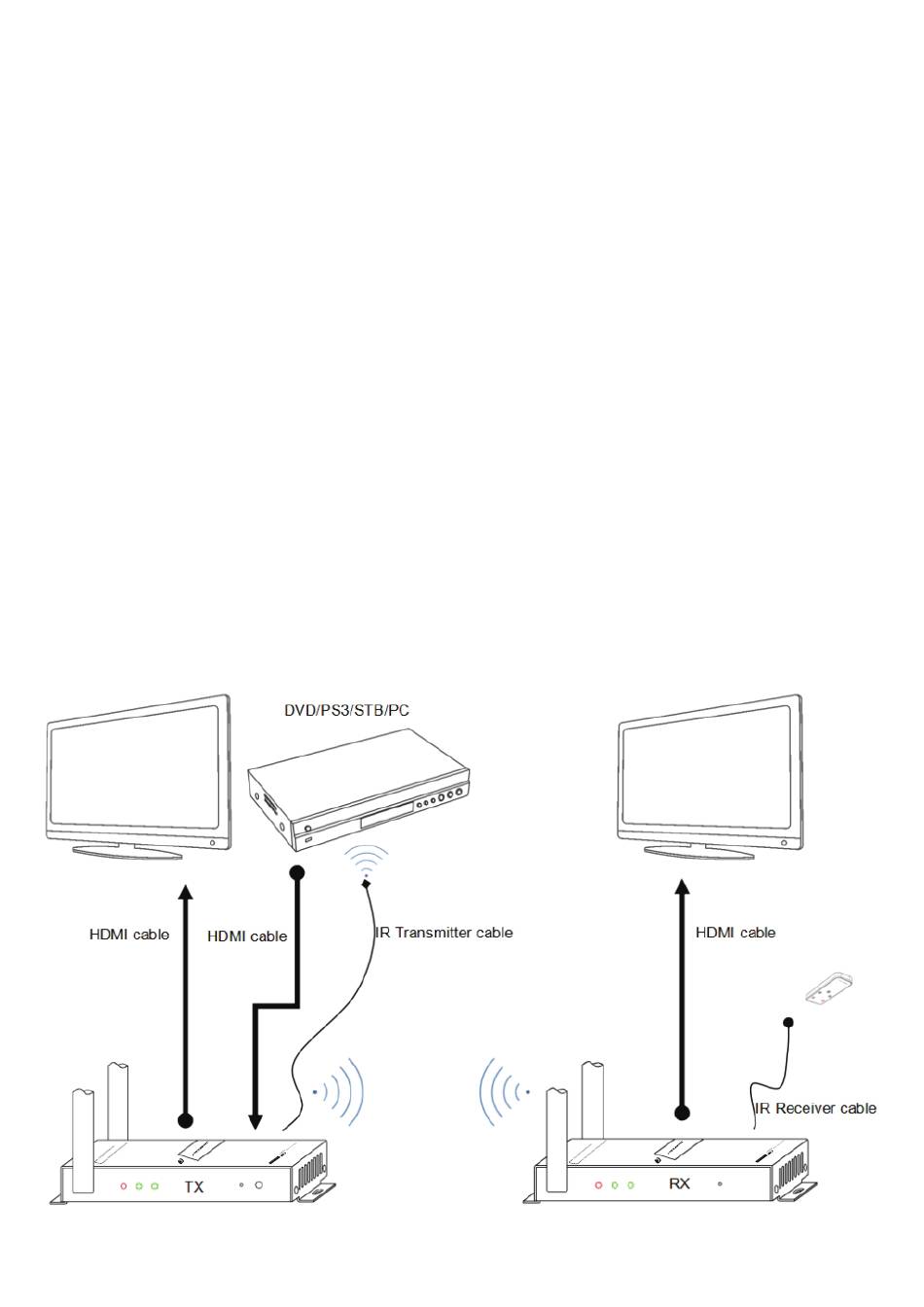

FIG.5 CONNECTION DIAGRAM
HDTV Monitor/Projector
POWER STATUS HDMI
5
RESET
