POWER : Power indicator
STATUS: System status indicator
HDMI: HDMI input/output status indicator
RESET : Factory Reset Button
Wireless channel switch button
CHANNEL:
DC12V : 12V DC in jack
IR OUT : Port for IR transmitter cable
HDMI IN: HDMI input port
HDMI OUT : HDMI loop output port
Receiver (RX)
Power indicator
POWER:
STATUS: System status indicator
HDMI: HDMI input/output status indicator
RESET : Factory Reset Button
DC12V : 12V DC in jack
IR IN: Port for IR receiver cable
HDMI OUT : HDMI output port

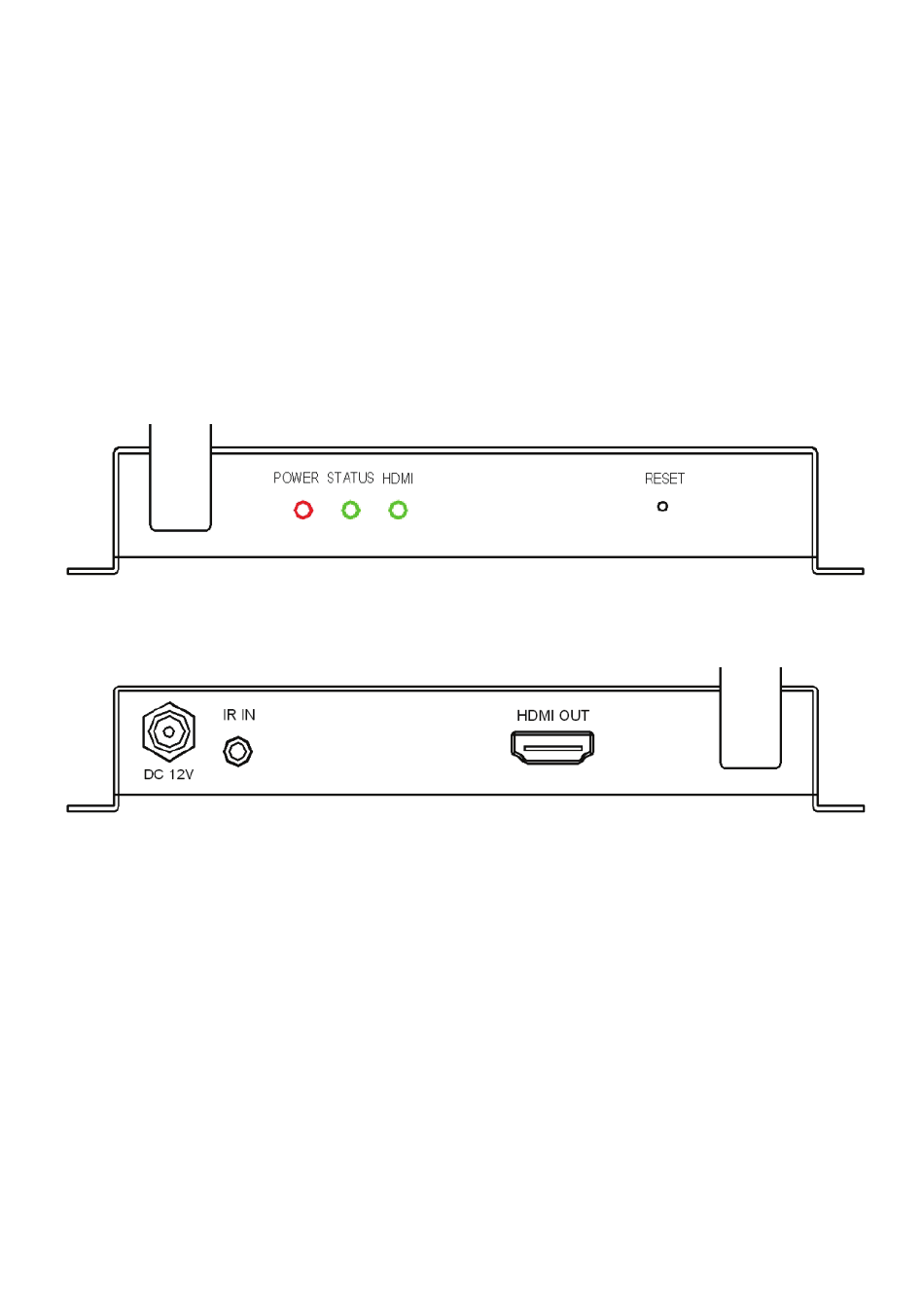

FIG.3 RX Front Panel View
FIG.4 RX Rear Panel View
4
