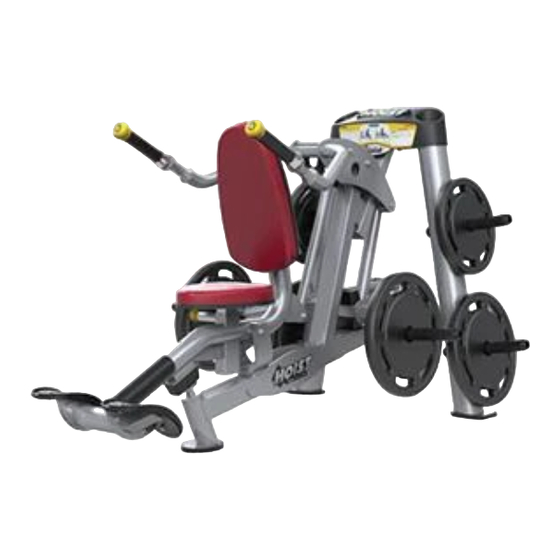

PLATE LOADED SEATED DIP
TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE
EXERCISE FLOOR USING MINIMUM 4-1/2" LONG BOLTS. FAILURE
TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.
Note: Both Serial Number and Model Number are Required when Ordering Parts
Note: Both Serial Number and Model Number are Required when Ordering Parts
Note: Both Serial Number and Model Number are Required when Ordering Parts
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
RECORD SERIAL NUMBER HERE
RECORD SERIAL NUMBER HERE
RECORD SERIAL NUMBER HERE
MACHINE CODE
MACHINE CODE
MACHINE CODE
MACHINE CODE
B04
B04
B04
B04
RPL-5101-A
**WARNING!**
Customer Service
Customer Service
Customer Service
Customer Service
(800) 548-5438
(800) 548-5438
(800) 548-5438
(800) 548-5438
(858) 578-7676
(858) 578-7676
(858) 578-7676
(858) 578-7676
Fax
Fax
Fax
Fax
(858) 578-9558
(858) 578-9558
(858) 578-9558
(858) 578-9558
Advertisement
Table of Contents
Related Manuals for Hoist Fitness ROC-IT RPL-5101-A
Summary of Contents for Hoist Fitness ROC-IT RPL-5101-A

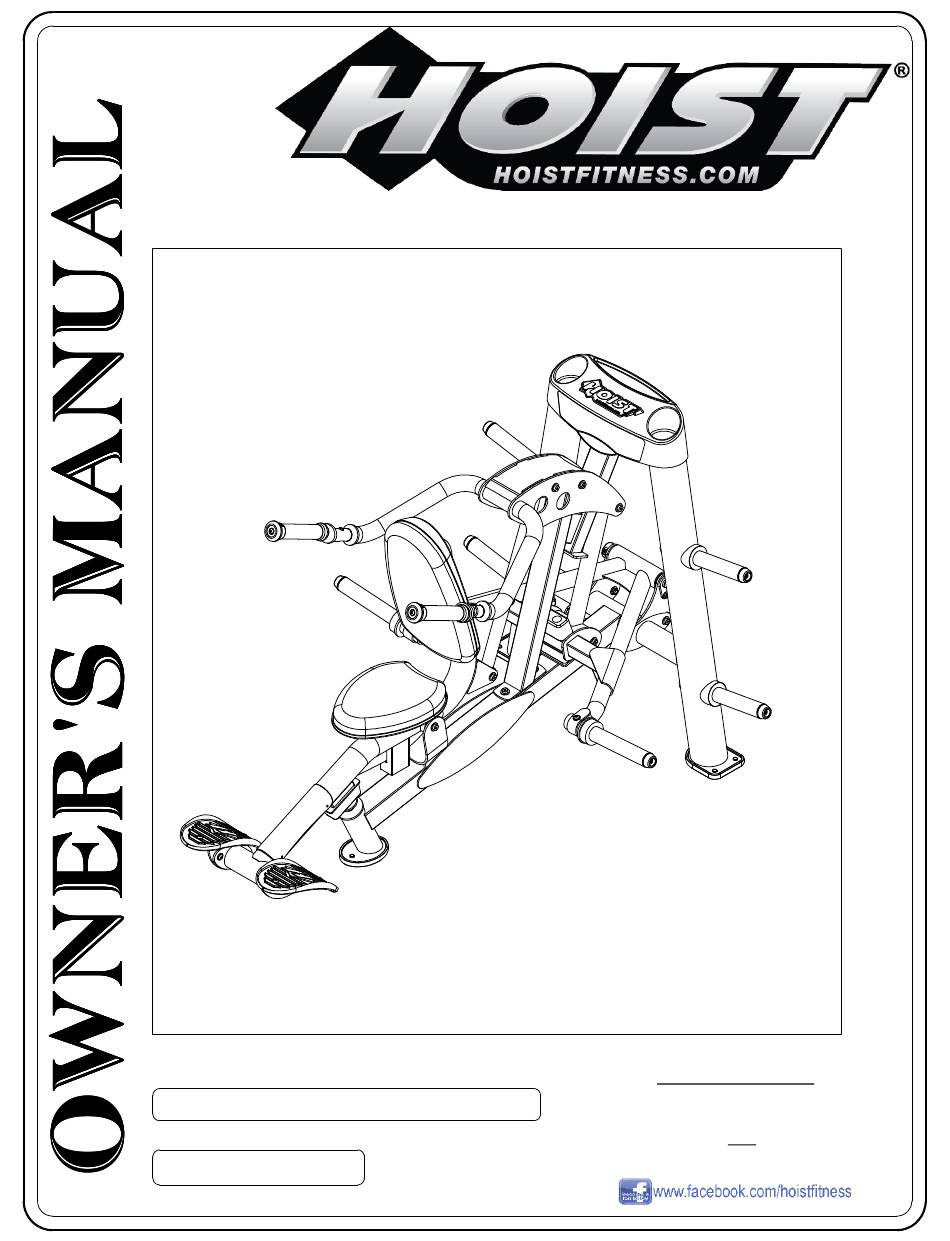

- Page 1 RPL-5101-A PLATE LOADED SEATED DIP **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR USING MINIMUM 4-1/2" LONG BOLTS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts Note: Both Serial Number and Model Number are Required when Ordering Parts Note: Both Serial Number and Model Number are Required when Ordering Parts Note: Both Serial Number and Model Number are Required when Ordering Parts...
-
Page 2: Table Of Contents
OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. MACHINE ADJUSTMENT............PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............RPL-5101-A ASSEMBLY PAGE 01... -
Page 3: Instructions
OWNER'S MANUAL INSTRUCTIONS Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only HOIST replacement parts when servicing. - Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** RPL-5101-A ASSEMBLY PAGE 03...
-
Page 5: Frame Assembly
OWNER'S MANUAL FRAME ASSEMBLY PAGE 04 RPL-5101-A ASSEMBLY... - Page 6 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. RPL-5101-A ASSEMBLY PAGE 05...
- Page 7 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. PAGE 06 RPL-5101-A ASSEMBLY...
- Page 8 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RPL-5101-A ASSEMBLY PAGE 07...
- Page 9 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 08 RPL-5101-A ASSEMBLY...
- Page 10 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RPL-5101-A ASSEMBLY PAGE 09...
- Page 11 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 10 RPL-5101-A ASSEMBLY...
- Page 12 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RPL-5101-A ASSEMBLY PAGE 11...
- Page 13 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. REPEAT ASSEMBLY FOR OPPOSITE SIDE. PAGE 12 RPL-5101-A ASSEMBLY...
- Page 14 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RPL-5101-A ASSEMBLY PAGE 13...
- Page 15 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 14 RPL-5101-A ASSEMBLY...
- Page 16 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - REPEAT ASSEMBLY FOR OPPOSITE SIDE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RPL-5101-A ASSEMBLY PAGE 15...
- Page 17 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. *IMPORTANT* NOW THAT THE RPL-5101-A IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF NOT, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
-
Page 18: Machine Adjustment
OWNER'S MANUAL MACHINE ADJUSTMENT MAJOR ADJUSTMENT: ADJUST HEIGHT OF LIMITING STOP ASSEMBLY (10) SO THAT IT IS IN CONTACT WITH THE DUAL HOLE BUMPER (53), AS SHOWN IN DETAIL A. ONCE LIMITING STOP IS PROPERLY ADJUSTED, WRENCH TIGHTENJAM NUT (23). BE SURE THE BOTTOM DUAL HOLE BUMPER (53) OF THE LIFT ARM ASSEMBLY REMAINS IN CONTACT WITH BASE FRAME ASSEMBLY (14), AS SHOWN IN... -
Page 19: Pre-Assembly
OWNER'S MANUAL PRE-ASSEMBLY PAGE 18 RPL-5101-A ASSEMBLY... -
Page 20: Decal Placement
OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. DETAIL A RPL-5101-A ASSEMBLY PAGE 19... -
Page 21: Decal Reference
OWNER'S MANUAL DECAL REFERENCE 021-0003334 021-0018022 021-0003230 021-0003544 021-0003008 021-0003135 PAGE 20 RPL-5101-A ASSEMBLY... - Page 22 OWNER'S MANUAL DECAL REFERENCE CONTINUED 021-0003427 021-0003341 021-0003093 021-0003113 021-0003417 021-0003416 SERIAL # DECAL 021-0003320 021-0003687 RPL-5101-A ASSEMBLY PAGE 21...
- Page 23 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 22 RPL-5101-A ASSEMBLY...
-
Page 24: Part List
OWNER'S MANUAL PART LIST NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01PL2236 TOP CAP W/INSERTS 026-01X3294 REAR UPRIGHT LEFT ASSEMBLY 026-01X3377 REAR UPRIGHT RIGHT ASSEMBLY 026-01PL2124 FOOTPLATE, MOLDED 026-01X2447 HANDLE ASSEMBLY 026-01X2600 SEAT ASSEMBLY 026-01X2849 RACHET PULL-PIN ASSEMBLY 026-01X2975... - Page 25 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01M2659 SHAFT - 20mm X .52" ID X 4.71 LG. 026-01M2737 SHAFT 026-01P2929 BACK BRACKET MOUNT 026-01PL2551 PLASTIC SEAT SLEEVE 3mm 026-01PL0264 WEIGHT HORN RUBBER DONUT 026-01PL2122...
- Page 26 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 012-0504005 3/8"-16 UNC THIN NYLOCK NUT (Ni) 012-0504002 1/2"-13 UNC THIN NYLOCK NUT (Ni) 021-0003008 DECAL COMMERCIAL MAINTENANCE 1.50 X 6.69 021-0003093 DECAL MOVING PARTS 1.20"...
-
Page 27: Abbreviations
OWNER'S MANUAL ABBREVIATIONS BZ = Black Zinc Ni = Nickel Plated SS = Stainless Steel WZ = White Zinc HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw... -
Page 28: Bolt Sizing Chart
OWNER'S MANUAL BOLT SIZING CHART 1/4" HHB 5/16" HHB 3/8" HHB 1/2" HHB RECOMMENDED RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 6-8 ft-lbs 14-17 ft-lbs 24-30 ft-lbs 60-75 ft-lbs 3/8" BHCS 1/4" BHCS 5/16" BHCS 1/2" BHCS RECOMMENDED RECOMMENDED RECOMMENDED... -
Page 29: Washer Sizing Chart
OWNER'S MANUAL WASHER SIZING CHART 013-0102026 013-0102004 013-0002004 013-0402005 013-0102003 013-0002003 1/2" 1/4" 5/16" 3/8" 3/8" 1/2" FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER LARGE, USS, 34mm SMALL, SAE, 13mm LARGE, USS, 22mm SMALL, SAE, 21mm LARGE, USS, 25mm SMALL, SAE, 27mm 013-0402007... - Page 30 OWNER'S MANUAL WASHER SIZING CHART (CONTINUED) 026-01M0211 026-01M0760 026-01M0198 1/4" LONG 1/2" LONG HEAVY 1/2" LONG FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M211T 026-01M0532 026-01M0551 1/4" LONG HEAVY 11/16" LONG HEAVY 1" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0780 026-01M0788 026-01M0761...
-
Page 31: Maintenance Schedule
OWNER'S MANUAL MAINTENANCE SCHEDULE COMMERCIAL / HOME ROUTINE LATEST DATE ENTRY LIGHT COMMERCIAL MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; WEEKLY DAILY Upholstery Inspect; Cables or Belts and their WEEKLY DAILY tension Inspect;... -
Page 32: General Maintenance Information
OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. -
Page 33: Weight Training Tips
OWNER'S MANUAL WEIGHT TRAINING TIPS Use this manual to guide you through the basic exercises you can perform on your RPL-5101-A HOIST® Fitness System. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. -
Page 34: Exercise Log
OWNER'S MANUAL PAGE 33 RPL-5101-A ASSEMBLY... -
Page 35: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
