IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Hex Wrench
1 pc.
Cartons 20 05507 0401 and 0402 are also needed assembly.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05507 0403

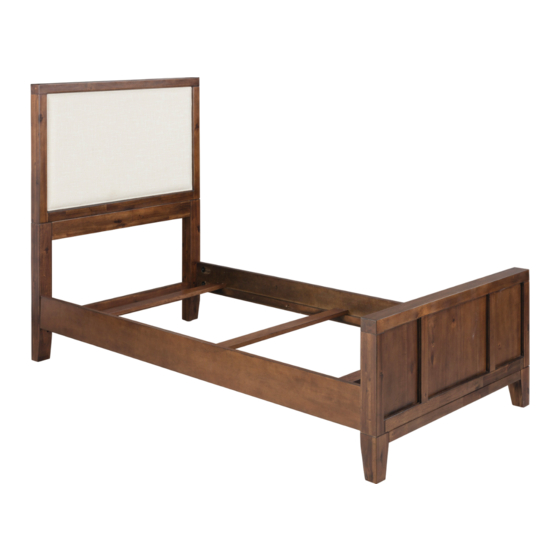

Twin Bed Rails
H.
Side Panel
2 pcs.
Small Hex Wrench
1 pc.
M8x60
Shaped Washer
Head Cap Bolt
8 pcs. (+1 extra)
8 pcs. (+1 extra)
888-680-7460, 877-831-0319
I.
Stretcher
3 pcs.
M4x30
Wood Screw (long)
12 pcs. (+1 extra)
